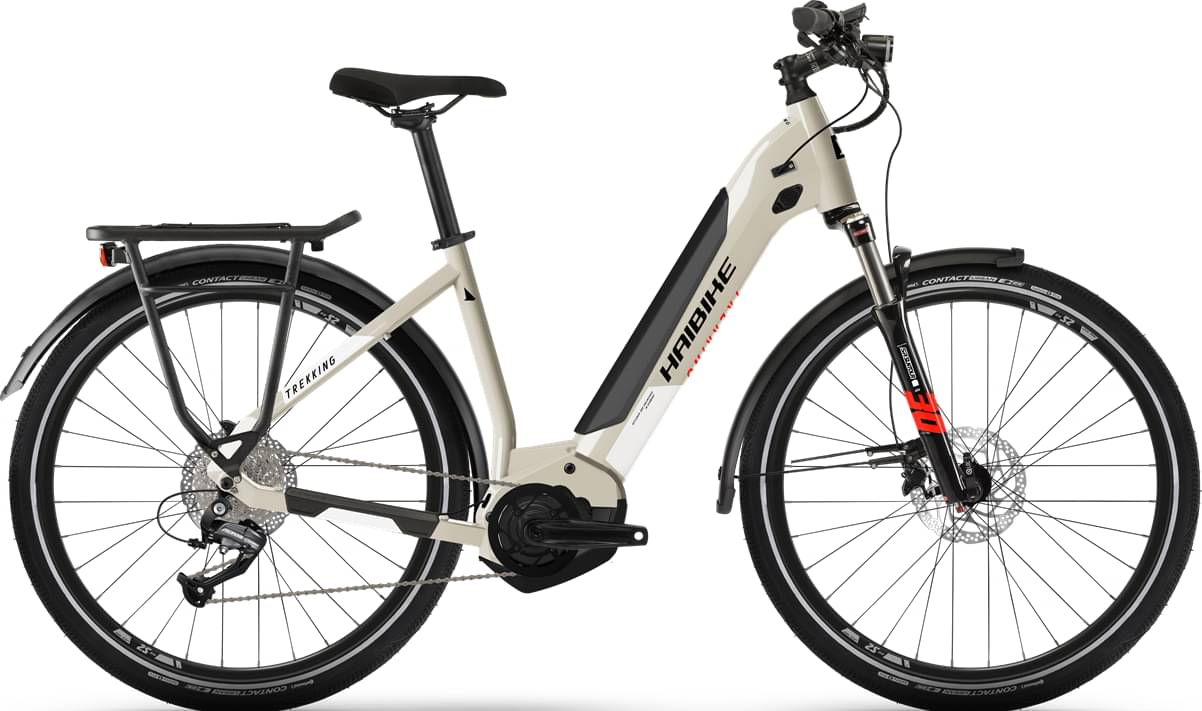

Haibike Trekking 4 LOW 2022
2022 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery InTube, 500 Wh -
Drivetrain 1 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Altus M2000
Shift Levers
Shimano, Alivio M3100, Trigger switch
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e9S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Continental, Contact Urban, 55-584, 27.5 x 2.2 inch
Brakes
Brakes
Rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-TE System, 250 W, 60 Nm, 25 km/h
Battery
InTube, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.62 mm | 1.54 mm |
| Front Center | 657 mm | 686 mm | 717 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 72 mm | 73 mm | 73 mm |
| Stack | 652 mm | 661 mm | 670 mm |
| Reach | 380 mm | 407 mm | 435 mm |
| Top Tube Length | 582 mm | 612 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1112 mm | 1142 mm | 1173 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Trekking 4 LOW is a Haibike E Trekking model. There are 68 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Haibike Trekking 4 HIGH 2022 has a starting price of 3184$. Haibike Trekking 11 LOW 2022 on the other hand is the most expensive at 5096$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 3184$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Trekking 4 LOW price is 28.39% higher.
Trekking 4 LOW components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this e-bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When leaving the production line, the Trekking 4 LOW model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
