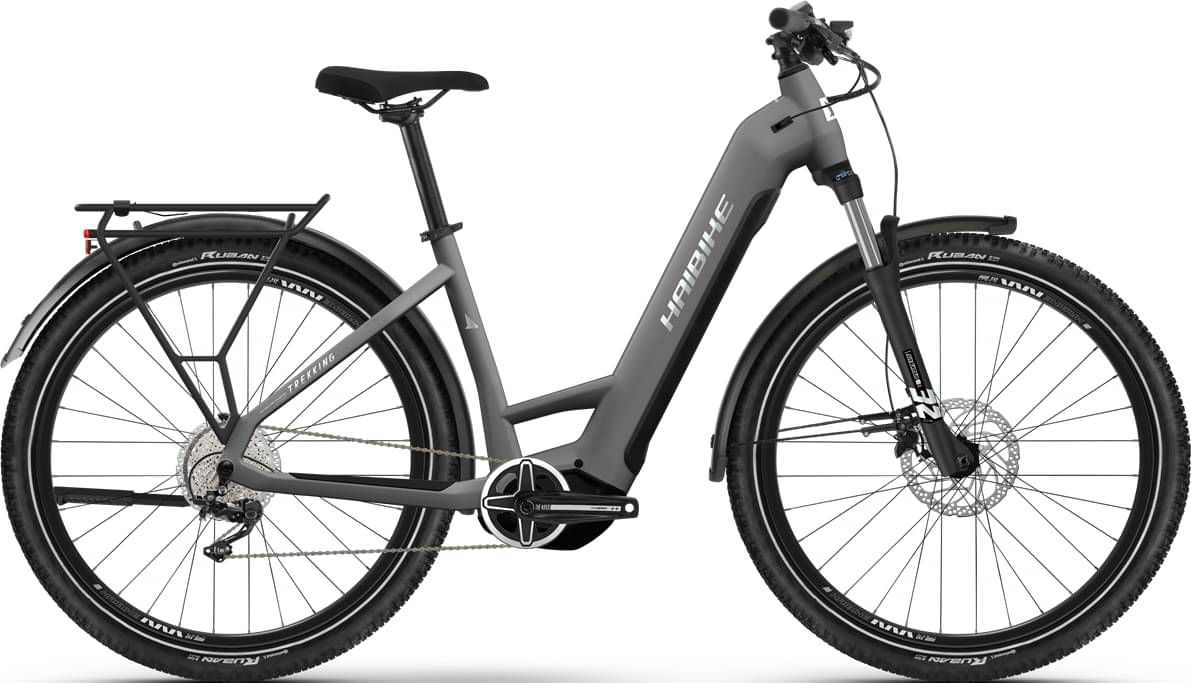

Haibike Trekking 4 LOW 2023
2023 E-bike
Estimate price |
4,013$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 100mm -
Fork Suntour XCM
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Motor Yamaha 250W 75Nm mid-drive -
Battery InTube, 720 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour, XCM32 ATB DS LO, Steel spring, travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Microshift Advent X RD-M6250M
Shift Levers
Shimano, Microshift Advent X SLM9505
Cassette
Shimano, Microshift Advent X HG104
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Chain Guide
Nylon directmount
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Continental, Ruban Reflex, 27.5" x 2.3"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT201, Aluminium,
Cockpit
Stem
XLC, A-Head verstellbar, A-head, 31.8 mm
Handlebar
Ergoriser, oversize, 720 mm
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Selle Royal, Essenza
Seatpost
Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-S2, 250W, 75 Nm
Battery
InTube, 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.47 mm |
| Front Center | 699 mm | 709 mm | 741 mm |
| Rake | 44 mm | 34 mm | 35 mm |
| Trail | 80 mm | 90 mm | 89 mm |
| Stack | 656 mm | 660 mm | 679 mm |
| Reach | 418 mm | 437 mm | 461 mm |
| Top Tube Length | 607 mm | 627 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 155 mm | 175 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1164 mm | 1174 mm | 1206 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Trekking 4 LOW completes the Haibike E Trekking model. Haibike launched 68 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Haibike Trekking 3 MID 2023 has a starting price of 3397$. Haibike Trekking 11 HIGH 2023 on the other hand is the most expensive at 5520$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 3715$. Comparing this to the average Hybrid e-bike price, we see that the price is 49.8% higher.
Trekking 4 LOW components
Fork
Haibike Trekking 4 LOW 2023 e-bike is equipped with the Suntour XCM fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Trekking 4 LOW has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Trekking 4 LOW e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 4 LOW has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
