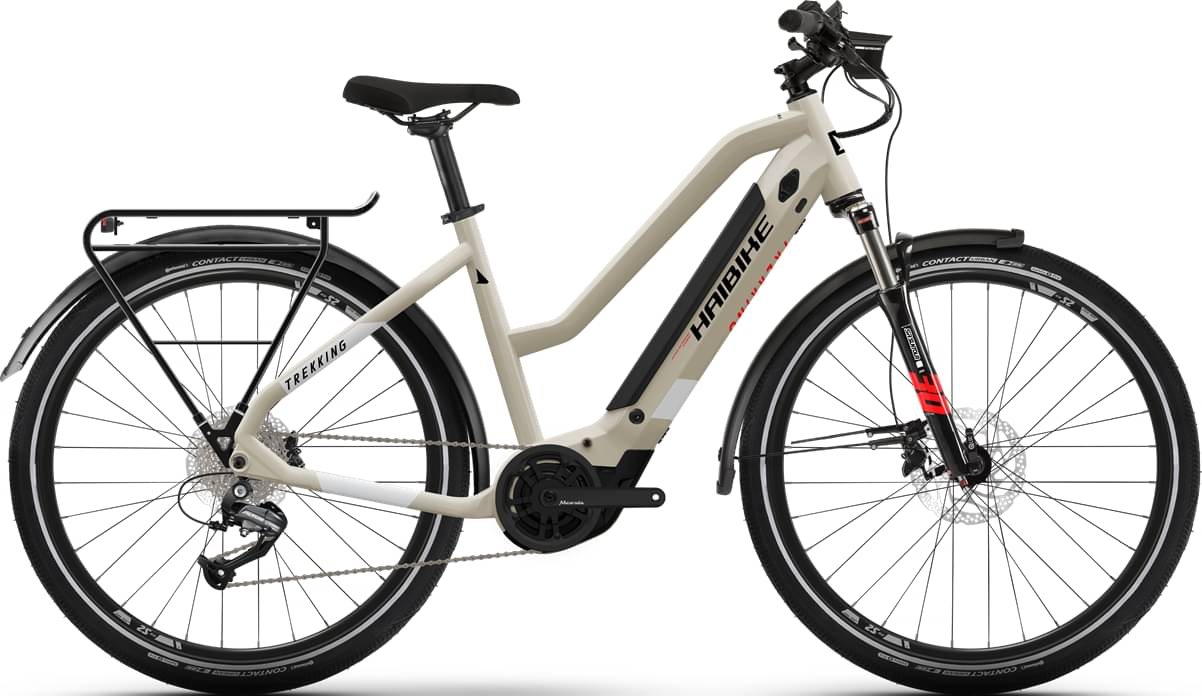

Haibike Trekking 4 MID 2022
2022 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery InTube, 500 Wh -
Drivetrain 1 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Altus M2000
Shift Levers
Shimano, Alivio M3100, Trigger switch
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e9S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Continental, Contact Urban, 55-584, 27.5 x 2.2 inch
Brakes
Brakes
Rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-TE System, 250 W, 60 Nm, 25 km/h
Battery
InTube, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.58 mm | 1.58 mm | 1.56 mm |
| Front Center | 684 mm | 699 mm | 720 mm | 743 mm |
| Rake | 47 mm | 46 mm | 46 mm | 47 mm |
| Trail | 89 mm | 90 mm | 90 mm | 89 mm |
| Stack | 628 mm | 642 mm | 661 mm | 679 mm |
| Reach | 396 mm | 406 mm | 419 mm | 434 mm |
| Top Tube Length | 586 mm | 601 mm | 619 mm | 639 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 496 mm | 496 mm | 496 mm | 496 mm |
| Wheelbase | 1175 mm | 1190 mm | 1211 mm | 1234 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Trekking 4 MID is part of the Haibike E Trekking model. There are 68 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Haibike Trekking 4 HIGH 2022 has a starting price of 3184$. Haibike Trekking 11 LOW 2022 on the other hand is the most expensive at 5096$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3184$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Trekking 4 MID price is 28.39% higher.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Trekking 4 MID has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Trekking 4 MID model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 4 MID has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Trekking 4 MID comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
