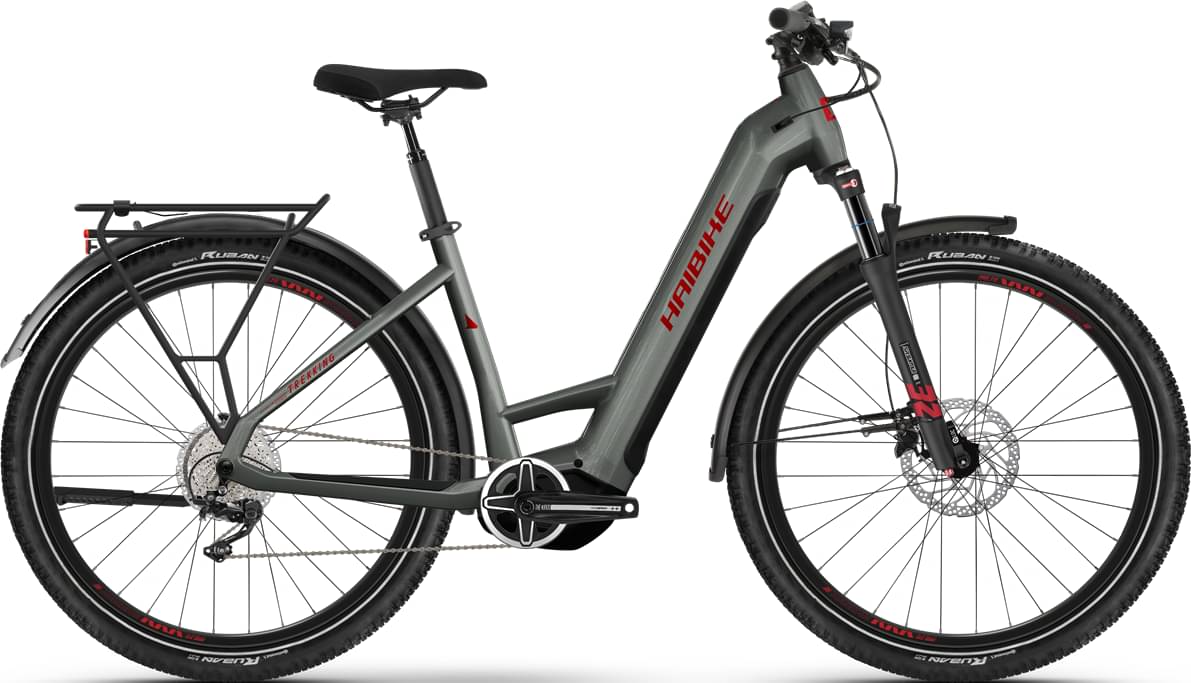

Haibike Trekking 5 LOW 2023
2023 E-bike
Estimate price |
4,357$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 75Nm mid-drive -
Battery InTube, 720 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour, Mobie 25 LOR, Lockout, Steel spring, travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Continental, Ruban Reflex, 27.5" x 2.3"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT402, Aluminium,
Cockpit
Stem
XLC, A-Head verstellbar, A-head, 31.8 mm
Handlebar
Ergoriser, oversize, 720 mm
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Selle Royal, Essenza
Seatpost
Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-S2, 250W, 75 Nm
Battery
InTube, 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.47 mm |
| Front Center | 699 mm | 709 mm | 741 mm |
| Rake | 44 mm | 34 mm | 35 mm |
| Trail | 80 mm | 90 mm | 89 mm |
| Stack | 656 mm | 660 mm | 679 mm |
| Reach | 418 mm | 437 mm | 461 mm |
| Top Tube Length | 607 mm | 627 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 155 mm | 175 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1164 mm | 1174 mm | 1206 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Trekking 5 LOW is part of the Haibike E Trekking model. Haibike launched 68 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Haibike Trekking 3 MID 2023 is the most economical model, with a starting price of 3397$. Haibike Trekking 11 HIGH 2023 on the other hand costs 5520$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 4034$. In conclusion, this e-bike price is 62.66% more expensive than the price of the average Hybrid e-bike.
Overview of components
Fork
The Trekking 5 LOW comes factory-installed with the Suntour MOBIE fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The Trekking 5 LOW 2023 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
