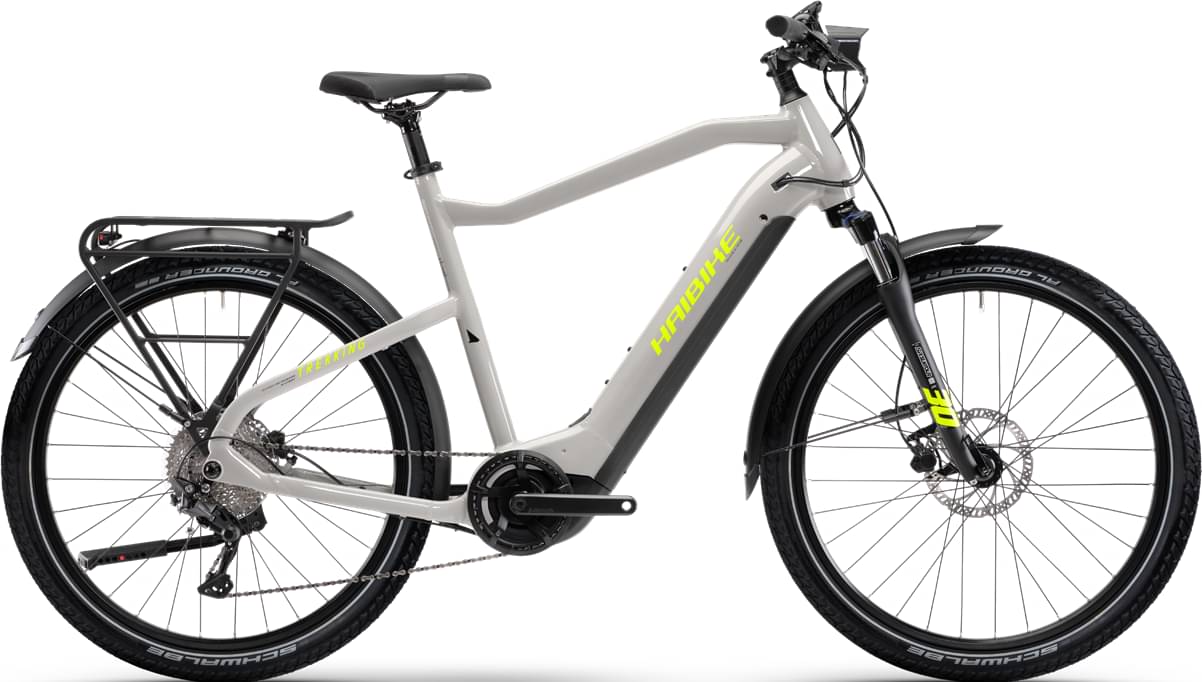

Haibike Trekking 6 HIGH 2022
2022 E-bike
Estimate price |
3,669$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 70Nm mid-drive -
Battery InTube, 630 Wh -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Aluminium 6061, Yamaha InTube 630, HD Interface, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25-HLO, Lockout, Steel spring, 63 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Rear Derailleur
Shimano, Deore M4120
Shift Levers
Shimano, Deore M4100, Trigger switch
Cassette
Shimano, CSM4100, 11 - 42 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Schwalbe, Al Grounder Performance, 60-584, 27.5 x 2.4 inch
Brakes
Brakes
rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium
Seat
Saddle
XLC, Trekking
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h
Battery
InTube, 630 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.54 mm | 1.48 mm | 1.43 mm | 1.41 mm |
| Front Center | 704 mm | 716 mm | 742 mm | 768 mm | 796 mm |
| Rake | 54 mm | 54 mm | 54 mm | 54 mm | 54 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 617 mm | 631 mm | 640 mm | 650 | 668 mm |
| Reach | 402 mm | 409 mm | 431 mm | 453 mm | 473 mm |
| Top Tube Length | 585 mm | 605 mm | 630 mm | 655 mm | 680 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm | 640 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 180 mm | 190 mm | 210 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1181 mm | 1193 mm | 1219 mm | 1245 mm | 1273 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
Trekking 6 HIGH belongs to the Haibike E Trekking model. There are 68 e-bikes that carry this model name. You can easily view all of the Haibike E Trekking e-bikes models from 2022, here.
Model range prices
Haibike Trekking 4 HIGH 2022 is the cheapest e-bike model and costs 3184$. Haibike Trekking 11 LOW 2022 is the most expensive one and costs 5096$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 3397$. If we compare this with the average Hybrid e-bike cost we notice that the price is 36.98% more expensive.
Trekking 6 HIGH components
Fork
Haibike Trekking 6 HIGH 2022 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Trekking 6 HIGH has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Haibike Trekking 6 HIGH 2022, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
