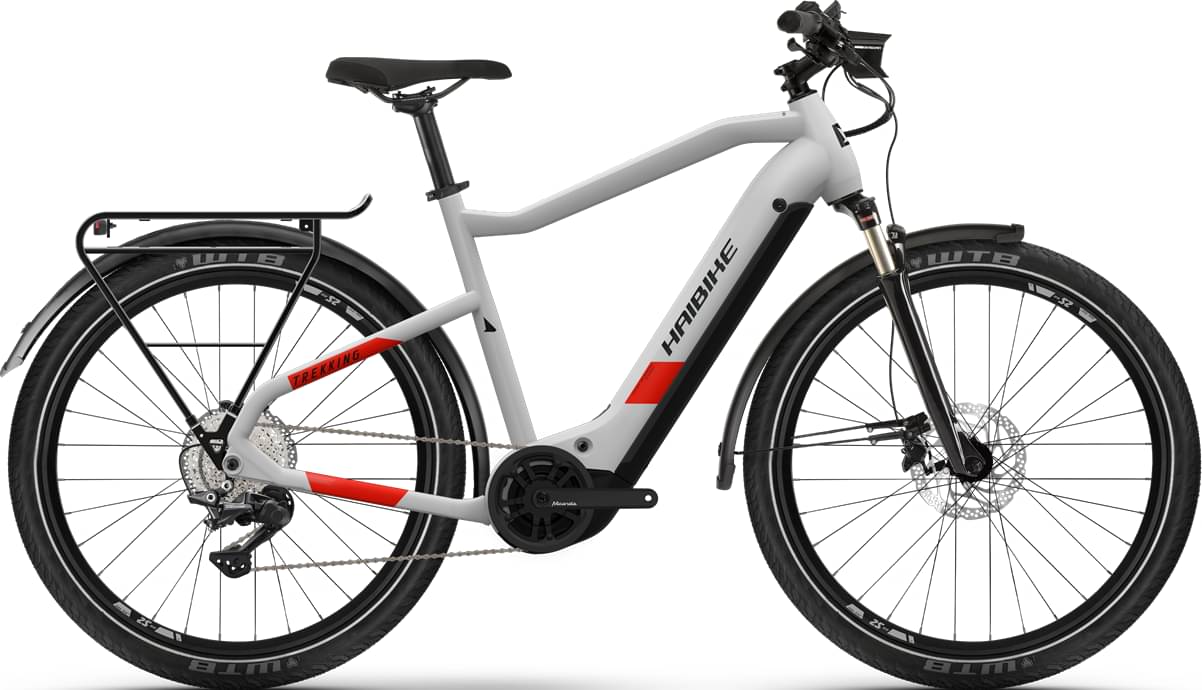

Haibike Trekking 7 HIGH 2022
2022 E-bike
Estimate price |
3,898$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery InTube, 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i630, Aluminium 6061
Suspension Fork
SR Suntour, Mobie A32, Steel spring, Travel= 75 mm, Aluminium steerer tube 1 1/8", 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch, 11 Speed
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e11S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
WTB, Groov-E, 61-584, 27.5" x 2.4"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT402, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
Battery
InTube, 630 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.54 mm | 1.48 mm | 1.43 mm | 1.41 mm |
| Front Center | 704 mm | 716 mm | 742 mm | 768 mm | 796 mm |
| Rake | 54 mm | 54 mm | 54 mm | 54 mm | 54 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 617 mm | 631 mm | 640 mm | 650 | 668 mm |
| Reach | 402 mm | 409 mm | 431 mm | 453 mm | 473 mm |
| Top Tube Length | 585 mm | 605 mm | 630 mm | 655 mm | 680 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm | 640 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 180 mm | 190 mm | 210 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1181 mm | 1193 mm | 1219 mm | 1245 mm | 1273 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
Trekking 7 HIGH belongs to the Haibike E Trekking model. Haibike launched 68 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Haibike Trekking 4 HIGH 2022 is the cheapest e-bike model and costs 3184$. Haibike Trekking 11 LOW 2022 is the most expensive one and costs 5096$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 3609$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Trekking 7 HIGH price is 45.52% more expensive.
Trekking 7 HIGH components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When it comes to wheels, the Trekking 7 HIGH e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trekking 7 HIGH comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
