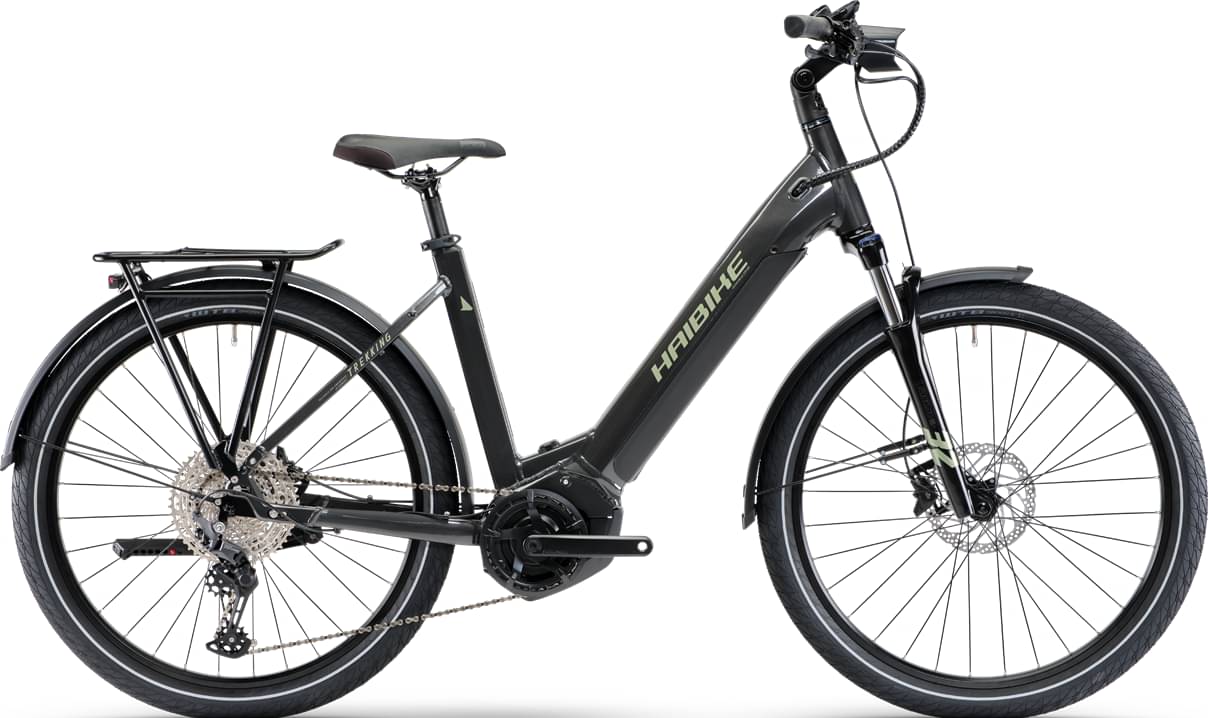

Haibike Trekking 7 LOW 2022
2022 E-bike
Estimate price |
3,898$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 70Nm mid-drive -
Battery InTube, 630 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Aluminium 6061, Yamaha InTube 630, HD Interface, Aluminium 6061
Suspension Fork
SR Suntour, Mobie A32, Steel spring, 75 mm travel, Aluminium steerer tube 1 1/8", 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e11S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
WTB, Groov-E, 61-584, 27.5 x 2.4 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT402, Aluminium
Cockpit
Stem
aluminium, angle ajustable, A-head, 31.8 mm
Handlebar
Ergoriser, oversize, 720 mm
Grips
XLC, Comfort bo3
Headset
Cane Creek, Viscoset, Aluminium
Seat
Saddle
XLC, Trekking
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h
Battery
InTube, 630 Wh
Remote
Yamaha, Multi Switch, 2.8" TFT, 16 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.5 mm |
| Front Center | 684 mm | 705 mm | 716 mm |
| Rake | 46 mm | 45 mm | 45 mm |
| Trail | 68 mm | 69 mm | 69 mm |
| Stack | 629 mm | 643 mm | 662 mm |
| Reach | 421 mm | 438 mm | 442 mm |
| Top Tube Length | 592 mm | 612 mm | 622 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1145 mm | 1166 mm | 1177 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 482 mm | 472 mm | 472 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Trekking 7 LOW completes the Haibike E Trekking model. 68 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Haibike Trekking 4 HIGH 2022 has a starting price of 3184$. Haibike Trekking 11 LOW 2022 on the other hand is the most expensive at 5096$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Haibike released this model in 2022, its price was 3609$. Doing a quick comparison, we notice that Trekking 7 LOW price is 45.52% higher than the average cost of a Hybrid e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Trekking 7 LOW e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 7 LOW has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
