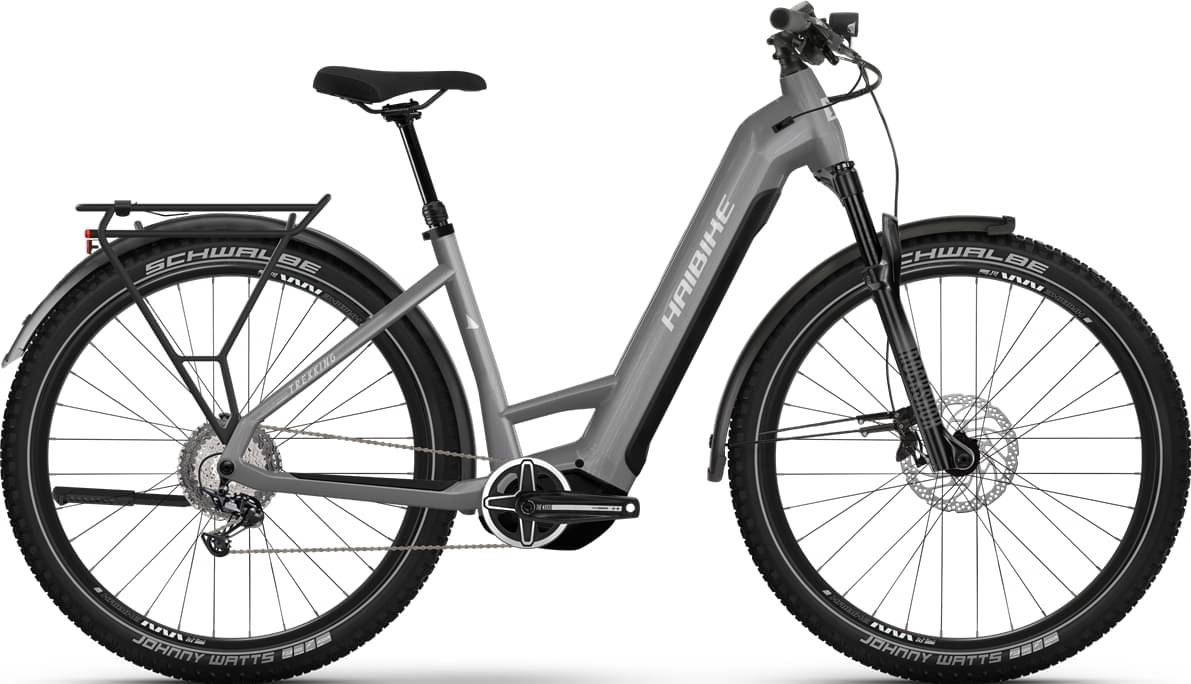

Haibike Trekking 7 LOW 2023
2023 E-bike
Estimate price |
5,045$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset GX Eagle, SX Eagle -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery InTube, 720 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox, Recon RL, Remote Lockout, Air, travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
SRAM, GX Eagle
Shift Levers
SRAM, SX Eagle
Cassette
SRAM, PG 1210 Eagle, 11 - 50 teeth
Crank
SRAM, X Sync II Eagle, 38 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Johnny Watts, 60-584, 27.5" x 2.35"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT401, Aluminium,
Cockpit
Stem
XLC, A-Head verstellbar, A-head, 31.8 mm
Handlebar
Ergoriser, oversize, 720 mm
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Selle Royal, Essenza
Seatpost
Seat- Post, Aluminium, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-X3, 250W, 85 Nm
Battery
InTube, 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.47 mm |
| Front Center | 699 mm | 709 mm | 741 mm |
| Rake | 44 mm | 34 mm | 35 mm |
| Trail | 80 mm | 90 mm | 89 mm |
| Stack | 656 mm | 660 mm | 679 mm |
| Reach | 418 mm | 437 mm | 461 mm |
| Top Tube Length | 607 mm | 627 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 155 mm | 175 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1164 mm | 1174 mm | 1206 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Trekking 7 LOW is a Haibike E Trekking model. There are 68 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Haibike Trekking 3 MID 2023 is the most affordable e-bike of this model and has a price of 3397$. On the other hand, Haibike Trekking 11 HIGH 2023, is the most expensive and costs 5520$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Haibike Trekking 7 LOW price was 4671$. In conclusion, this e-bike price is 88.35% more expensive than the price of the average Hybrid e-bike.
Overview of components
Fork
Haibike Trekking 7 LOW 2023 e-bike is equipped with the RockShox Recon Silver RL fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Trekking 7 LOW has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on Trekking 7 LOW are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 7 LOW has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trekking 7 LOW comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
