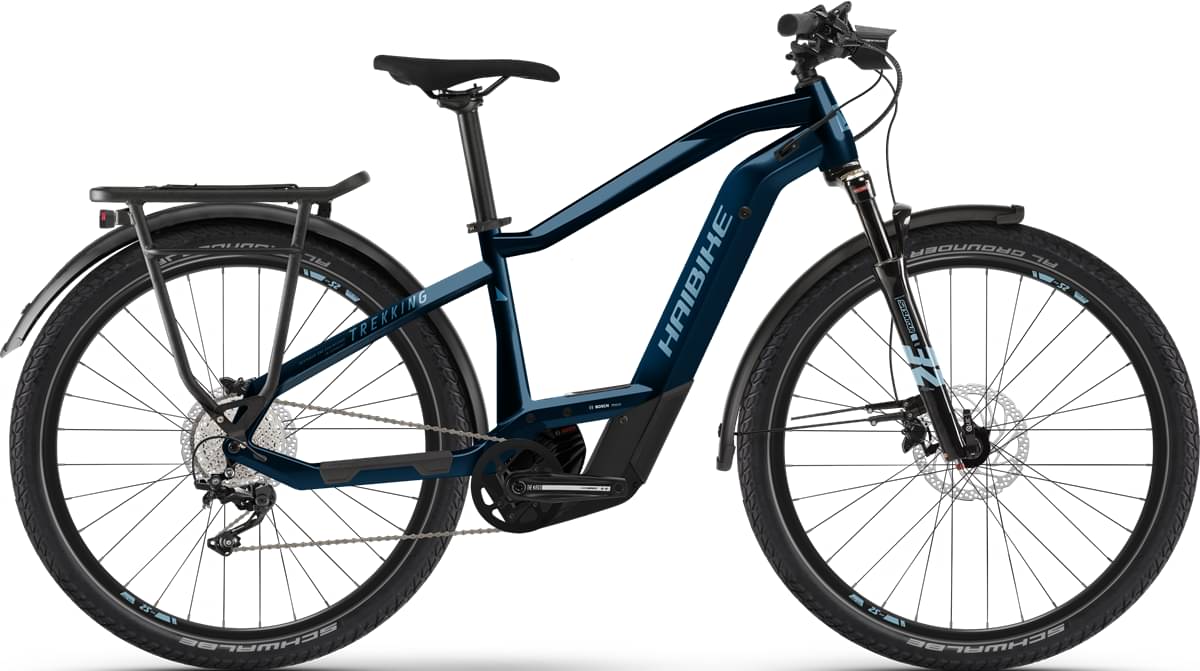

Haibike Trekking 8 HIGH 2022
2022 E-bike
Estimate price |
4,931$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Bosch Gen 4 Herren, Aluminium
Suspension Fork
SR Suntour, Mobie 25 LOR, Lockout, Steel spring, 100 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e11S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Schwalbe, Al Grounder Performance, 60-584, 27.5 x 2.4 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT401-3, Aluminium
Cockpit
Stem
Haibike Components, The Stem ++, A-head, 31.8 mm
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250 Wh, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Remote
Bosch, Kiox 300 + LED Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.57 mm | 1.53 mm | 1.47 mm |
| Front Center | 724 mm | 734 mm | 755 mm | 782 mm |
| Rake | 43 mm | 44 mm | 44 mm | 45 mm |
| Trail | 100 mm | 96 mm | 96 mm | 94 mm |
| Stack | 647 mm | 659 mm | 668 mm | 677 mm |
| Reach | 410 mm | 421 mm | 438 mm | 460 mm |
| Top Tube Length | 608 mm | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 540 mm | 580 mm | 620 mm |
| Head Tube Angle | 66 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1186 mm | 1196 mm | 1217 mm | 1244 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Trekking 8 HIGH is a Haibike E Trekking model. 68 e-bikes variations carry this model name so far. Take a sneak peek at all Haibike E Trekking e-bikes models from 2022, by clicking here.
Model range prices
Haibike Trekking 4 HIGH 2022 is the most economical model, with a starting price of 3184$. Haibike Trekking 11 LOW 2022 on the other hand costs 5096$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Haibike released this model in 2022, its price was 4565$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Trekking 8 HIGH price is 84.07% higher.
Trekking 8 HIGH components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Trekking 8 HIGH are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 8 HIGH has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Trekking 8 HIGH comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
