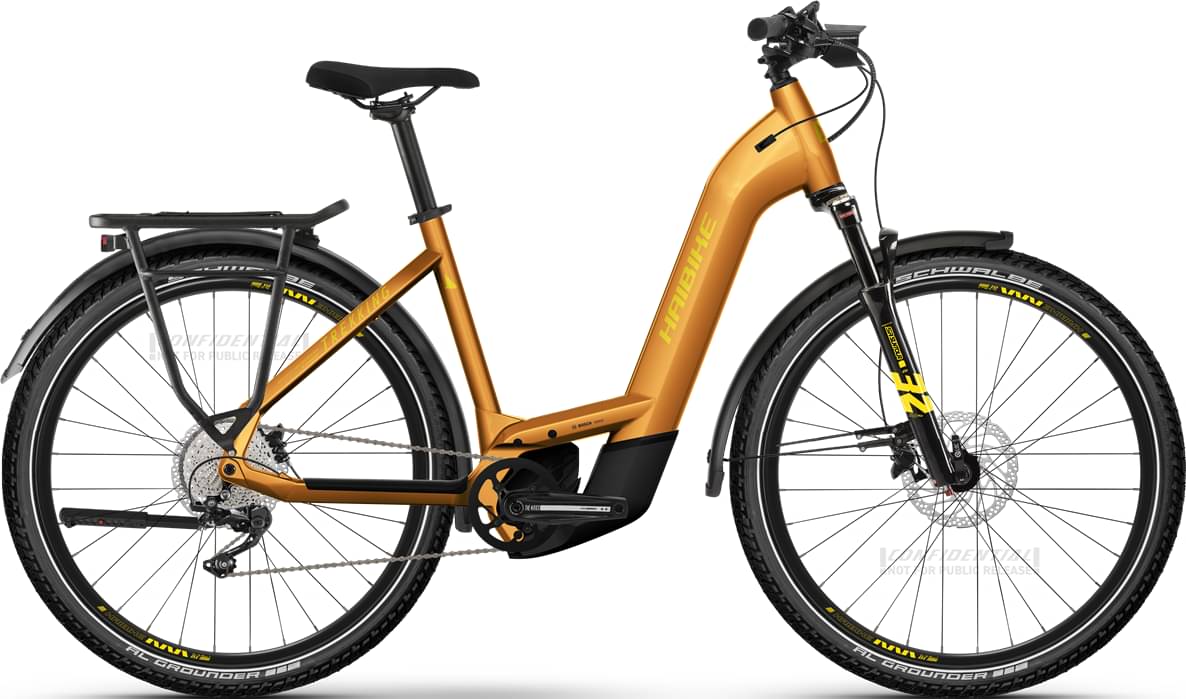

Haibike Trekking 8 LOW 2023
2023 E-bike
Estimate price |
5,390$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour, Mobie 25 LOR, Lockout, Steel spring, travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch
Cassette
Shimano, CS-LG400
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e11S
Chain Guide
Nylon directmount
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Al Grounder Performance, 60-584, 27.5" x 2.4"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT402, Aluminium,
Cockpit
Stem
Haibike Components, TheStem ++, A-head, 31.8 mm, 12 degrees
Handlebar
Haibike Components, TheBar ++, 740 mm
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250W, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.6 mm | 1.59 mm |
| Front Center | 713 mm | 718 mm | 723 mm |
| Rake | 102 mm | 32 mm | 44 mm |
| Trail | -6 mm | 99 mm | 73 mm |
| Stack | 660 mm | 675 mm | 689 mm |
| Reach | 410 mm | 422 mm | 434 mm |
| Top Tube Length | 614 mm | 631 mm | 647 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 73 ° | 68 ° | 70 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1169 mm | 1174 mm | 1179 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Trekking 8 LOW belongs to the Haibike E Trekking model. Haibike released 68 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Haibike Trekking 3 MID 2023 is the most affordable e-bike of this model and has a price of 3397$. On the other hand, Haibike Trekking 11 HIGH 2023, is the most expensive and costs 5520$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4989$. Comparing this to the average Hybrid e-bike price, we see that the price is 101.17% more expensive.
Trekking 8 LOW components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The Trekking 8 LOW 2023 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 8 LOW has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trekking 8 LOW comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
