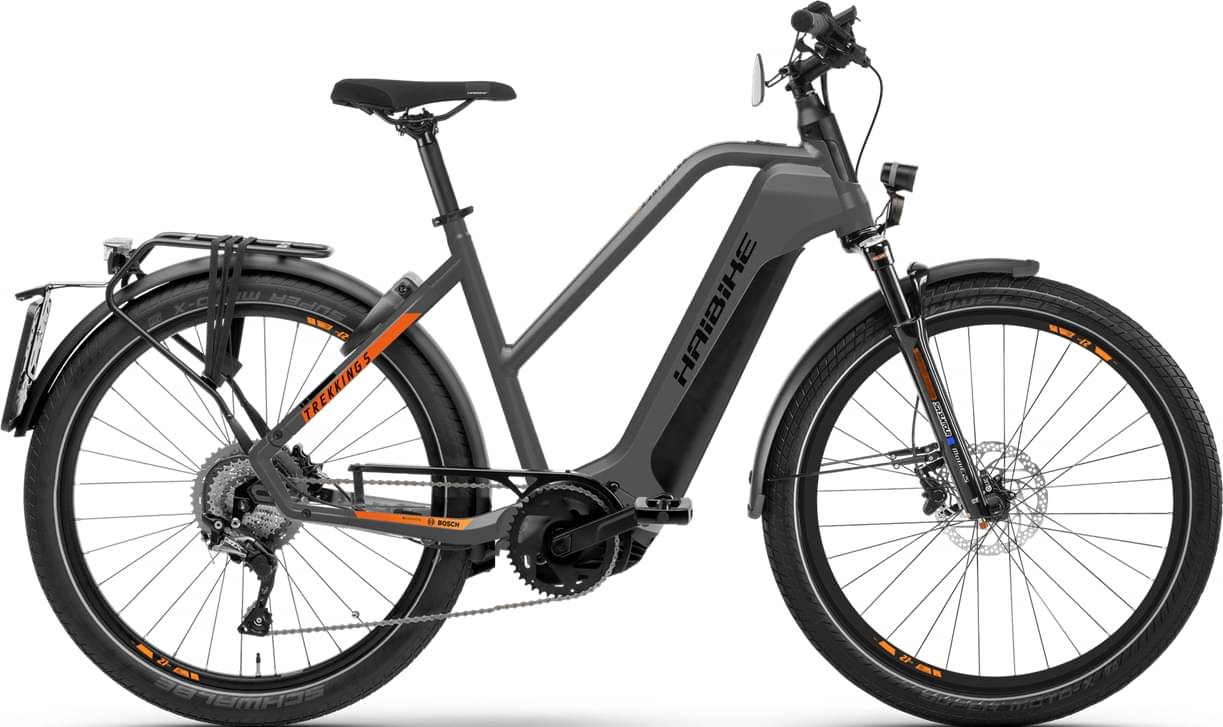

Haibike Trekking S 10 MID 2021
2021 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 65mm -
Fork Suntour MOBIE
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen4 i625, Aluminium
Suspension Fork
SR Suntour, Mobie 25 LOR, Steel spring, Travel= 65 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore XT M8000
Shift Levers
Shimano, SLX M7000, Rapidfire, 11 Speed
Cassette
Shimano, SLX M7000, 11 - 40 teeth
Crank
Aluminium, 44 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, X11T
Pedals
Marwi, SP-828,
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Super Moto X, 62-584, 27.5" x 2.4"
Brakes
Brakes
hydraulicDisc
Brake Levers
Tektro, HD-E715, Aluminium
Cockpit
Stem
Alu, A-head, Bar bore: 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Ergogriffe
Headset
Neco, MIX A-HEAD, Aluminium
Seat
Saddle
Selle Royal, EZONE MODERATE
Seatpost
Haibike Components, The seat post ++, Patent, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Speed GEN4, 250W, 85 Nm, 45 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Top Tube Length | 575 mm | 575 mm | 575 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 480 mm | 453 mm | 453 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Trekking S 10 MID is a Haibike E Trekking model. 68 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the cheapest e-bike model and costs 2866$. Haibike Trekking S 10 MID 2021 is the most expensive one and costs 5308$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 5308$. Comparing this to the average Hybrid e-bike price, we see that the price is 114.03% more expensive.
Overview of components
Fork
Haibike Trekking S 10 MID 2021 e-bike is equipped with the Suntour MOBIE fork, and has 65mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Trekking S 10 MID model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Trekking S 10 MID has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Trekking S 10 MID comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
