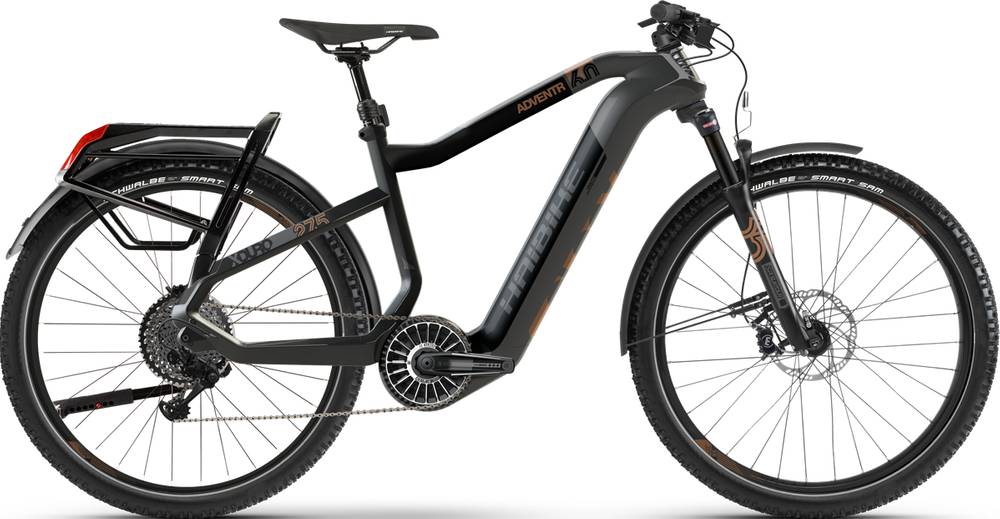

Haibike XDURO Adventr 6.0 2020
2020 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Travel Front 120mm -
Fork SunTour AION
-
Groupset XT -
Suspension Hardtail -
Motor 120Nm mid-drive -
Battery Flyon, The Battery, 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, XDURO Adventure, Carbon, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount
Suspension Fork
SR Suntour, Aion35 RLR DS, Lockout, Air, Travel= 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore XT M8000
Shift Levers
Shimano, Deore XT M8000, Rapidfire, 11 speed
Cassette
Shimano, SLX M7000, 11 - 46 teeth
Crank
Haibike Components, Aluminium, 42 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, HG601
Pedals
Feimin, MTB platform pedal, Aluminium
Wheels
Rims
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
Spokes
DT Swiss, Industry, black
Tires
Schwalbe, Marathon Plus, 57-584, 27.5" x 2.25"
Brakes
Brake Levers
Shimano, Deore XT M8000, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar
Haibike Components, The Bar +++, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
XLC, AllMtn, Remote, Telescope, 34.9 mm, Aluminium
Motor & Battery
Motor
Flyon, HPR120S, 25 km/h, 120 Nm
Battery
Flyon, The Battery, 630 Wh
Remote
Flyon, The Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.463 mm | 1.397 mm | 1.377 mm | 1.32 mm |
| Front Center | 696 mm | 716 mm | 736 mm | 756 mm | 776 mm |
| Rake | 45 mm | 38 mm | 38 mm | 30 mm | 30 mm |
| Trail | 98 mm | 105 mm | 105 mm | 114 mm | 114 mm |
| Stack | 598 mm | 616 mm | 616 mm | 635 mm | 635 mm |
| Reach | 401 mm | 421 mm | 441 mm | 461 mm | 481 mm |
| Top Tube Length | 560 mm | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1157 mm | 1177 mm | 1197 mm | 1217 mm | 1237 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 810 mm | 830 mm | 840 mm | 860 mm | 880 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
XDURO Adventr 6.0 belongs to the Haibike E Xduro model. There are 44 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Haibike XDURO FatSix 8.0 2020 is the cheapest e-bike model and costs 3715$. Haibike XDURO AllMtn 10.0 2020 is the most expensive one and costs 9555$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 6370$. Comparing this to the average Hybrid e-bike price, we see that the price is 156.85% higher.
XDURO Adventr 6.0 components
Fork
The fork installed on this bike is the SunTour AION model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the XDURO Adventr 6.0 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike XDURO Adventr 6.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Haibike XDURO Adventr 6.0 comes with a dropper post. Therefore, climbing or descending will be a breeze.
