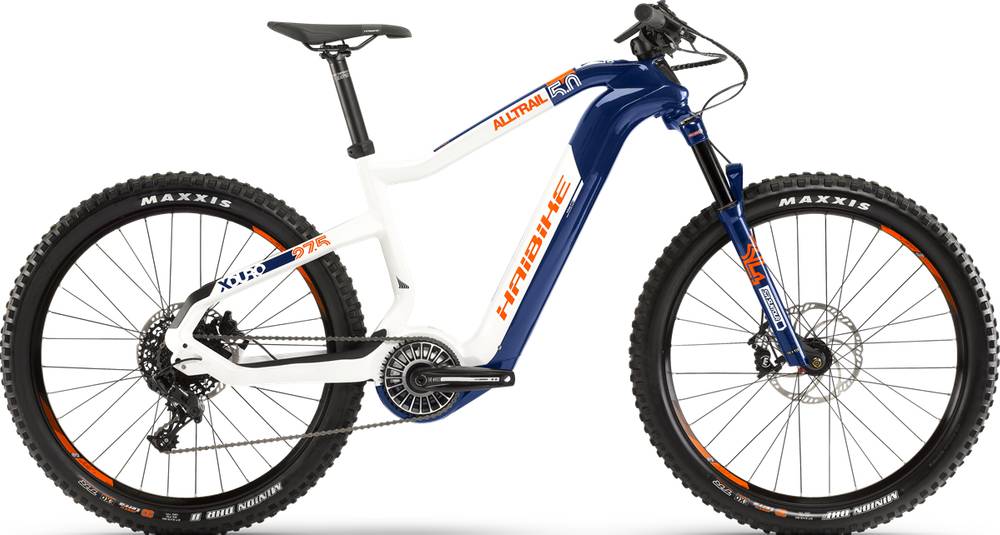

Haibike XDURO AllTrail 5.0 2020
2020 E-bike
Estimate price |
5,734$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Fork SunTour RAIDON 34
-
Groupset NX -
Suspension Hardtail -
Motor 120Nm mid-drive -
Battery Flyon, The Battery, 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Xduro AllTrail, Carbon, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount
Suspension Fork
SR Suntour, Raidon 34 LO-R, Lockout, Air, Travel= 140 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
SRAM, NX
Shift Levers
SRAM, NX, Trigger switch, 11 speed
Cassette
SRAM, PG1130, 11 - 42 teeth
Crank
Haibike Components, Aluminium, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, PC1110
Pedals
Feimin, MTB platform pedal, Aluminium
Wheels
Rims
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
Spokes
DT Swiss, Industry, black
Tires
Maxxis, Minion DHF, 71-584, 27.5" x 2.80"
Brakes
Brake Levers
Magura, MT54 HC-lever, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar
Haibike Components, The Bar +++, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, Patent, 34.9 mm, Aluminium
Motor & Battery
Motor
Flyon, HPR120S, 25 km/h, 120 Nm
Battery
Flyon, The Battery, 630 Wh
Remote
Flyon, The Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.436 mm | 1.371 mm | 1.351 mm | 1.296 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 721 mm | 741 mm | 761 mm | 781 mm | 801 mm |
| Rake | 51 mm | 51 mm | 51 mm | 44 mm | 44 mm |
| Trail | 102 mm | 102 mm | 102 mm | 110 mm | 110 mm |
| Stack | 613 mm | 613 mm | 613 mm | 631 mm | 631 mm |
| Reach | 407 mm | 427 mm | 447 mm | 467 mm | 487 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1184 mm | 1204 mm | 1224 mm | 1244 mm | 1264 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 800 mm | 810 mm | 820 mm | 840 mm | 860 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
XDURO AllTrail 5.0 belongs to the Haibike E Xduro model. Haibike released 44 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Haibike XDURO FatSix 8.0 2020 has a starting price of 3715$. Haibike XDURO AllMtn 10.0 2020 on the other hand is the most expensive at 9555$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Haibike XDURO AllTrail 5.0 price was 5308$. Comparing this to the average Trail e-bike price, we see that the price is 57.74% more expensive.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Haibike XDURO AllTrail 5.0 it’s weighing 25.7 kg (56.66 lbs). At this weight, is a bit heavier than average. In other words, this model is 8.44% heavier than the average Trail e-bike.
Overview of components
Fork
The XDURO AllTrail 5.0 comes factory-installed with the SunTour RAIDON 34 fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the XDURO AllTrail 5.0 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike XDURO AllTrail 5.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
