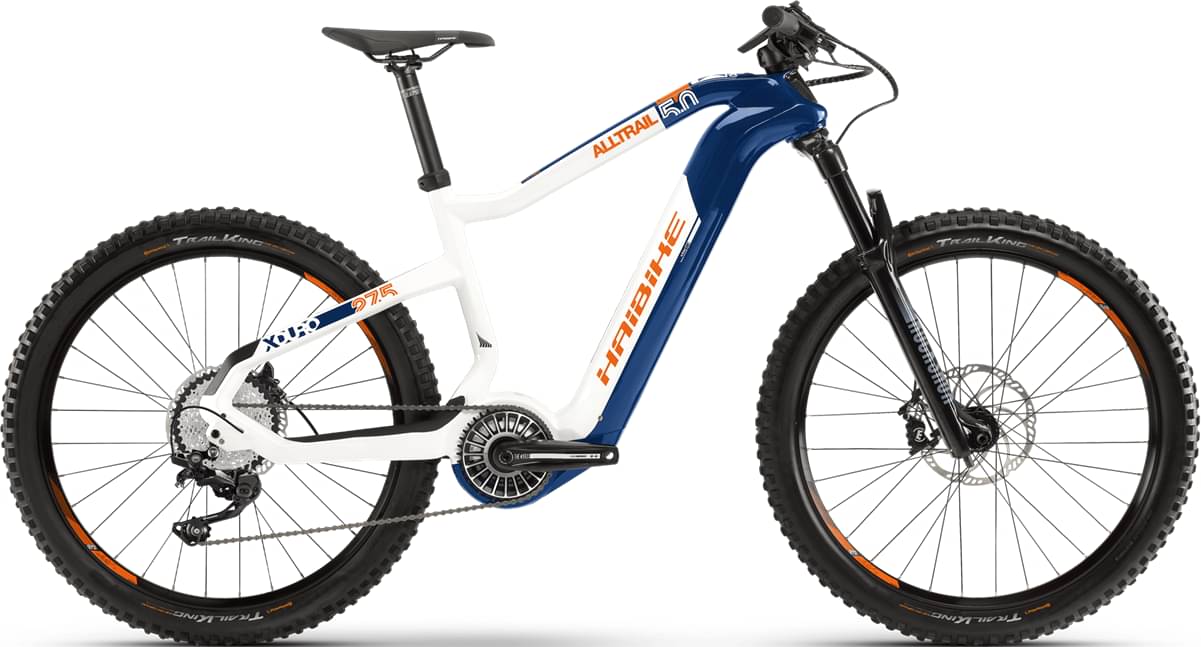

Haibike XDURO AllTrail 5.0 2021
2021 E-bike
Estimate price |
5,734$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Motor 120Nm mid-drive -
Battery Flyon, The Battery, 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Xduro AllTrail, Carbon
Suspension Fork
RockShox, 35 Silver, Steel spring, Travel= 140 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch, 11 Speed
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Haibike Components, Aluminium, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e11S
Pedals
Feimin, MTB platform pedal, Aluminium
Wheels
Rims
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
Spokes
DT Swiss, Factory, Black
Tires
Continental, Trail King, 70-584, 27.5" x 2.8"
Brakes
Brakes
hydraulicDisc
Brake Levers
Magura, MT54 HC-lever, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar
Haibike Components, The Bar +++, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Flyon, HPR120S, 120 Nm, 25 km/h
Battery
Flyon, The Battery, 630 Wh
Remote
Flyon, The Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.436 mm | 1.371 mm | 1.351 mm | 1.296 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 721 mm | 741 mm | 761 mm | 781 mm | 801 mm |
| Rake | 51 mm | 51 mm | 51 mm | 44 mm | 44 mm |
| Trail | 102 mm | 102 mm | 102 mm | 110 mm | 110 mm |
| Stack | 613 mm | 613 mm | 613 mm | 631 mm | 631 mm |
| Reach | 407 mm | 427 mm | 447 mm | 467 mm | 487 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1184 mm | 1204 mm | 1224 mm | 1244 mm | 1264 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 800 mm | 810 mm | 820 mm | 840 mm | 860 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
XDURO AllTrail 5.0 belongs to the Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Haibike XDURO Adventr 5.0 2021 is the most economical model, with a starting price of 5308$. Haibike XDURO AllMtn 10.0 2021 on the other hand costs 9555$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2021 and its price was 5308$. Comparing this to the average Trail e-bike price, we see that the price is 57.74% higher.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
XDURO AllTrail 5.0 weighs 25.7 kg (56.66 lbs) and is a bit heavier than the average. In short, the average Trail e-bike weight is 8.44% lower than this one.
Overview of components
Fork
This e-bike has the RockShox 35 Silver fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
When leaving the production line, the XDURO AllTrail 5.0 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
