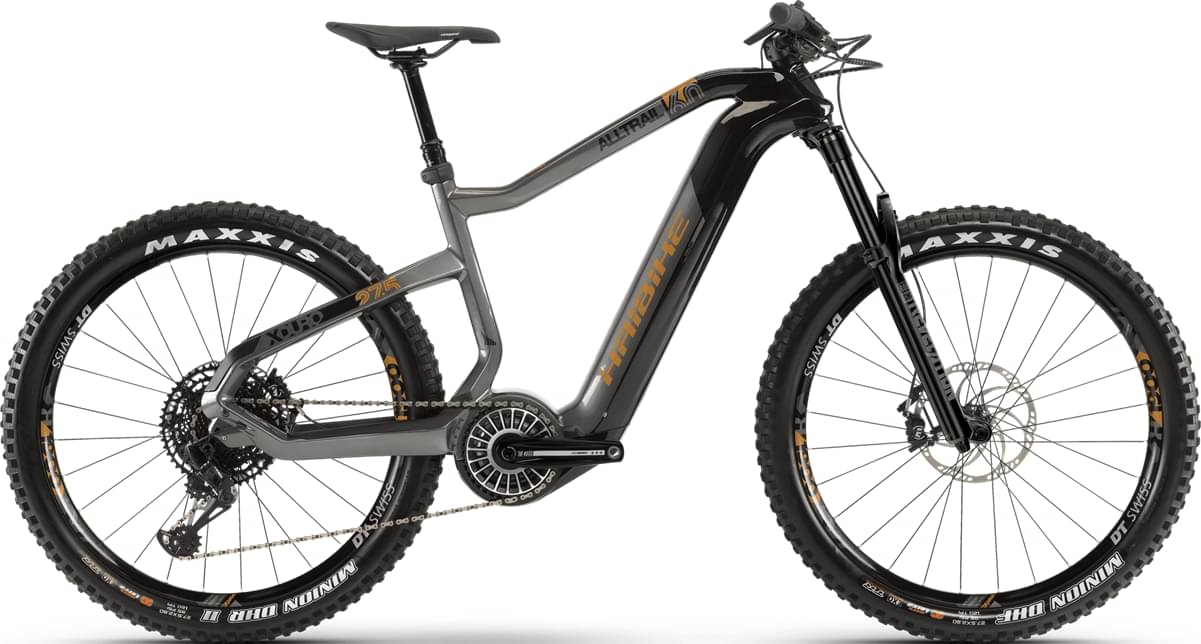

Haibike XDURO AllTrail 6.0 2021
2021 E-bike
Estimate price |
6,881$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle -
Suspension Hardtail -
Motor 120Nm mid-drive -
Battery Flyon, The Battery, 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Xduro AllTrail, Carbon
Suspension Fork
RockShox, Revelation RC, Air, Travel= 140 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
SRAM, GX Eagle
Shift Levers
SRAM, GX Eagle, Trigger switch, 12 Speed
Cassette
SRAM, Eagle PG1230, 11 - 50 teeth
Crank
Haibike Components, Aluminium, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
SRAM, GX Eagle
Pedals
Feimin, MTB platform pedal, Aluminium
Wheels
Rims
DT Swiss, H1900
Tires
Maxxis, Minion DHF, 71-584, 27.5" x 2.8"
Brakes
Brakes
hydraulicDisc
Brake Levers
Magura, MT5 HC-lever, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar
Haibike Components, The Bar +++, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
XLC, AllMtn, Remote, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Flyon, HPR120S, 120 Nm, 25 km/h
Battery
Flyon, The Battery, 630 Wh
Remote
Flyon, The Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.436 mm | 1.371 mm | 1.351 mm | 1.296 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 721 mm | 741 mm | 761 mm | 781 mm | 801 mm |
| Rake | 51 mm | 51 mm | 51 mm | 44 mm | 44 mm |
| Trail | 102 mm | 102 mm | 102 mm | 110 mm | 110 mm |
| Stack | 613 mm | 613 mm | 613 mm | 631 mm | 631 mm |
| Reach | 407 mm | 427 mm | 447 mm | 467 mm | 487 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1184 mm | 1204 mm | 1224 mm | 1244 mm | 1264 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 800 mm | 810 mm | 820 mm | 840 mm | 860 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
XDURO AllTrail 6.0 is a Haibike E Xduro model. Haibike launched 44 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haibike XDURO Adventr 5.0 2021 is the most affordable e-bike of this model and has a price of 5308$. On the other hand, Haibike XDURO AllMtn 10.0 2021, is the most expensive and costs 9555$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6370$. Doing a quick comparison, we notice that XDURO AllTrail 6.0 price is 89.3% higher than the average cost of a Trail e-bike.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly lighter than average, XDURO AllTrail 6.0 has a weight of 23.6 kg (52.03 lbs). In conclusion, the average Trail e-bike weighs 0.42% more than XDURO AllTrail 6.0.
XDURO AllTrail 6.0 components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
XDURO AllTrail 6.0 has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on XDURO AllTrail 6.0 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The XDURO AllTrail 6.0 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the XDURO AllTrail 6.0. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
