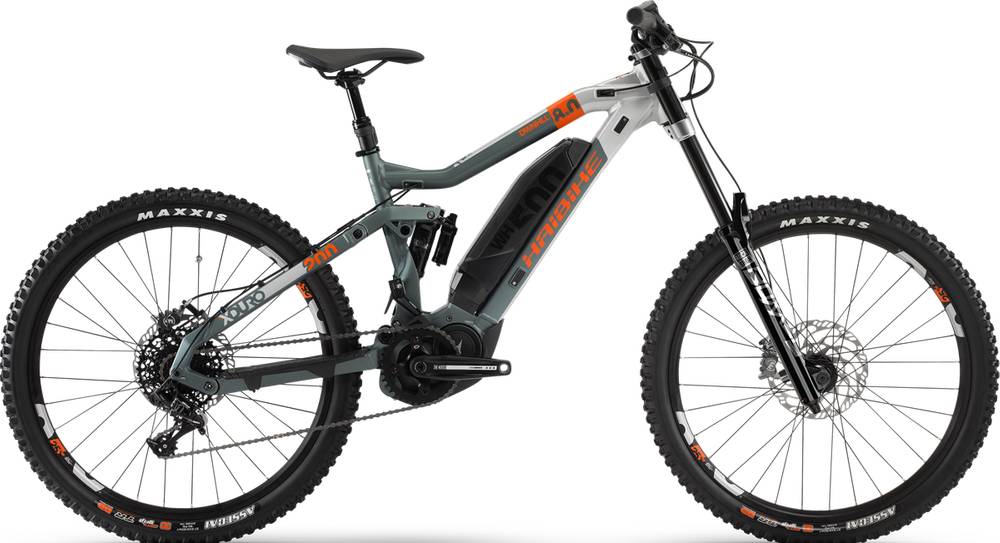

Haibike XDURO Dwnhll 8.0 2020
2020 E-bike
Estimate price |
5,734$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer Select
-
Groupset GX -
Suspension Full -
Motor Yamaha 250W 80Nm mid-drive -
Battery Yamaha, Lithium Ion, 500 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, XDURO Dwnhll, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount, Travel= 200 mm
Suspension Fork
RockShox, RockShox BoXXer Select RC, Air, Travel= 200 mm, 20 x 110mm thru-axle
Drivetrain
Rear Derailleur
SRAM, GX
Shift Levers
SRAM, GX, Trigger switch, 11 speed
Cassette
SRAM, PG1130, 11 - 42 teeth
Crank
Haibike Components, Aluminium, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, PC1110
Chain Guide
Haibike aluminium/Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Alexrims, Supra BH, Aluminium
Spokes
Sapim, Leader, black
Tires
Maxxis, Assegai DD, 66-584, 27.5" x 2.60"
Brakes
Brake Levers
Magura, MT7 HC-lever, Aluminium
Cockpit
Stem
Haibike Components, The Stem +++, Direct mount
Handlebar
Haibike Components, TheBar +++ Gravity, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Kind Shock, LEV-DX, Telescope, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-X2, 250 W, 80 Nm, 25 km/h
Battery
Yamaha, Lithium Ion, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.391 mm | 1.326 mm | 1.27 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 775 mm | 801 mm | 827 mm | 853 mm |
| Rake | 66 mm | 66 mm | 66 mm | 66 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 593 mm | 598 mm | 602 mm | 607 mm |
| Reach | 407 mm | 430 mm | 454 mm | 478 mm |
| Top Tube Length | 560 mm | 585 mm | 610 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1245 mm | 1271 mm | 1297 mm | 1323 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 800 mm | 790 mm | 790 mm | 790 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
XDURO Dwnhll 8.0 belongs to the Haibike E Xduro model. Haibike launched 44 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Haibike XDURO FatSix 8.0 2020 is the cheapest e-bike model and costs 3715$. Haibike XDURO AllMtn 10.0 2020 is the most expensive one and costs 9555$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2020, its price was 5308$. If we compare this with the average Enduro e-bike cost we notice that the price is 10.93% more expensive.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 24.4 kg (53.79 lbs), Haibike e-bike is slightly heavier than average. In conclusion, the average Enduro e-bike weighs 4.18% less than XDURO Dwnhll 8.0.
Overview of components
Fork
This e-bike has the RockShox BoXXer Select fork installed. The fork’s travel is 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the XDURO Dwnhll 8.0 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike XDURO Dwnhll 8.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Haibike XDURO Dwnhll 8.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Haibike model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
