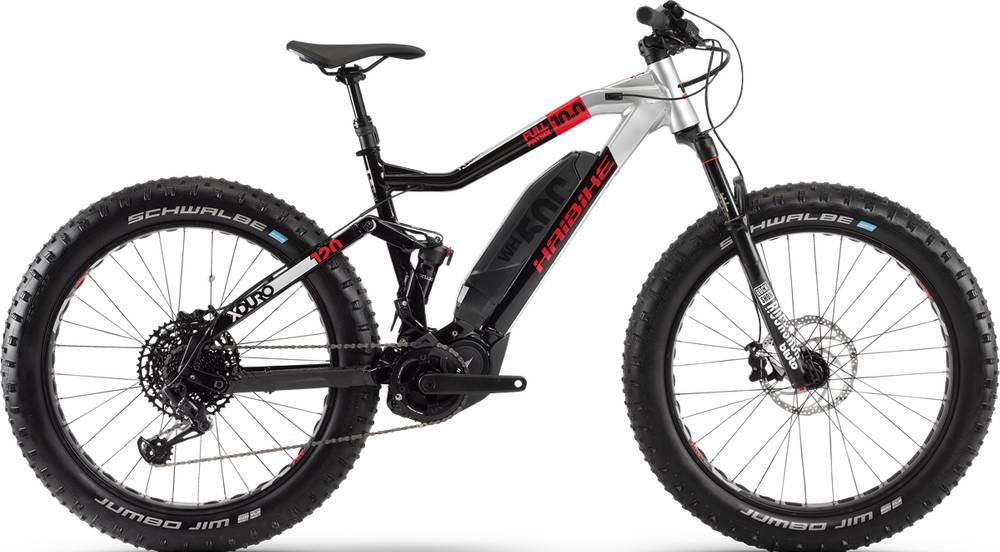

Haibike XDURO FullFatSix 10.0 2020
2020 E-bike
Estimate price |
5,734$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Bluto RL
-
Groupset GX Eagle, SRAM -
Suspension Full -
Motor Yamaha 250W 80Nm mid-drive -
Battery Yamaha, Lithium Ion, 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, XDURO FullFatSix, Aluminium 6061, Thru-axle M12 (1.50) x 197mm, Disc brake Post Mount, Travel= 120 mm
Suspension Fork
RockShox, Bluto RL, Remote Lockout, Air, Travel= 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 150mm thru-axle
Drivetrain
Rear Derailleur
SRAM, GX Eagle
Shift Levers
SRAM, Trigger switch, 12 speed
Cassette
SRAM, Eagle PG1230, 11 - 50 teeth
Crank
SRAM, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, GX Eagle
Chain Guide
Haibike aluminium/Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Alexrims, Blizzerk80, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Jumbo Jim Evo, 100-559, 26" x 4.00"
Brakes
Brake Levers
TRP, G-Spec Trail S, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar
Haibike Components, TheBar +++ Gravity, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Kind Shock, LEV-DX, Telescope, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-X2, 250 W, 80 Nm, 25 km/h
Battery
Yamaha, Lithium Ion, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.42 mm | 1.386 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm |
| Front Center | 720 mm | 741 mm | 762 mm |
| Rake | 50 mm | 51 mm | 51 mm |
| Trail | 85 mm | 84 mm | 84 mm |
| Stack | 617 mm | 626 mm | 635 mm |
| Reach | 424 mm | 441 mm | 458 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1179 mm | 1200 mm | 1221 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 780 mm | 790 mm | 810 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
XDURO FullFatSix 10.0 completes the Haibike E Xduro model. 44 e-bikes variations carry this model name so far. You can easily view all of the Haibike E Xduro e-bikes models from 2020, here.
Model range prices
The most economical model, the Haibike XDURO FatSix 8.0 2020 has a starting price of 3715$. Haibike XDURO AllMtn 10.0 2020 on the other hand is the most expensive at 9555$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fatbike e-bikes average price
According to our math, the average price for a trustworthy Fatbike e-bike is 2033$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 5308$. Comparing the average cost of a Fatbike e-bike to this one, you will see that XDURO FullFatSix 10.0 price is 161.09% more expensive.
Fatbike e-bikes average weight
If we make a quick analysis of the average weight of a Fatbike e-bike, we get 31.21 kg (68.81 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, XDURO FullFatSix 10.0 has a weight of 24.8 kg (54.67 lbs). In other words, this model is 25.85% lighter than the average Fatbike e-bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Bluto RL model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The XDURO FullFatSix 10.0 2020 e-bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The XDURO FullFatSix 10.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
XDURO FullFatSix 10.0 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the XDURO FullFatSix 10.0. Therefore, climbing or descending will be a breeze.
