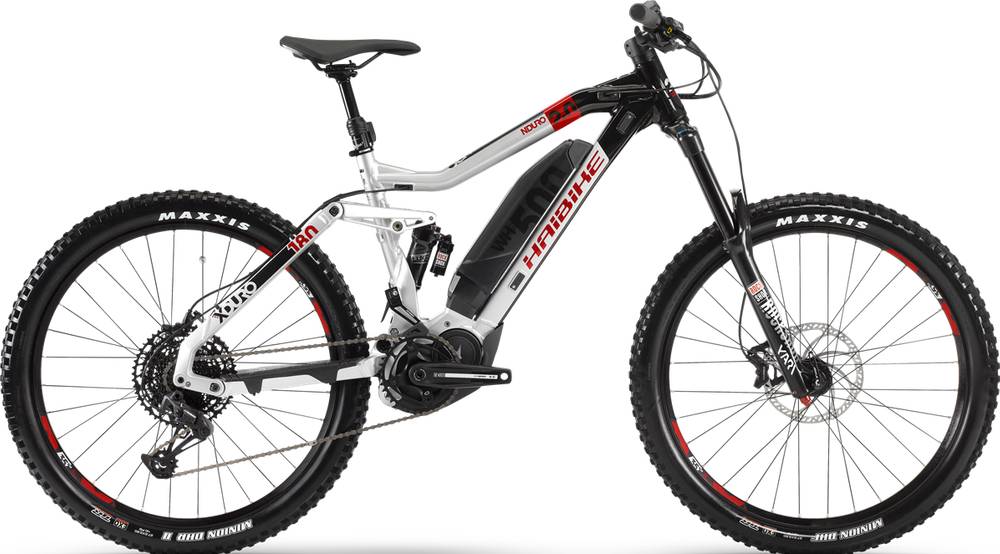

Haibike XDURO NDURO 2.0 2020
2020 E-bike
Estimate price |
4,587$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox Yari RC
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Yamaha 250W 80Nm mid-drive -
Battery Yamaha, Lithium Ion, 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO NDURO 7.0+, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount, Travel= 180 mm
Suspension Fork
RockShox, Yari RC, Air, Travel= 180 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
SRAM, SX Eagle
Shift Levers
SRAM, SX Eagle, Trigger switch, 12 speed
Cassette
SRAM, Eagle PG1210, 11 - 50 teeth
Crank
SRAM, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Haibike aluminium/Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Maxxis, Minion DHF, 66-584, 27.5" x 2.60"
Brakes
Brake Levers
Tektro, Orion M745, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar
Haibike Components, TheBar ++, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
XLC, AllMtn, Remote, Telescope, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-X2, 250 W, 80 Nm, 25 km/h
Battery
Yamaha, Lithium Ion, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.446 mm | 1.394 mm | 1.344 mm | 1.303 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 750 mm | 771 mm | 792 mm | 812 mm |
| Rake | 64 mm | 64 mm | 64 mm | 64 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 593 mm | 598 mm | 602 mm | 607 mm |
| Reach | 410 mm | 429 mm | 448 mm | 466 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1200 mm | 1221 mm | 1242 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 800 mm | 800 mm | 800 mm | 800 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
XDURO NDURO 2.0 is a Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Haibike XDURO FatSix 8.0 2020 is the most economical model, with a starting price of 3715$. Haibike XDURO AllMtn 10.0 2020 on the other hand costs 9555$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2020 and its price was 4246$. If we compare this with the average Enduro e-bike cost we notice that the price is 12.69% lower.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 23.6 kg (52.03 lbs), the XDURO NDURO 2.0 model is slightly heavier than average. In short, the average Enduro e-bike weight is 0.77% lower than this one.
Overview of components
Fork
The fork installed on this bike is the RockShox Yari RC model. The travel on this model is 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
XDURO NDURO 2.0 has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Haibike XDURO NDURO 2.0 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike XDURO NDURO 2.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Haibike model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
