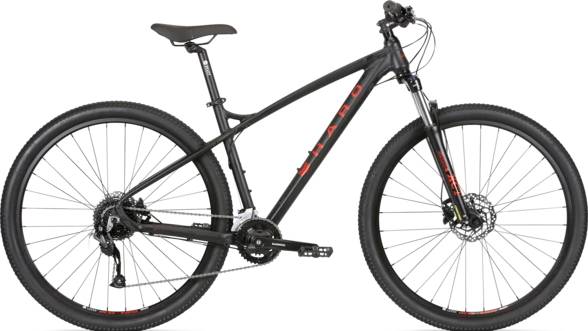

Haro Double Peak 29 Trail 2020
2020 Mountain
Estimate price |
729$
Weight | 14.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork SunTour XCT -
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haro Double Peak 29.0" X6 series alloy, w/ Internal housing routing & chainstay disc brake mount
Suspension Fork
SR Suntour XCT-30 29x100mm travel w/ hydraulic lockout
Drivetrain
Rear Derailleur
New Altus M2000 9-spd, Shadow design
Front Derailleur
New Shimano Altus, FD-M2020, 2x9-spd, Top Swing
Shift Levers
New Shimano SL-M2010-2L, 2x9-spd
Cassette
Shimano HG-200 9-spd 11-36T
Crank
New Shimano MT-101, 36/22T, 2x9-Spd
Bottom Bracket
Shimano Sealed cartridge
Chain
KMC Z9 9-spd
Pedals
FPD Nylon body, Chromoly axles,Platform
Wheels
Front Hub
Shimano TX-505 alloy, Center Lock Disc, cassette 32h
Rear Hub
Shimano TX-505 alloy, Center Lock Disc, cassette 32h
Rims
XD-180 alloy double wall 29"
Tires
H-5129 29*2.2"
Brakes
Brakes
Shimano BR-MT200 hydraulic, 160mm Center Lock Rotors
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Pivit forged stem
Handlebar
Pivit alloy 15mm riser bar 31.8mm
Headset
1-1/8" Threadless for 50mm OD headtube w/ 15mm top cover
Seat
Saddle
New Haro Double Peak
Seatpost
Pivit alloy micro adjust 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.52 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 655 mm | 672 mm | 680 mm | 690 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 631 mm | 631 mm | 640 mm | 650 |
| Reach | 399 mm | 416 mm | 421 mm | 428 mm |
| Top Tube Length | 597 mm | 614 mm | 622 mm | 632 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 419 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1105 mm | 1122 mm | 1130 mm | 1141 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 752 mm | 756 mm | 777 mm | 800 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Double Peak 29 Trail is a Haro Double model. There are 23 bikes that carry this model name. Take a sneak peek at all Haro Double bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Haro Double Peak 29 Sport 2020 has a starting price of 619$. Haro Double Peak 27.5 Plus Comp 2020 on the other hand is the most expensive at 949$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Haro released this model in 2020, its price was 729$. Comparing the average cost of a Crosscountry bike to this one, you will see that Double Peak 29 Trail price is 161.32% smaller.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Double Peak 29 Trail weighs 14.51 kg (31.99 lbs) and is much heavier than the average. In other words, this model is 17.02% heavier than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Double Peak 29 Trail components
Fork
The SunTour XCT is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Double Peak 29 Trail are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Haro Double Peak 29 Trail has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
