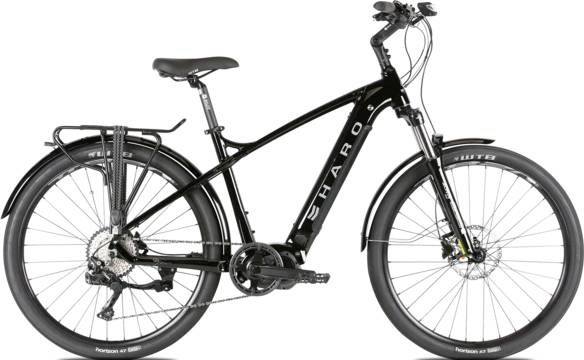

Haro Double Peak i/O Commuter 2020
2020 E-bike
Estimate price |
2,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Darfon Internal for Shimano STePS, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New MY20 Double Peak I/O X6 Aluminum frame for Shimano STePS w/ Tapered Head Tube & Internal battery Down Tube
Suspension Fork
SR Suntour XCM34 Boost LO DS T/A, 100mm travel, Tapered, w/ Lockout
Drivetrain
Rear Derailleur
Shimano Deore, RD-6000, 10-spd, Shadow Plus
Shift Levers
Shimano Deore RapidFire+ 10-spd
Cassette
Shimano Deore HG-500, 10-spd, 11-42T
Crank
Samox crankarms, Shimano STePS 38T chainring
Bottom Bracket
STEPS, press-fit
Chain
KMC e10S Sport
Pedals
FPD Nylon, 9/16" Chromoly axles
Wheels
Front Hub
Shimano MT-400 Front w/ Thru-Axle & M-4050 Rear w/ Quick Release, 32h, Cassette Body
Rear Hub
Shimano MT-400 Front w/ Thru-Axle & M-4050 Rear w/ Quick Release, 32h, Cassette Body
Rims
Weinmann U-28 TL, Sleeved, Tubeless Ready, 27.5"x32mm; Double Wall w/ eyelets
Tires
WTB Horizon Comp 650Bx47mm, Black w/ Reflective patches
Brakes
Brakes
Shimano BR-MT200 Hydraulic Disc, 180mm / 160mm Center Lock Rotors
Brake Levers
Shimano BL-MT201 Hydraulic
Cockpit
Stem
Pivit 3D Forged, Adjustable w/ intergrated front light mount
Handlebar
Alloy riser bar, 25mm Rise
Headset
FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing
Seat
Saddle
WTB Comfort Sport
Seatpost
Pivit Alloy Microadjust 31.6 x 350mm
Motor & Battery
Motor
Shimano STePS E6100, 250 W, 60 Nm Torque
Battery
Darfon Internal for Shimano STePS, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.51 mm | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 691 mm | 691 mm | 706 mm | 722 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 93 mm | 93 mm | 94 mm | 93 mm |
| Stack | 623 mm | 623 mm | 628 mm | 632 mm |
| Reach | 413 mm | 413 mm | 428 mm | 441 mm |
| Top Tube Length | 606 mm | 606 mm | 622 mm | 636 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1143 mm | 1143 mm | 1158 mm | 1174 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 717 mm | 747 mm | 767 mm | 801 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Double Peak i/O Commuter belongs to the Haro E Double model. Haro released 5 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Haro Double Peak i/O 2020 is the cheapest e-bike model and costs 2749$. Haro Double Peak i/O Commuter 2020 is the most expensive one and costs 2999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. In conclusion, this e-bike price is 22.26% higher than the price of the average Crosscountry e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Double Peak i/O Commuter 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haro Double Peak i/O Commuter is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Double Peak i/O Commuter comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
