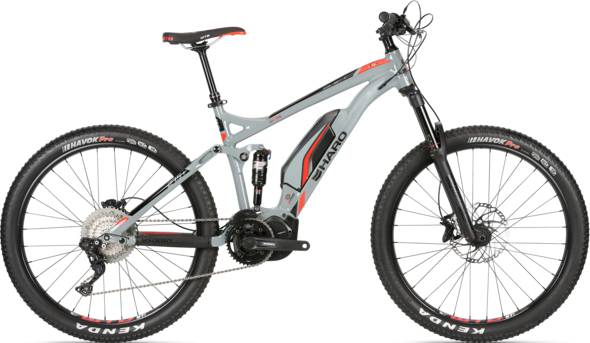

Haro Shift Plus i/O 9 2019
2019 E-bike
Estimate price |
5,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset XT Di2, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STePS E8010, 500Wh -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shift Plus I/O X6 Aluminum frame for Shimano STePS E8000, 4-Bar linkage, vertical shock, 140mm travel, Enduro Bearings
Suspension Fork
MY19 RockShox Revelation RC 27.5" Boost, 35mm stanchions, 15mm Maxle Lite, Debon Air, 150mm travel, w/ Hydraulic Lockout
Rear Shock
RockShox Monarch RL 200x57, DB, LL Tune, 430 lbs. Lockout Force
Drivetrain
Rear Derailleur
Shimano XT Di2, 11-spd, Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano XT Di2 11-spd Switch
Cassette
Shimano Deore XT M8000, 11-spd, 11-46T
Crank
Shimano E8000, forged, 38T Chainring
Bottom Bracket
N/A
Chain
KMC e11T, 11-spd, Turbo High Durability
Chain Guide
Shimano
Pedals
N/A
Wheels
Front Hub
Pivit Alloy disc Boost, E-Bike specific, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle
Rear Hub
Pivit Alloy disc Boost, E-Bike specific, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle
Rims
New WTB ST i35 TCS 2.0, Tubeless Ready, 27.5"x40mm, Double Wall
Tires
Kenda HAVOC 27.5x2.8", 120tpi, Aramid beads, Pro EMC, Tubeless Compatible
Brakes
Brakes
Shimano BR-MT520 Hydraulic Disc, 4-Piston, 203 / 180mm Rotors
Brake Levers
Shimano BL-MT501 Hydraulic
Cockpit
Stem
Race Face Aeffect R 35mm Forged short alloy
Handlebar
Race Face Ride Alloy 35mm bar, 20mm rise
Grips
WTB Ace, dual clamps, 135mm
Headset
FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing, 8mm Cone
Seat
Saddle
WTB Volt Comp 150mm Wide
Seatpost
X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm
Motor & Battery
Motor
Shimano STePS E8000, 70Nm Torque
Battery
Shimano STePS E8010, 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.35 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 708 mm | 724 mm | 755 mm | 772 mm | 788 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 101 mm | 102 mm | 102 mm | 101 mm | 100 mm |
| Stack | 598 mm | 607 mm | 616 mm | 625 mm | 634 mm |
| Reach | 415 mm | 428 mm | 455 mm | 467 mm | 479 mm |
| Top Tube Length | 572 mm | 587 mm | 617 mm | 632 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 410 mm | 457 mm | 521 mm | 559 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1166 mm | 1182 mm | 1213 mm | 1230 mm | 1246 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 762 mm | 769 mm | 769 mm | 788 mm | 812 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Shift Plus i/O 9 is a Haro E Shift model. 12 e-bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Haro Shift Plus i/O 5 2019 is the most economical model, with a starting price of 4349$. Haro Shift Plus i/O 9 2019 on the other hand costs 5899$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5899$. Comparing this to the average Trail e-bike price, we see that the price is 75.3% higher.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Shift Plus i/O 9 has a rear shock with a travel of 140mm. The model RockShox Monarch RL 200×57 is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Shift Plus i/O 9 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Shift Plus i/O 9 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Haro model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
