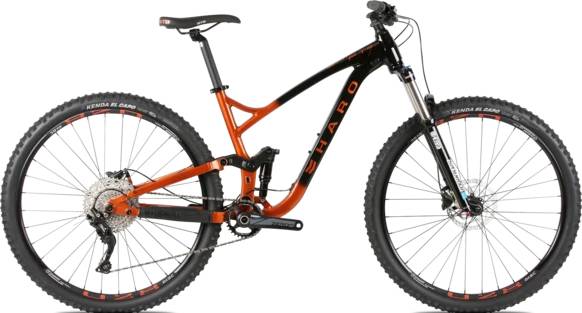

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork SunTour XCR 34
-
Groupset Deore, Suntour -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New MY20 X6 series 29" alloy dual suspended 4-Bar linkage frame, 120mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts
Suspension Fork
XCR-34 Air, Boost, 29.0", Steel stanchions, 1.5" tapered alloy steerer, 120mm travel, w/ hydraulic lockout, w/ Thru-Axle
Rear Shock
X-Fusion 02 Pro R, Trunnion, 165x42.5mm w/ Rebound adjuster
Drivetrain
Rear Derailleur
New Shimano Deore RD-M5100, 11-spd, Top Normal, Shadow Plus design
Shift Levers
New Shimano Deore M5100, right only, 1x11-spd, w/ optical gear display
Cassette
New Shimano Deore CS-M5100 11-spd 11-51T
Crank
Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring
Bottom Bracket
Suntour BB-BKA008-C, 73mm, sealed cartridge
Chain
KMC X11 NP/GY, w/ Missing Link
Pedals
N/A
Wheels
Front Hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
Rear Hub
Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles
Rims
Weinmann U-28 Disc 29" x 32h alloy double wall
Tires
Kenda Regolith, 29.0x2.4"
Brakes
Brakes
Shimano hydraulic BR-MT200 180/160mm Center Lock rotors
Brake Levers
Shimano BL-MT201 hydraulic
Cockpit
Stem
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 40mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm, 760mm, 9 Deg. sweep
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, W/ 8mm Top Cone
Seat
Saddle
WTB Volt Sport w/ color accents
Seatpost
Pivit alloy micro adjust 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 724 mm | 749 mm | 778 mm | 807 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 106 mm | 106 mm | 106 mm |
| Stack | 609 mm | 609 mm | 618 mm | 627 mm |
| Reach | 421 mm | 446 mm | 471 mm | 496 mm |
| Top Tube Length | 581 mm | 609 mm | 638 mm | 666 mm |
| Seat Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 396 mm | 433 mm | 471 mm | 496 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1156 mm | 1181 mm | 1210 mm | 1239 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 715 mm | 726 mm | 748 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Shift R5 29 belongs to the Haro Shift model. 31 bikes variations carry this model name so far. Take a sneak peek at all Haro Shift bikes models from 2020, by clicking here.
Model range prices
Haro Shift S3 27.5 2020 is the most economical model, with a starting price of 1399$. Haro Shift R9 27.5 2020 on the other hand costs 3249$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 1749$. Comparing the average cost of a Trail bike to this one, you will see that Shift R5 29 price is 57.92% smaller.
Overview of components
Fork
The Shift R5 29 comes factory-installed with the SunTour XCR 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the X-Fusion 02 Pro R model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Shift R5 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Shift R5 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Haro Shift R5 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
