Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 120mm -
Fork SunTour RAIDON
-
Groupset Deore, Suntour -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 series 29" alloy dual suspended Single Pivot frame, 120mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, 9mm Q/R rear dropouts
Suspension Fork
SR Suntour Raidon-XC-LO-R-29.0; 1.5" tapered alloy steerer, 100mm travel, air spring w/ hydraulic lockout
Rear Shock
Suntour Raidon R, 190X51
Drivetrain
Rear Derailleur
Shimano Deore RD-610, 10-spd, Top Normal, Shadow design
Front Derailleur
Shimano Deore M617-D, Side Swing, Front Pull, direct mount
Shift Levers
Shimano Deore M6000, 2x10-spd, w/ optical gear display
Cassette
Shimano Deore CS-HG50-10, 10-spd 11-36t
Crank
Suntour XCM-AX-D / 2-pc, 38/24T, 10-spd chainrings
Bottom Bracket
Suntour BB-BKA008-C, 73mm, sealed cartridge
Chain
KMC X10 NP/GY, w/ Missing Link
Pedals
N/A
Wheels
Front Hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h
Rear Hub
New Shimano TX-505 alloy, Center Lock Disc, cassette 32h
Rims
Pivit XD-260 Disc, 29" x 32h alloy double wall
Tires
Kenda Honey Badger 29*2.20, 30tpi
Brakes
Brakes
Shimano hydraulic BR-MT200 180/160mm Center Lock rotors
Brake Levers
Shimano BL-MT200 hydraulic
Cockpit
Stem
Pivit alloy Trail 0 Deg. 4 bolts, ext.: 60mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm, 700 / 720mm, 9 Deg. sweep
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, w/ 8mm Top Cone
Seat
Saddle
WTB Volt Sport w/ color accents
Seatpost
Pivit alloy micro adjust 31.6mm, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 689 mm | 713 mm | 737 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 96 mm | 96 mm | 96 mm |
| Stack | 590 mm | 602 mm | 612 mm | 621 mm |
| Reach | 398 mm | 423 mm | 443 mm | 463 mm |
| Top Tube Length | 544 mm | 573 mm | 598 mm | 622 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67.5 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1135 mm | 1159 mm | 1183 mm | 1207 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 765 mm | 766 mm | 788 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

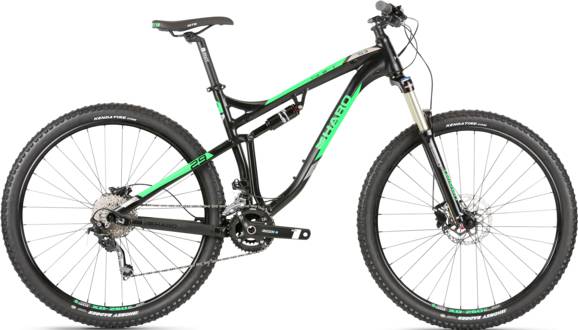

Model Overview
Shift S3 29 belongs to the Haro Shift model. Haro launched 31 bikes of this model so far. You can easily view all of the Haro Shift bikes models from 2019, here.
Model range prices
Haro Shift S3 27.5 2019 is the most economical model, with a starting price of 1299$. Haro Shift R9 Plus 2019 on the other hand costs 2988$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1299$. In conclusion, this bike price is 112.63% lower than the price of the average Trail bike.
Shift S3 29 components
Fork
Haro Shift S3 29 2019 bike is equipped with the SunTour RAIDON fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The shock that’s installed on this bike is Suntour Raidon R, with a travel distance of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Shift S3 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
