Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour RAIDON
-
Groupset Deore, Suntour -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shift S X6 Aluminum series dual suspended Single Pivot frame | 29"x120mm travel | Tapered 1.5" head tube | 73mm threaded BSA | Enduro bearings | 9mm Q/R rear dropouts
Suspension Fork
SR Suntour Raidon-XC-LO-R-29.0 | 1.5" Tapered Aluminum steer | 120mm travel | air spring hydraulic lockout
Rear Shock
Suntour Raidon R | 190X51
Drivetrain
Rear Derailleur
New Shimano Deore RD-M5120 | 10-spd | Shadow Plus
Shift Levers
New Shimano Deore SL-M4100-R 10-spd
Cassette
New Shimano Deore CS-M4100-10 | 10-spd | 11-46T
Crank
Suntour Zeron 1X AX-S-30 | 30T Steel Zig-Zag Chainring
Bottom Bracket
Suntour BB-BKA008-C | 73mm, sealed cartridge
Chain
KMC X10 NP/GY | Missing Link
Pedals
N/A
Wheels
Front Hub
Shimano TX-505 aluminum | Center Lock Disc | cassette 32h
Rear Hub
Shimano TX-505 aluminum | Center Lock Disc | cassette 32h
Rims
Pivit XD-260 Disc | 29" x 32h aluminum double wall
Tires
Kenda Honey Badger | 29*2.20 | 30tpi
Brakes
Brakes
Shimano hydraulic BR-MT200 | 180/160mm Center Lock rotors
Brake Levers
Shimano BL-MT200 hydraulic
Cockpit
Stem
Pivit alloy Trail 0 Deg. | 4 bolts | Ext.: 60mm
Handlebar
Pivit alloy 20mm riser bar 31.8mm | 700 / 720mm | 9 Deg. sweep
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom | For 44/56mm head tube | 8mm Top Cone
Seat
Saddle
WTB Volt Sport w/ color accents
Seatpost
Pivit alloy micro adjust 31.6mm | 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 732 mm | 753 mm | 767 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm |
| Stack | 593 mm | 602 mm | 612 mm |
| Reach | 446 mm | 463 mm | 473 mm |
| Top Tube Length | 593 mm | 616 mm | 629 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1178 mm | 1199 mm | 1213 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 765 mm | 771 mm | 788 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

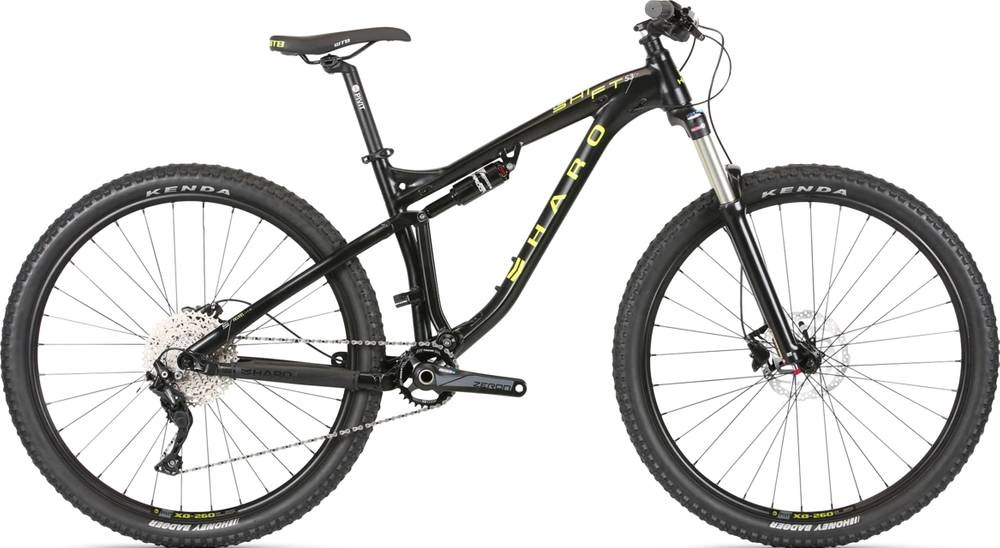

Shift S3 29 completes the Haro Shift model. 31 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Haro Shift S3 29 2021 is the most affordable bike of this model and has a price of 1499$. On the other hand, Haro Shift R9 27.5 2021, is the most expensive and costs 3199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 1499$. Comparing this to the average Trail bike price, we see that the price is 84.26% smaller.
Shift S3 29 components
Fork
The fork installed on this bike is the SunTour RAIDON model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The Shift S3 29 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haro Shift S3 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Haro Shift S3 29 bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
