Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 100mm -
Groupset microSHIFT, microSHIFT Mezzo -
Suspension Hardtail -
Motor Bafang 750W hub-drive -
Battery 48V | 13.2AH | 13S4P | 3300mAh | BAK -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Aluminium; tapered head tube and internal battery; Built in Grid mounting plate
Suspension Fork
100mm travel I Triple crown I Aluminum 32mm stanchions
Drivetrain
Rear Derailleur
Microshift RD-M26L
Shift Levers
Microshift TS39-7
Cassette
42T Alloy Chainring Alloy Guard
Crank
Forged aluminum | 170MM
Bottom Bracket
Square Tapper | 73mm | 148mm Spindle I Cadence Sensor
Chain
KMC Z7 | 7SPD
Pedals
9/16" Cro-Mo Axle, Alloy Body
Wheels
Rims
Bafang Alloy 6 Spoke Mag Wheel
Tires
Kenda Krusade 20"X4"
Brakes
Brakes
Rush Dual Piston | Open System | 180mm Rotors | STD Mount
Brake Levers
Radius 2.5 Finger | Sensor Control Cut Off | Reach Adjustment
Cockpit
Stem
Haro Baseline 48mm EXT.
Handlebar
Haro Baseline 9.5"
Grips
Dual locking 135mm Velo Grips
Headset
1-1/8" - 1-1/5" tappered internal headset
Seat
Saddle
Haro Cafe
Motor & Battery
Motor
Bafang 750w
Battery
48V | 13.2AH | 13S4P | 3300mAh | BAK
Fit data
Geometry
Numbers for sizing and ride feel.
About this model

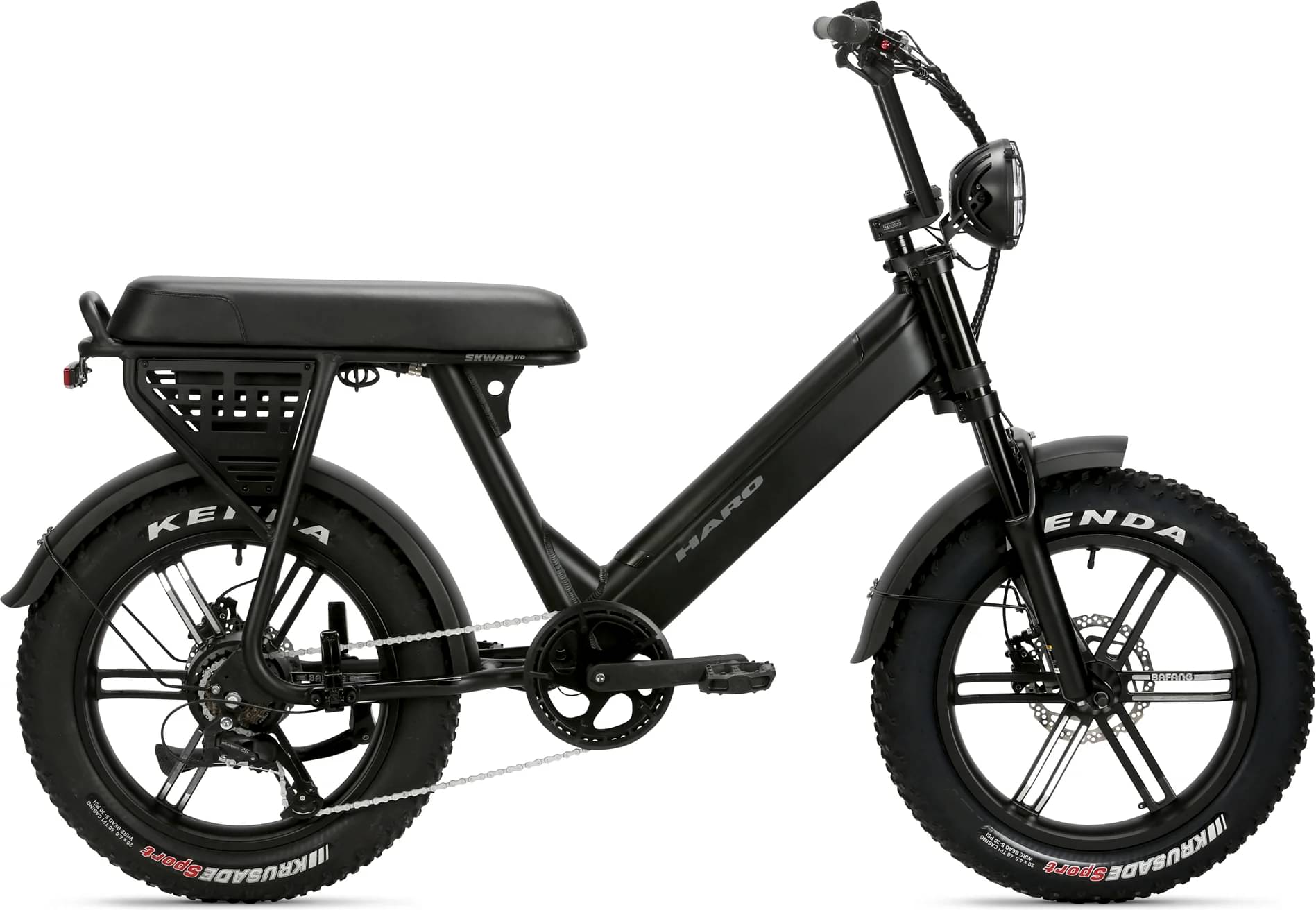

Skwad completes the Haro E Skwad model. There are 3 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Haro Skwad Electric 2023 has a starting price of 1699$. Haro Skwad LT 2023 on the other hand is the most expensive at 2399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fatbike e-bikes average price
If you want to purchase a solid Fatbike e-bike, it is important to know that the average cost is 2033$. However, even though the average price of a Fatbike e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2099$. Comparing this to the average Fatbike e-bike price, we see that the price is 3.25% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the Skwad e-bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haro Skwad is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
