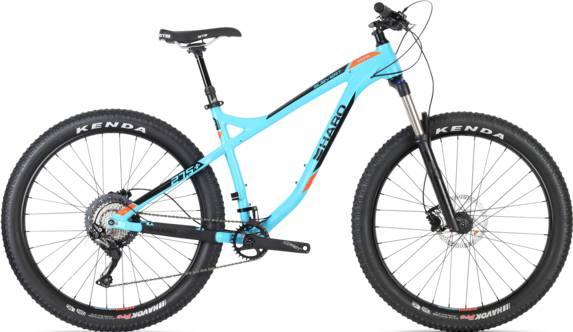

Haro Subvert HT5 2018
2018 Mountain
Estimate price |
1,739$
Weight | 14.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, FSA -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 series alloy Hardtail, 27.5" Plus / 29" geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts
Suspension Fork
New Recon RL 29"-B Boost; 1-1/8 - 1.5" tapered alloy steerer, 120mm travel, Solo Air, 15x110mm thru-axle
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7000, SGS 10/11-spd Top normal, Shadow Plus design
Front Derailleur
N/A, w/ Mr. Control alloy direct mount plate cover & CH-CM4 Chain Guide
Shift Levers
Shimano SLX, SL-M7000, 1x11-spd, Right side only, w/o optical gear display
Cassette
Shimano CS-M7000, 11-spd 11-46T
Crank
FSA Comet Modular MegaExo Boost, 30T Megatooth Crmo Chainring
Bottom Bracket
Mega Exo BB-7100 Boost
Chain
KMC X11-1 NP/GY, 1/2" x 11/128", 1x11 Specific
Pedals
N/A
Wheels
Front Hub
Pivit Boost Disc alloy 32h, Sealed Bearings, 15x110mm Frt & 12x148mm Rear Thru-Axles
Rear Hub
Pivit Boost Disc alloy 32h, Sealed Bearings, 15x110mm Frt & 12x148mm Rear Thru-Axles
Rims
WTB Scraper i35 27.5"Plus, 40mm width, alloy double wall rims w/ TCS i35 rim tape
Tires
Kenda Havoc 27.5x2.8", TCS, Aramid Bead 120 tpi
Brakes
Brakes
Shimano BR-M395 hydraulic, 180/160mm rotors
Brake Levers
Shimano BL-M396
Cockpit
Stem
New Pivit X6 alloy Trail, 3D Forged, 0 Deg. 4 bolts, ext.: 60/80mm
Handlebar
New Pivit X6, 15mm rise, 750 / 785mm wide; 9 Deg. sweep
Headset
FPD Dozer-1048 w/ 1.5" ACB bottom for 44/56mm Head Tube
Seat
Saddle
WTB Rocket Sport
Seatpost
Pivit Internal Dropper post w/ remote, 31.8x100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.55 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 663 mm | 684 mm | 720 mm | 741 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 85 mm | 85 mm | 84 mm |
| Stack | 628 mm | 628 mm | 637 mm | 647 mm |
| Reach | 384 mm | 404 mm | 437 mm | 453 mm |
| Top Tube Length | 567 mm | 587 mm | 617 mm | 632 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 368 mm | 406 mm | 457 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1104 mm | 1125 mm | 1161 mm | 1182 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 742 mm | 747 mm | 752 mm | 780 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Subvert HT5 is part of the Haro Subvert model. There are 7 bikes that carry this model name. You can easily view all of the Haro Subvert bikes models from 2018, here.
Model range prices
The most economical model, the Haro Subvert HT3 2018 has a starting price of 1029$. Haro Subvert HT7 2018 on the other hand is the most expensive at 2499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Haro released this model in 2018, its price was 1739$. Doing a quick comparison, we notice that Subvert HT5 price is 58.83% smaller than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, Subvert HT5 has a weight of 14.06 kg (31 lbs). In conclusion, the average Trail bike weighs 8.32% less than Subvert HT5.
Subvert HT5 components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Subvert HT5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Subvert HT5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Subvert HT5 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Subvert HT5. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
