Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE8014, Capacity: 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 50/55/59 cm , Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RD-M300, 8 speed
Shift Levers
S-Ride SL-M300 , 1×8
Crank
Shimano FCE5010, Chainring: 44t, length: 175mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo M272T DU,
Wheels
Front Hub
Formula DC20 , QR, 100mm
Rear Hub
Formula DC22, QR, 135mm
Rims
Remerx Dragon 719 , 32h
Tires
CST Control Plus , 28×1.6?
Brakes
Brakes
Clarks Clout, Disc brakes: 160/160mm
Cockpit
Stem
HBC, Length: 90mm, 31.8mm
Handlebar
HBC, Width: 660mm, bended, 31.8mm
Headset
Neco H113, Semi-cartridge
Seat
Saddle
HBC, Rails: Cr-Mo
Seatpost
HBC VL3389, Length: 350mm, 27.2mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Shimano STePS BTE8014, Capacity: 418Wh
Fit data

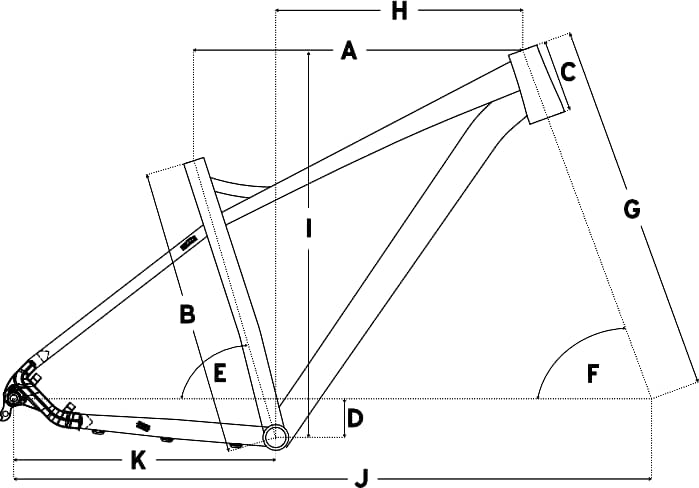

Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 59cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
About this model

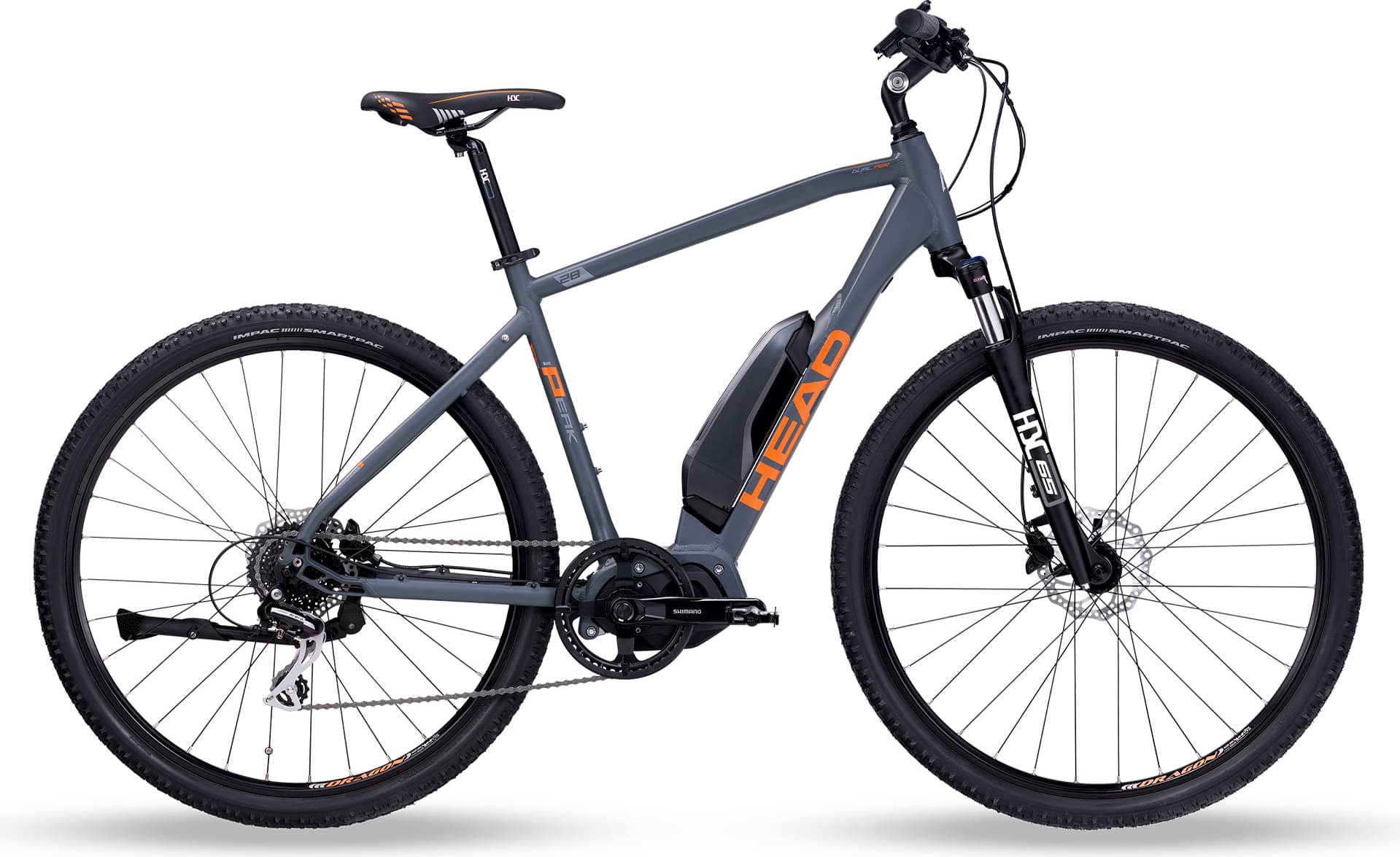

E I-PEAK 1.0 MEN completes the Head E E model. HEAD released 23 e-bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E I-PEAK 1.0 MEN components
Fork
The Zoom is included from the factory. It has a travel distance of 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, HEAD E I-PEAK 1.0 MEN 2024, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. HEAD E I-PEAK 1.0 MEN has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
