Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE8014, Capacity: 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 46/50/54 cm , Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RD-M300, 8 speed
Shift Levers
S-Ride SL-M300 , 1×8
Crank
Shimano FCE5010, Chainring: 44t, length: 175mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo C169T DU,
Wheels
Front Hub
Formula DC20 , QR, 100mm
Rear Hub
Formula DC22, QR, 135mm
Rims
Remerx Dragon 719 , 32h
Tires
Impac SmartPac+RT, 28×1.6?
Brakes
Brakes
Clarks Clout, Disc brakes: 160/160mm
Cockpit
Stem
HBC, Length: 90mm, 31.8mm
Handlebar
HBC, Width: 660mm, bended, 31.8mm
Headset
Neco H113, Semi-cartridge
Seat
Saddle
HBC, Rails: Cr-Mo
Seatpost
HBC VL4333, Length: 350mm, 31.6mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Shimano STePS BTE8014, Capacity: 418Wh
Fit data

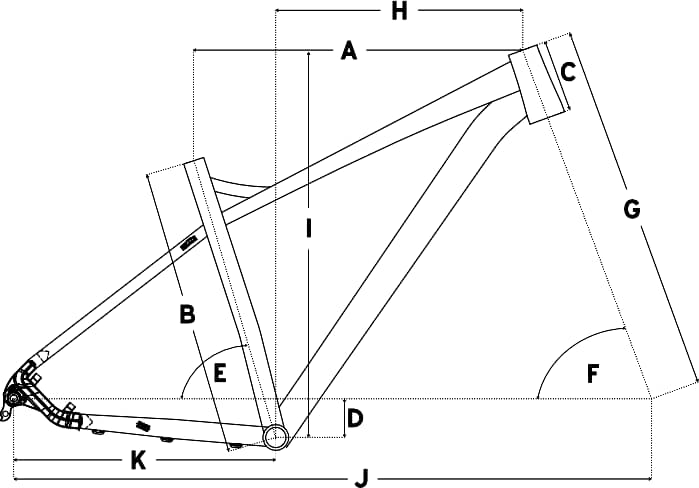

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
About this model
E-REVELO 1.0 joy belongs to the Head E E Revelo model. There are 8 e-bikes that carry this model name. Take a sneak peek at all Head E E Revelo e-bikes models from 2024, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
E-REVELO 1.0 joy components
Fork
The fork installed on this bike is the Zoom model. The travel on this model is 65mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The E-REVELO 1.0 joy 2024 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
