Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Darfon, Capacity: 504Wh -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 50/55/59 cm , Integrated battery, internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RD-M300, 9 speed
Shift Levers
S-Ride SL-M300 , 1×9
Crank
Shimano FCE5010, Chainring: 44t, length: 175mm
Chain
KMC x9, 9 speed
Pedals
Wellgo M272T DU,
Wheels
Front Hub
Formula DC20 , QR, 100mm
Rear Hub
Formula DC22, QR, 135mm
Rims
Remerx Dragon 719 , 32h
Tires
CST Control Plus , 28×1.6?
Brakes
Brakes
Clarks M2, Disc brakes: 160/160mm
Cockpit
Stem
HBC, Length: 60mm, 31.8mm
Handlebar
HBC, Width: 660mm, bended, 31.8mm
Headset
Neco H386E, Sealed bearings
Seat
Saddle
HBC, Rails: Cr-Mo
Seatpost
HBC VL3389, Length: 350mm, 27.2mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Darfon, Capacity: 504Wh
Fit data

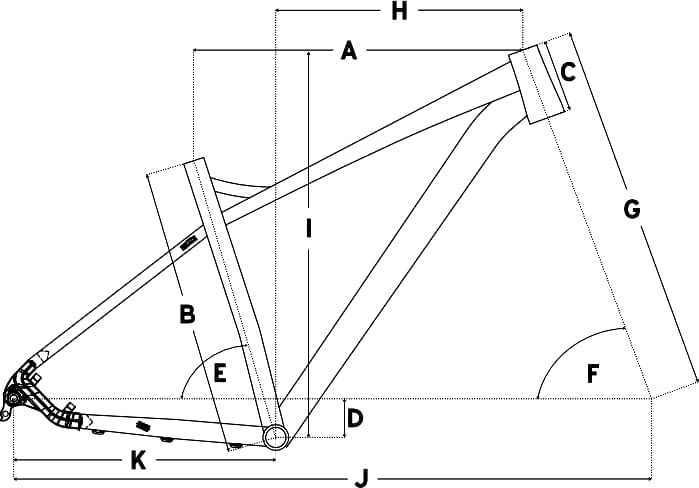

Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 59cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview
E Revelo 2.0 MEN is a Head E E model. 23 e-bikes variations carry this model name so far. Take a sneak peek at all Head E E e-bikes models from 2024, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
E Revelo 2.0 MEN components
Fork
The fork installed on this bike is the Zoom model. The travel on this model is 65mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the E Revelo 2.0 MEN e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E Revelo 2.0 MEN comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
