Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE8014, Capacity: 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 50/55/59 cm , Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RD-M300, 8 speed
Shift Levers
S-Ride SL-M300 , 1×8
Crank
Shimano FCE5010, Chainring: 44t, length: 175mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo C169T DU,
Wheels
Front Hub
Formula DC20 , QR, 100mm
Rear Hub
Formula DC22, QR, 135mm
Rims
Remerx Dragon 719 , 32h
Tires
Impac SmartPac+RT, 28×1.6?
Brakes
Brakes
Clarks Clout, Disc brakes: 160/160mm
Cockpit
Stem
HBC, Length: 90mm, 31.8mm
Handlebar
HBC, Width: 660mm, bended, 31.8mm
Headset
Neco H113, Semi-cartridge
Seat
Saddle
HBC, Rails: Cr-Mo
Seatpost
HBC VL3389, Length: 350mm, 31.6mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Shimano STePS BTE8014, Capacity: 418Wh
Fit data

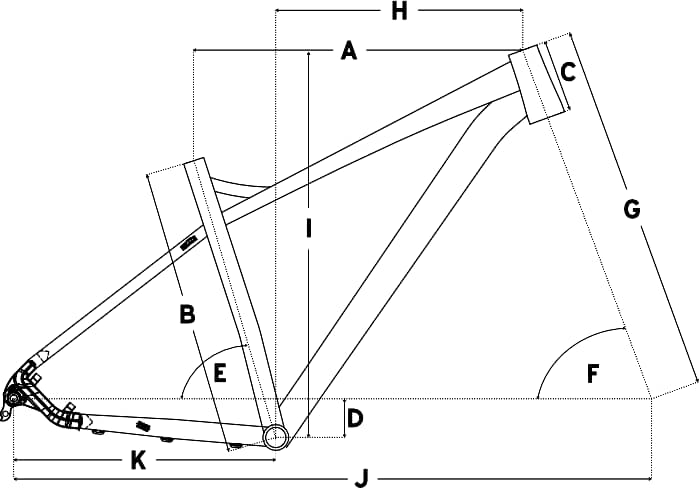

Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 59cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview

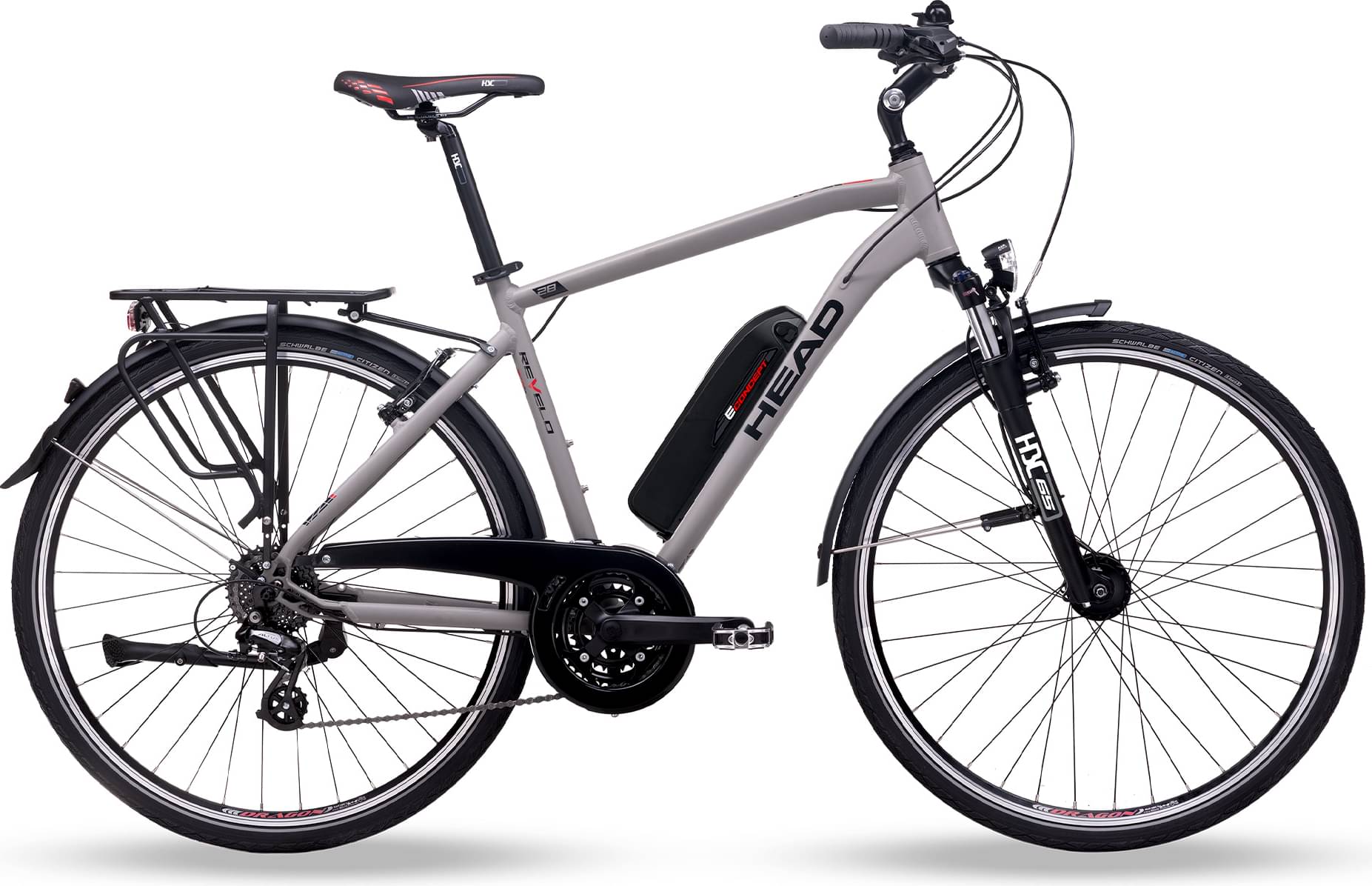

E-REVELO I MEN is part of the Head E E Revelo model. There are 4 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The E-REVELO I MEN comes factory-installed with the Zoom fork. This has a travel range of 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The E-REVELO I MEN 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-REVELO I MEN comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
