Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Suspension Hardtail -
Motor Bafang 45Nm hub-drive -
Battery Greenway ZZ98, Capacity: 504Wh -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 46/50/54cm, Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RD-M300 , 8 speed
Front Derailleur
S-Ride FD-M300,
Shift Levers
S-Ride SL-M300 , 3×8
Crank
Prowheel TY-CM02 , Chainrings: 48-38-28t, length: 175mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo C127DU,
Wheels
Front Hub
Formula DC20, QR, 100mm
Rear Hub
Bafang RMG020, Motor in rear hub, 135mm
Rims
Remerx Dragon 719, 36h
Tires
Impac SmartPac , 28×1.6?
Brakes
Brakes
Clarks Clout 160/160mm, Disc brakes: 160/160mm
Cockpit
Stem
HBC, HBC 46cm-85mm, 50cm-95mm, 54cm -105cm, 25.4mm
Handlebar
HBC, Width: 660mm, 25.4mm
Headset
Neco H113,
Seat
Saddle
HBC VL-4333, Rails: Cr-Mo
Seatpost
HBC, Length: 350mm, 31.6mm
Motor & Battery
Motor
Bafang RMG020, Rear hub motor, max. torque: 45Nm
Battery
Greenway ZZ98, Capacity: 504Wh
Fit data

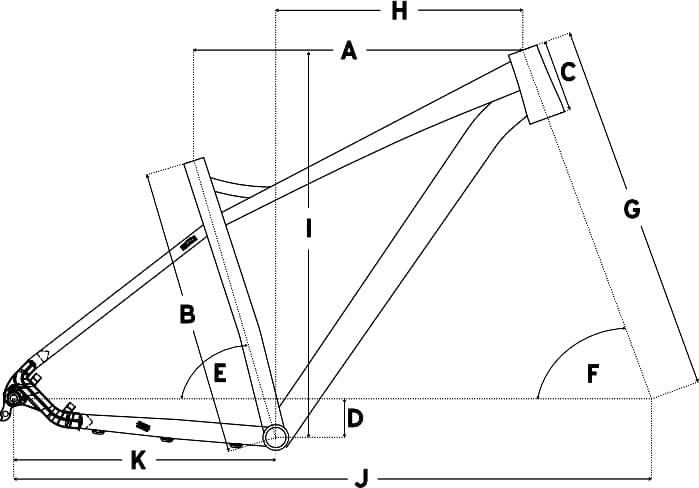

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview
E-Revelo RM joy completes the Head E E Revelo model. There are 8 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
E-Revelo RM joy components
Fork
The E-Revelo RM joy comes factory-installed with the Zoom fork. This has a travel range of 65mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on E-Revelo RM joy are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
