Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Suspension Hardtail -
Motor Bafang 45Nm hub-drive -
Battery Greenway ZZ98, Capacity: 504Wh -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 50/55/59 cm, Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom 187D AMS HLO, Travel: 65mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RD-M300 , 8 speed
Front Derailleur
S-Ride FD-M300,
Shift Levers
S-Ride SL-M300 , 3×8
Crank
Prowheel TY-CM02 , Chainrings: 48-38-28t, length: 175mm
Chain
KMC Z8, 8 speed
Pedals
Wellgo C127DU,
Wheels
Front Hub
Formula DC20, QR, 100mm
Rear Hub
Bafang RMG020, Motor in rear hub, 135mm
Rims
Remerx Dragon 719, 36h
Tires
Impac SmartPac , 28×1.6?
Brakes
Brakes
Clarks Clout 160/160mm, Disc brakes: 160/160mm
Cockpit
Stem
HBC, HBC 50cm-85mm, 55cm-95mm, 59cm -105cm, 25.4mm
Handlebar
HBC, Width: 660mm, 25.4mm
Headset
Neco H113,
Seat
Saddle
HBC VL-4333, Rails: Cr-Mo
Seatpost
HBC, Length: 350mm, 31.6mm
Motor & Battery
Motor
Bafang RMG020, Rear hub motor, max. torque: 45Nm
Battery
Greenway ZZ98, Capacity: 504Wh
Fit data

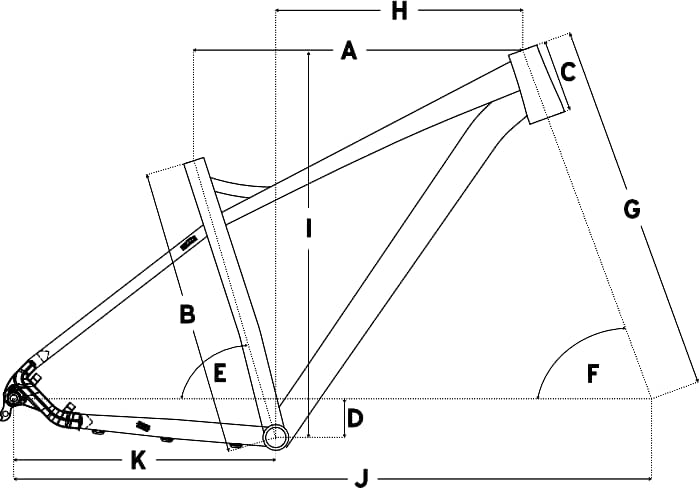

Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 59cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
About this model
E-REVELO RM MEN completes the Head E E Revelo model. 4 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The E-REVELO RM MEN comes factory-installed with the Zoom fork. This has a travel range of 65mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the E-REVELO RM MEN model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
