Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Zoom
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE8014 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 HT, TPR
Suspension Fork
Zoom Vaxa 32S 860S AMS HLO 100mm
Drivetrain
Rear Derailleur
Shimano Acera RDM360 8 speed
Shift Levers
Shimano Altus SLM315 1x8
Cassette
Sunshine MTB-CS-HR8-34 11-34
Crank
Shimano FCE5010 38/175mm
Pedals
Wellgo M272T DU
Wheels
Front Hub
HBC QR 100mm 32h
Rear Hub
HBC QR 135mm 32h
Rims
Remerx Top Disc 32h
Tires
Impac RidgePac 29x2.25”
Brakes
Brakes
Clarks Clout 180/160mm
Cockpit
Stem
HBC 70-90/31.8mm
Handlebar
HBC 720/31.8mm
Headset
Neco H386E
Seat
Saddle
HBC VL-1831
Seatpost
HBC 350-400/31.6mm
Motor & Battery
Motor
Shimano E5000
Battery
Shimano STePS BTE8014 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 51cm | 55cm |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 665 mm | 675 mm | 685 mm |
| Top Tube Length | 593 mm | 612 mm | 612 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 510 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1110 mm | 1120 mm | 1130 mm | 1140 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

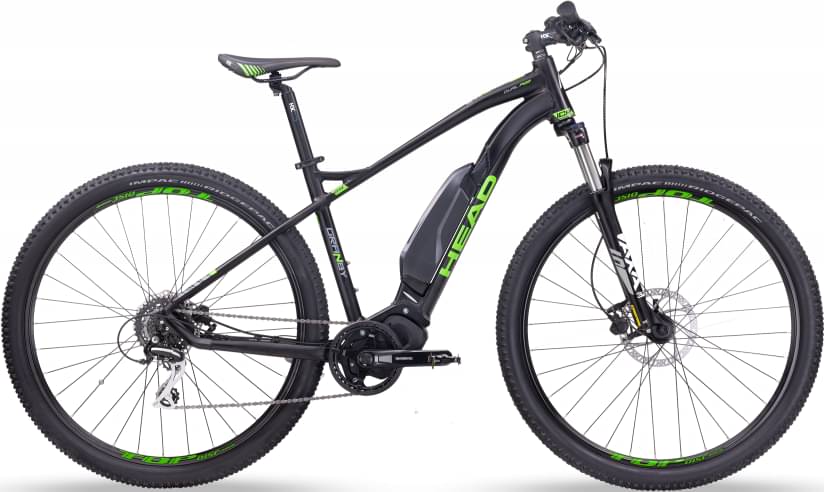

Granby is a Head E Granby model. HEAD released 4 e-bikes variations of this model so far. You can easily view all of the Head E Granby e-bikes models from 2022, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 20.6 kg (45.42 lbs), the Granby model is considerably lighter than average. To sum up, it’s 12.67% lighter than the average weight of Crosscountry e-bikes.
Granby components
Fork
HEAD Granby 2022 e-bike is equipped with the Zoom fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Granby 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. HEAD Granby is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
