Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE8014, Capacity: 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 42/46/51/55cm, Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom Vaxa 32S 860S AMS HLO, Travel: 100mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RDM200 , 8 speed
Shift Levers
S-Ride SLM300 , 1×8
Crank
Shimano FCE5010, Chainring: 38t, length: 175mm
Chain
KMC, Z8
Pedals
Wellgo M272T DU,
Wheels
Front Hub
HBC, QR, 100mm
Rear Hub
HBC, QR, 135mm
Rims
Remerx Top Disc , 32h
Tires
CST Caballero , 29×2.25”
Brakes
Brakes
Clarks Clout , Disc brakes: 180/160mm
Cockpit
Stem
HBC, Length: 41, 46cm – 60mm, 51cm – 70mm, 55cm – 80mm
Handlebar
HBC, Width: 720mm, 31.8mm
Headset
Neco H386E, Sealed bearings
Seat
Saddle
HBC VL-4125, Rails: Cr-Mo
Seatpost
HBC, Length: 42, 46cm – 350mm, 51,55cm – 400mm, 31.6mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Shimano STePS BTE8014, Capacity: 418Wh
Fit data

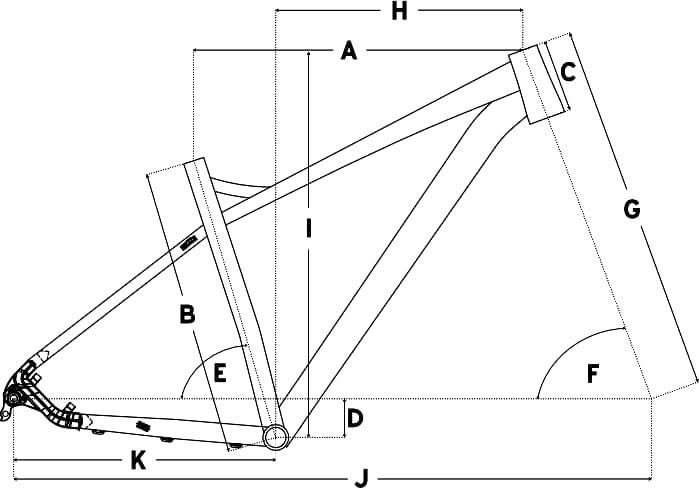

Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 51cm | 55cm |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |

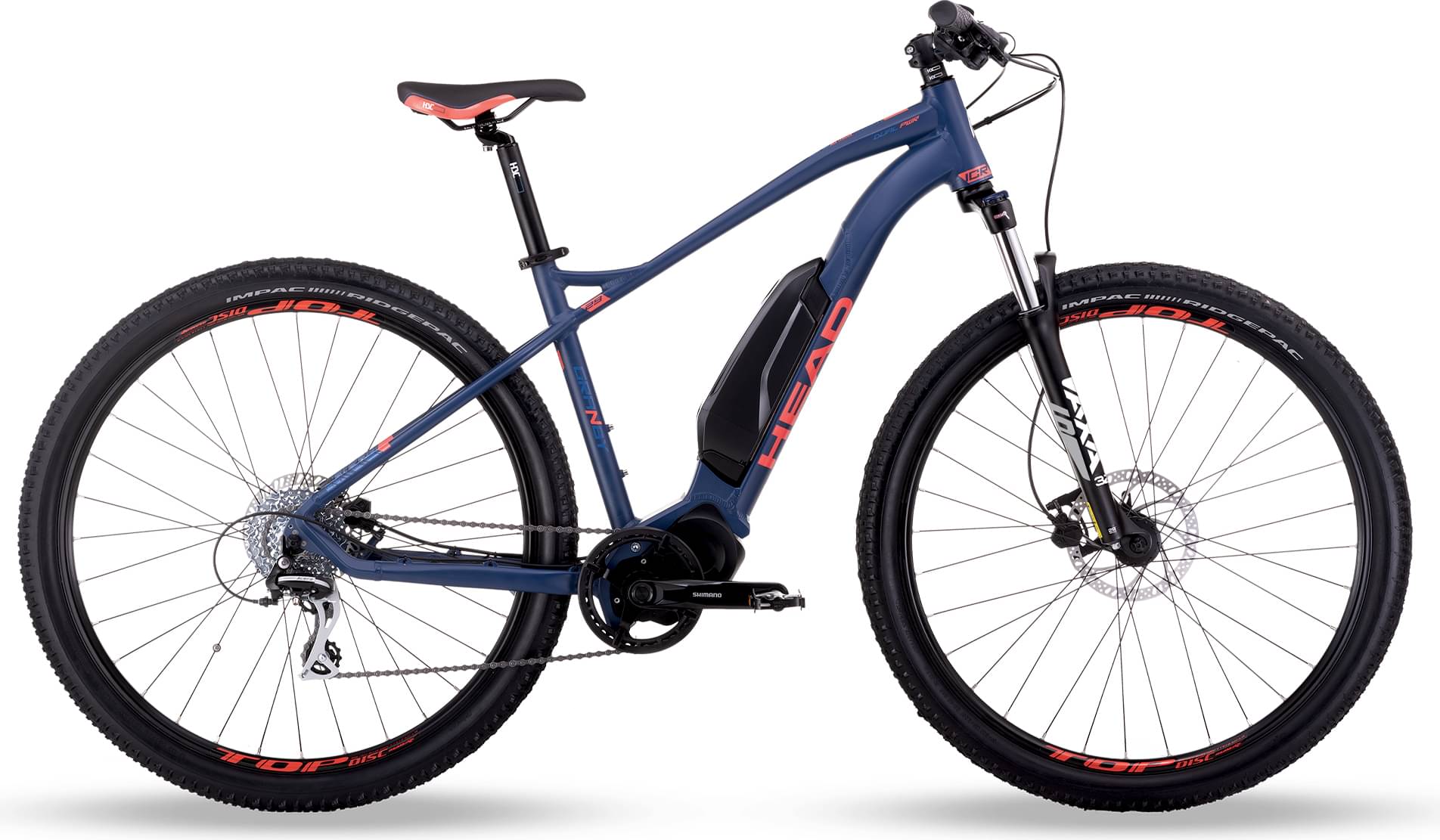

About this model
GRANBY JOY is part of the Head E Granby model. 6 e-bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
GRANBY JOY components
Fork
This e-bike has the Zoom fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The GRANBY JOY 2024 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The GRANBY JOY has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
