Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Zoom
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STePS BTE8014, Capacity: 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, sizes: 42/46/51/55cm, Internal cable routing, hydro-formed tubes, heat-treated
Suspension Fork
Zoom Vaxa 32S 860S AMS HLO, Travel: 100mm, lock-out
Drivetrain
Rear Derailleur
S-Ride RDM200 , 8 speed
Shift Levers
S-Ride SLM300 , 1×8
Crank
Shimano FCE5010, Chainring: 38t, length: 175mm
Chain
KMC, Z8
Pedals
Wellgo M272T DU,
Wheels
Front Hub
HBC, QR, 100mm
Rear Hub
HBC, QR, 135mm
Rims
Remerx Top Disc , 32h
Tires
CST Caballero , 29×2.25”
Brakes
Brakes
Clarks Clout , Disc brakes: 180/160mm
Cockpit
Stem
HBC, Length: 41, 46cm – 60mm, 51cm – 70mm, 55cm – 80mm
Handlebar
HBC, Width: 720mm, 31.8mm
Headset
Neco H386E, Sealed bearings
Seat
Saddle
HBC VL-4125, Rails: Cr-Mo
Seatpost
HBC, Length: 42, 46cm – 350mm, 51,55cm – 400mm, 31.6mm
Motor & Battery
Motor
Shimano STePS DUE5000 , Power 250W, max torque: 40Nm, max support up to 200%
Battery
Shimano STePS BTE8014, Capacity: 418Wh
Fit data

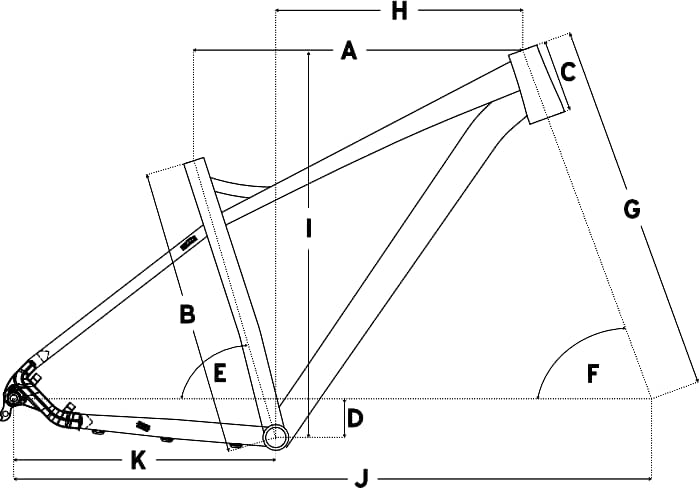

Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 51cm | 55cm |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
GRANBY LADY is part of the Head E Granby model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
GRANBY LADY components
Fork
This e-bike has the Zoom fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, HEAD GRANBY LADY 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. HEAD GRANBY LADY has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
