Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork Zoom
-
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 HT
Suspension Fork
Zoom 187D AMS HLO 65mm
Drivetrain
Rear Derailleur
S-Ride RDM300 9 speed
Front Derailleur
S-Ride FDM300
Shift Levers
S-Ride SLM300 3x9
Cassette
Sunshine MTB-CS-HR9-32 11-32
Crank
Prowheel Zephyr 701 48-36-26/175mm
Pedals
Wellgo C169T 2DU
Wheels
Front Hub
Shimano DH3 100mm
Rear Hub
HBC QR 135mm
Rims
Remerx Dragon 719 32h
Tires
Impac StreetPac RT 28x1.6”
Brakes
Brakes
Clarks Clout 160/160mm
Cockpit
Stem
HBC 90-110/31.8mm
Handlebar
HBC 660/31.8mm
Headset
Neco 113E
Seat
Saddle
HBC VL-4333
Seatpost
HBC 350/27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 59cm |
|---|---|---|---|
| Front Center | 644 mm | 654 mm | 669 mm |
| Top Tube Length | 588 mm | 589 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1088 mm | 1098 mm | 1113 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 |
About this model

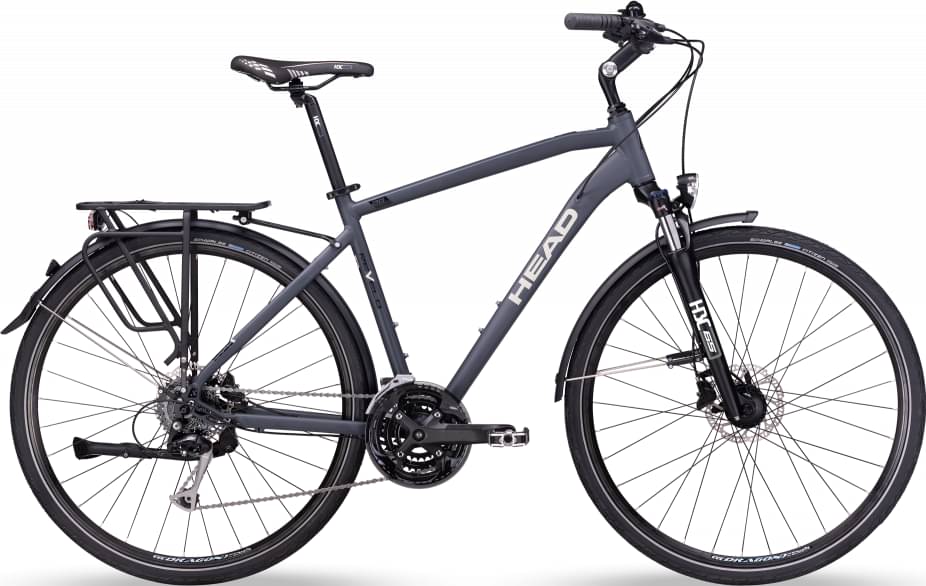

Revelo II men is a Head Revelo model. 8 bikes variations carry this model name so far. You can easily view all of the Head Revelo bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Commuter bikes
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Revelo II men weighs 15.9 kg (35.05 lbs) and is considerably heavier than the average. In other words, this model is 11.27% heavier than the average Commuter bike.
Overview of components
Fork
HEAD Revelo II men 2022 bike is equipped with the Zoom fork, and has 65mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Revelo II men 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. HEAD Revelo II men is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
