Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Darfon 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 HT, full-suspension 140mm travel, integrated battery
Suspension Fork
Rock Shox Recon S RL 29 150mm TPR
Rear Shock
Rock Shox Deluxe Select R 185x55mm Trunnion
Drivetrain
Rear Derailleur
Shimano Deore RDM5120 11 speed
Shift Levers
Shimano Deore SLM5100 1x11
Cassette
Sunrace CSMS7 11-42
Crank
Shimano FCE8000 34/175mm
Pedals
Wellgo M272T DU
Wheels
Front Hub
HBC Pro 15x110mm
Rear Hub
HBC Pro 12x148mm
Rims
ERX 29”/27.5” 32h
Tires
Schwalbe Nobby Nic Performance 29x2.6”/27.5x2.6”
Brakes
Brakes
Shimano MT401 180/180mm
Cockpit
Stem
HBC Pro R-Film 50-70/31.8mm
Handlebar
HBC Pro R-Film 760/31.8mm
Headset
FSA No.57
Seat
Saddle
HBC Pro VL-3381
Seatpost
Kind Shock ETENi 385/31.6mm – travel 100mm
Motor & Battery
Motor
Shimano E7000
Battery
Darfon 630 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 47cm | 51cm |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.56 mm | 1.52 mm |
| Front Center | 728 mm | 749 mm | 770 mm |
| Rake | 57 mm | 58 mm | 57 mm |
| Trail | 90 mm | 89 mm | 90 mm |
| Stack | 656 mm | 665 mm | 675 mm |
| Reach | 409 mm | 426 mm | 444 mm |
| Top Tube Length | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1172 mm | 1193 mm | 1214 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" |
About this model

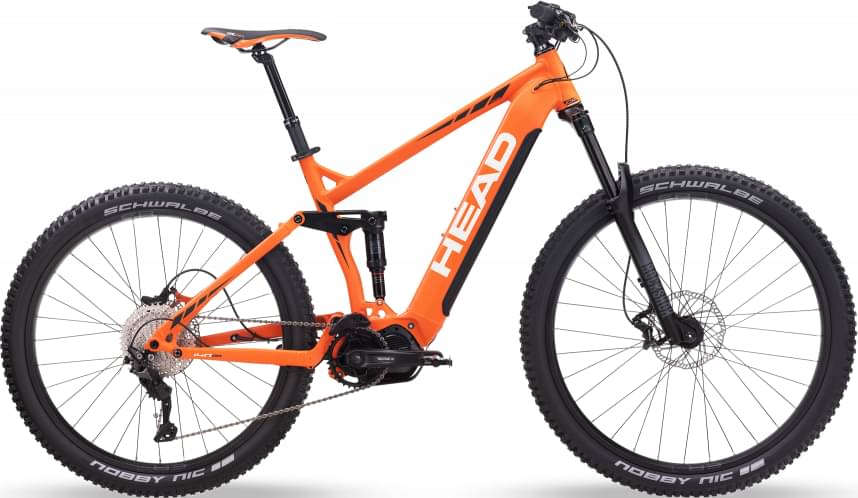

Terni is a Head E Terni model. HEAD launched 4 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.5 kg (54.01 lbs), the Terni model is slightly heavier than average. In short, the average Trail e-bike weight is 3.38% lower than this one.
Terni components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the Rock Shox Deluxe Select R 185x55mm Trunnion model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Terni model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
HEAD Terni comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
