Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Zoom
-
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 HT
Suspension Fork
Zoom HL CH-565 AMS 100mm
Drivetrain
Rear Derailleur
S-Ride RDM200 8 speed
Front Derailleur
S-Ride FDM300
Shift Levers
S-Ride SLM300 2x8
Cassette
Sunshine MTB-CS-HR8-34 11-34
Crank
Prowheel TM-CY01 36-22/175mm
Pedals
Wellgo LU 895DU
Wheels
Front Hub
Formula DC20 QR 100mm
Rear Hub
Formula DC22 QR 135mm
Rims
Remerx Dragon 32h
Tires
Impac Smartpac 27.5x2.1”
Brakes
Brakes
Tektro M280 mechanical 160/160mm
Cockpit
Stem
HBC 70-90/31.8mm
Handlebar
HBC 700/31.8mm
Headset
Neco H148M
Seat
Saddle
HBC VL-1831
Seatpost
HBC 350-400/31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 46cm | 51cm |
|---|---|---|---|
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm |
| Front Center | 638 mm | 658 mm | 671 mm |
| Top Tube Length | 568 mm | 587 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1068 mm | 1088 mm | 1101 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Wheels | 27" | 27" | 27" |
Model Overview

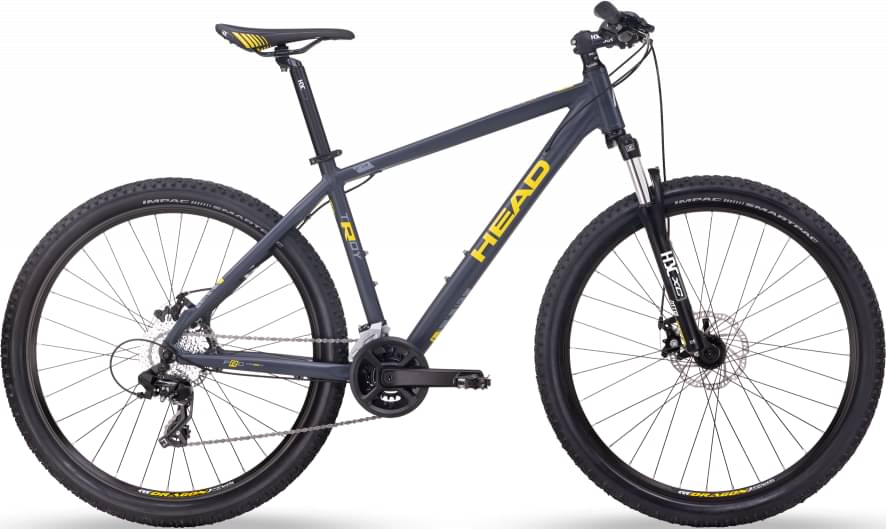

Troy I completes the Head Troy model. HEAD launched 4 bikes of this model so far. You can easily view all of the Head Troy bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Troy I weighs 14.5 kg (31.97 lbs) and is much heavier than the average. In conclusion, the average Crosscountry bike weighs 16.94% less than Troy I.
Troy I components
Fork
The fork installed on this bike is the Zoom model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Troy I bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. HEAD Troy I has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
