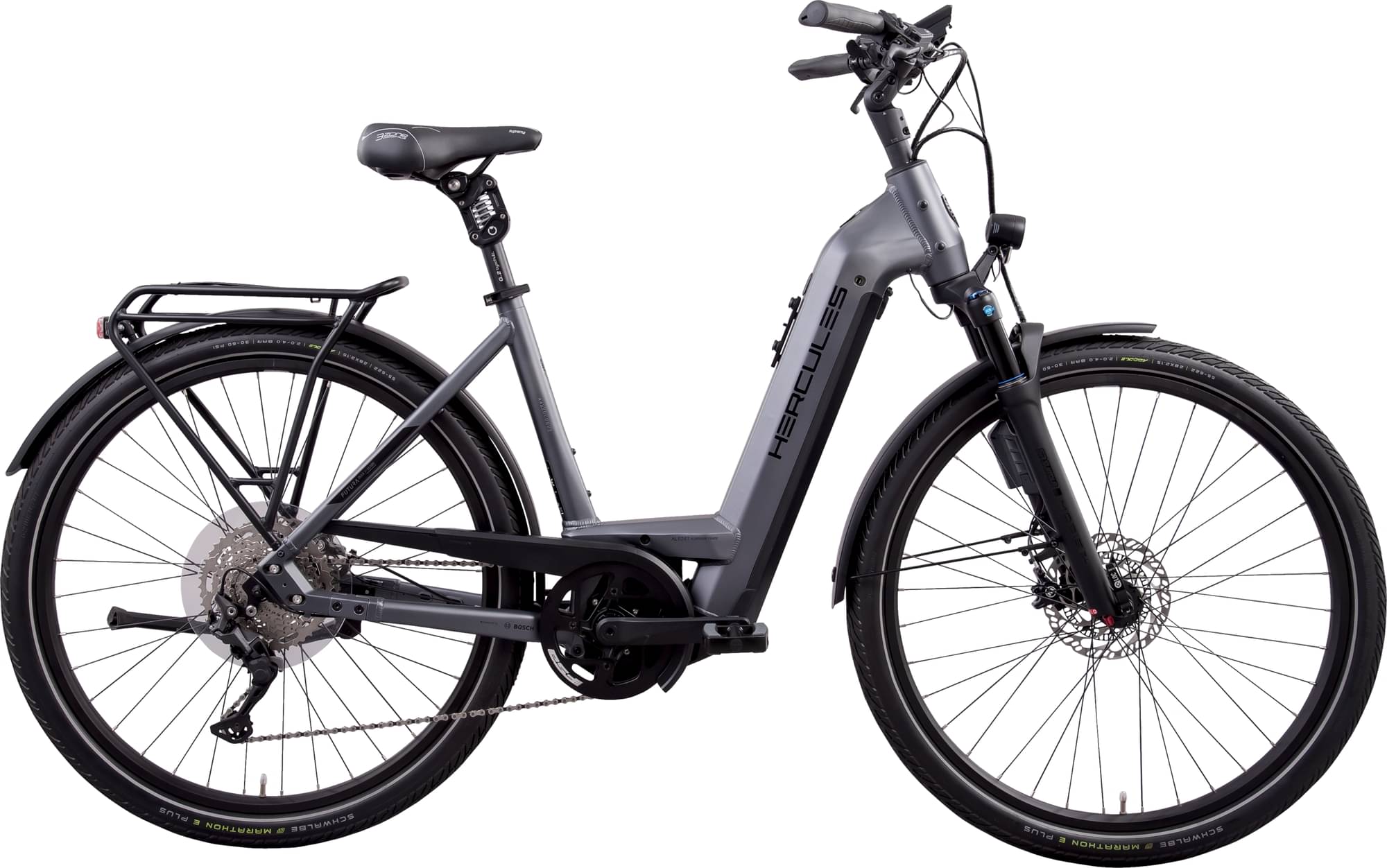

hercules Futura Max I-10 ABS 2023
2023 E-bike
Estimate price |
6,397$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube (Smart System) 750 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR MOBIE 34 ABS, 63 mm travel, air suspension, lockout, 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120
Shift Levers
SHIMANO Deore SL-M4100
Cassette
SHIMANO Deore, CS-M4100 11-46T
Crank
FSA CK-220
Chain
KMC X10E
Wheels
Front Hub
FORMULA DC-51, 15X100 mm, 6-Bolt
Rear Hub
FORMULA DC-51, 15X100 mm, 6-Bolt
Rims
Ryde Andra 40
Tires
SCHWALBE Marathon E-Plus, SmartGuard, Performance, 55-622
Brakes
Brakes
MAGURA CT eStop
Cockpit
Stem
ZECURE UP2+, A-head, adjustable
Handlebar
Trekking ZECURE, AL, 31.8 mm, 35° backsweep
Seat
Saddle
Selle Bassano Suprema 3Zone City
Seatpost
BySchulz G2, 350 mm, Ø31.6 mm, 30 mm travel
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) 25/85Nm
Battery
Bosch PowerTube (Smart System) 750
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 53cm | 57cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.49 mm | 1.51 mm | 1.51 mm |
| Front Center | 680 mm | 680 mm | 682 mm | 696 mm |
| Rake | 39 mm | 39 mm | 36 mm | 39 mm |
| Trail | 92 mm | 92 mm | 95 mm | 92 mm |
| Stack | 624 mm | 624 mm | 633 mm | 643 mm |
| Reach | 418 mm | 418 mm | 420 mm | 427 mm |
| Top Tube Length | 609 mm | 609 mm | 614 mm | 624 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1154 mm | 1154 mm | 1156 mm | 1170 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Futura Max I-10 ABS completes the Hercules E Futura model. 23 e-bikes variations carry this model name so far. You can easily view all of the Hercules E Futura e-bikes models from 2023, here.
Model range prices
Hercules Futura Sport I-8 2023 is the most affordable e-bike of this model and has a price of 3503$. On the other hand, Hercules Futura Pro I-F14 2023, is the most expensive and costs 7431$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 5839$. In conclusion, this e-bike price is 127.29% higher than the price of the average Commuter e-bike.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Hercules Futura Max I-10 ABS 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Hercules Futura Max I-10 ABS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Hercules Futura Max I-10 ABS comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
