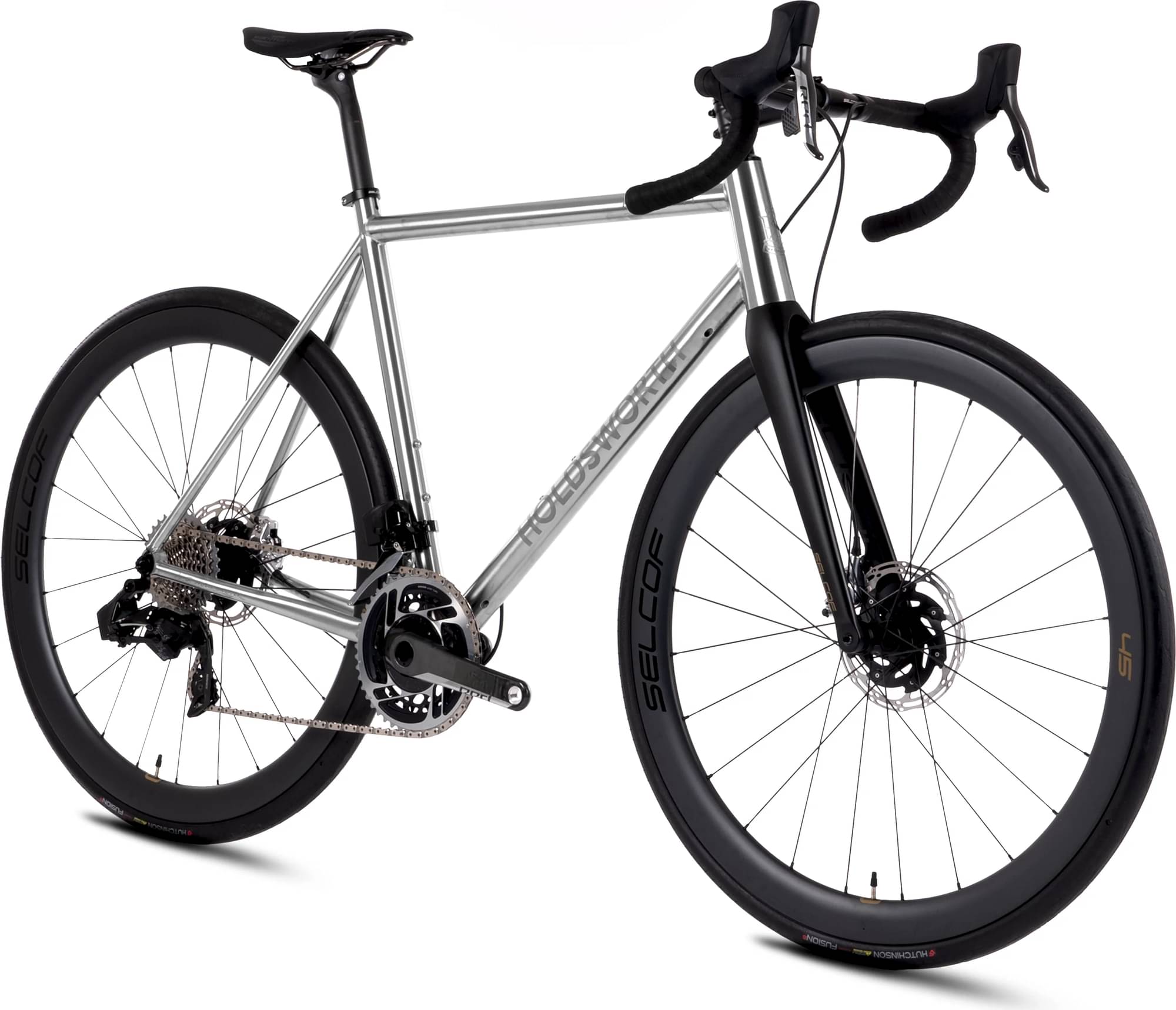

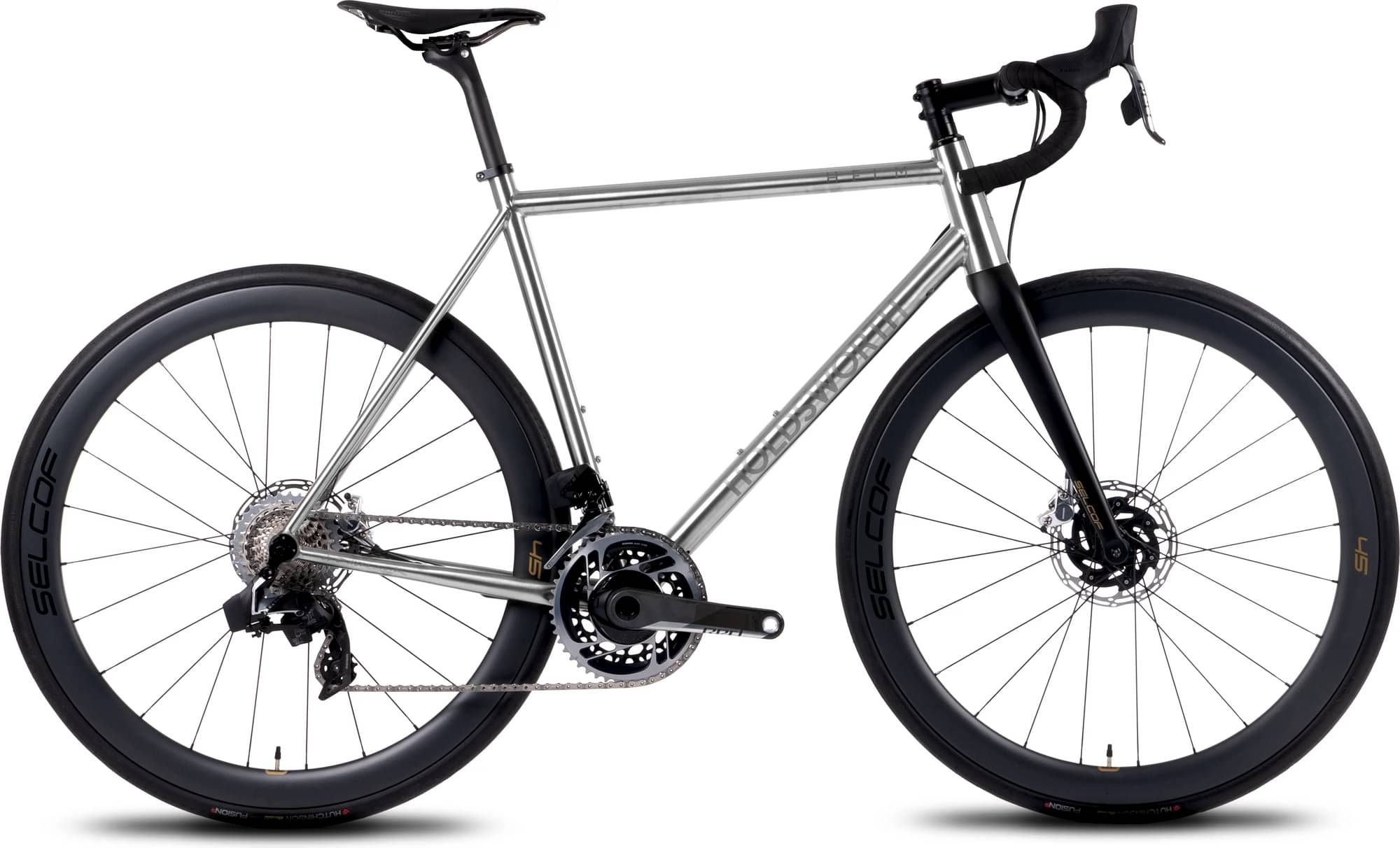

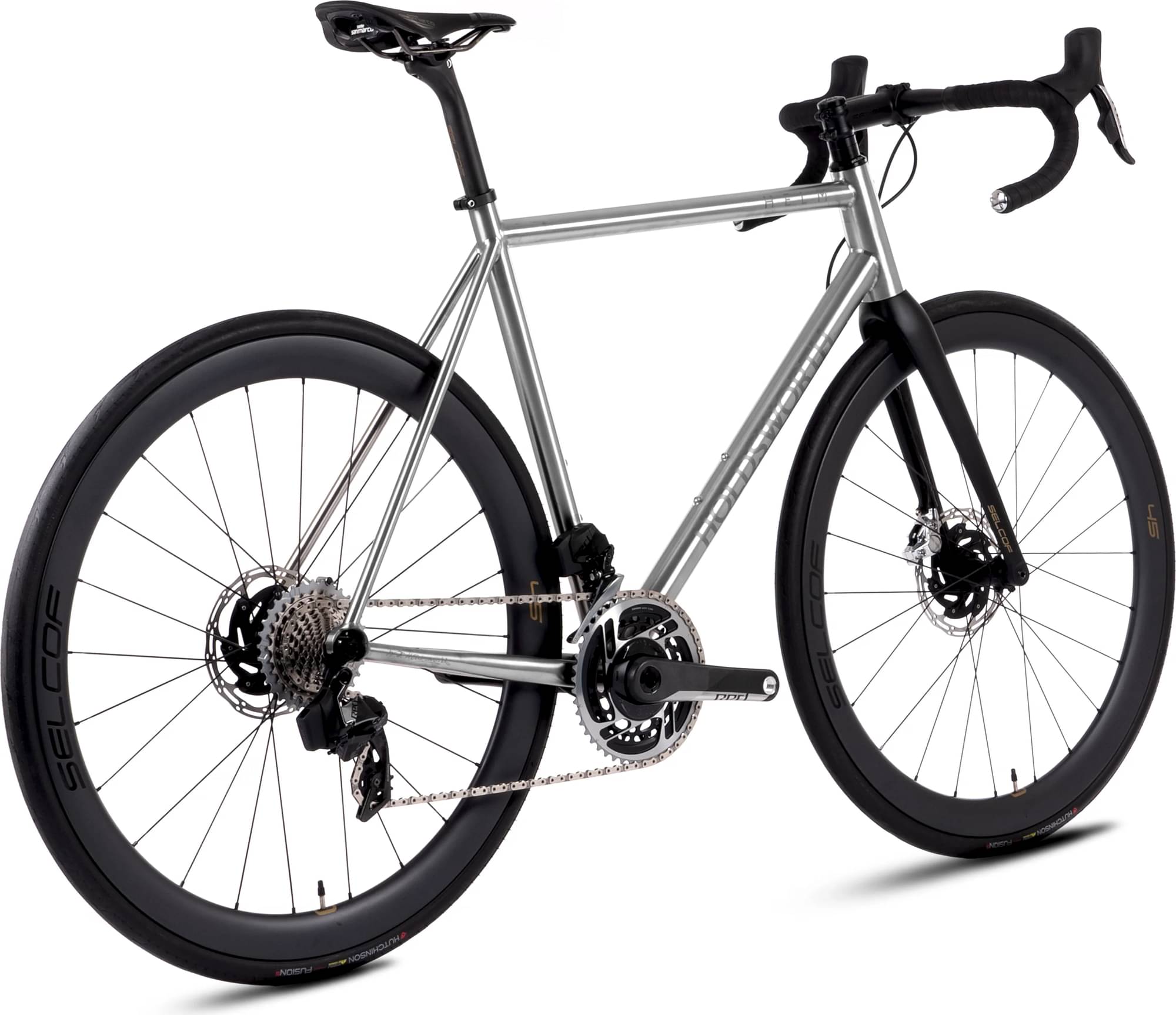

Holdsworth Helm SRAM Red AXS Titanium 2023
2023 Road
Estimate price |
6,690$
Weight | 8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Holdsworth Helm Titanium Road Frame / Medium - 53.5cm
Suspension Fork
Selcof Road Disc Carbon Fork / Matt Black
Drivetrain
Rear Derailleur
SRAM Red AXS 12 Speed Rear Mech / Max 36 Tooth
Front Derailleur
SRAM Red AXS Front Mech / Braze On
Cassette
SRAM Red XG-1290 12 Speed Cassette / 10-33 Tooth
Crank
SRAM Red AXS Power Meter 12 Speed Chainset / 172.5mm / 46-33 Tooth
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide
Chain
SRAM Red AXS 12 Speed Chain / 120 Link
Wheels
Rims
Selcof 55 Carbon Disc Wheels / Shimano Road 11/12 Speed
Tires
Hutchinson Fusion 5 Performance 700c Folding Tyre / 25mm / Tan
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V3 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Shortfit Open-Fit Start-Up Superwide Saddle / Xsilite Rail
Seatpost
Selcof Delta HM Carbon Seat Post / Matt / 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XSM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.425 mm | 1.433 mm | 1.435 mm | 1.445 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 264 mm | 264 mm | 266 mm |
| Front Center | 552 mm | 568 mm | 584 mm | 600 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 46 mm |
| Trail | 65 mm | 62 mm | 62 mm | 59 mm | 58 mm |
| Stack | 505 mm | 526 mm | 543 mm | 564 mm | 581 mm |
| Reach | 355 mm | 369 mm | 379 mm | 393 mm | 402 mm |
| Top Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 485 mm | 515 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 955 mm | 972 mm | 988 mm | 1004 mm | 1020 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Helm SRAM Red AXS Titanium is a Holdsworth Helm model. Holdsworth launched 7 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Holdsworth Helm SRAM Force 22 Titanium 2023 is the cheapest bike model and costs 3161$. Holdsworth Helm Shimano Dura-Ace Di2 Titanium 2023 is the most expensive one and costs 6689$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Holdsworth Helm SRAM Red AXS Titanium price was 6081$. Comparing this to the average Race bike price, we see that the price is 81.52% more expensive.
Race bikes average weight
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Helm SRAM Red AXS Titanium has a weight of 8 kg (17.64 lbs). To sum up, it’s 17.3% heavier than the average weight of Race bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Helm SRAM Red AXS Titanium are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Helm SRAM Red AXS Titanium comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
