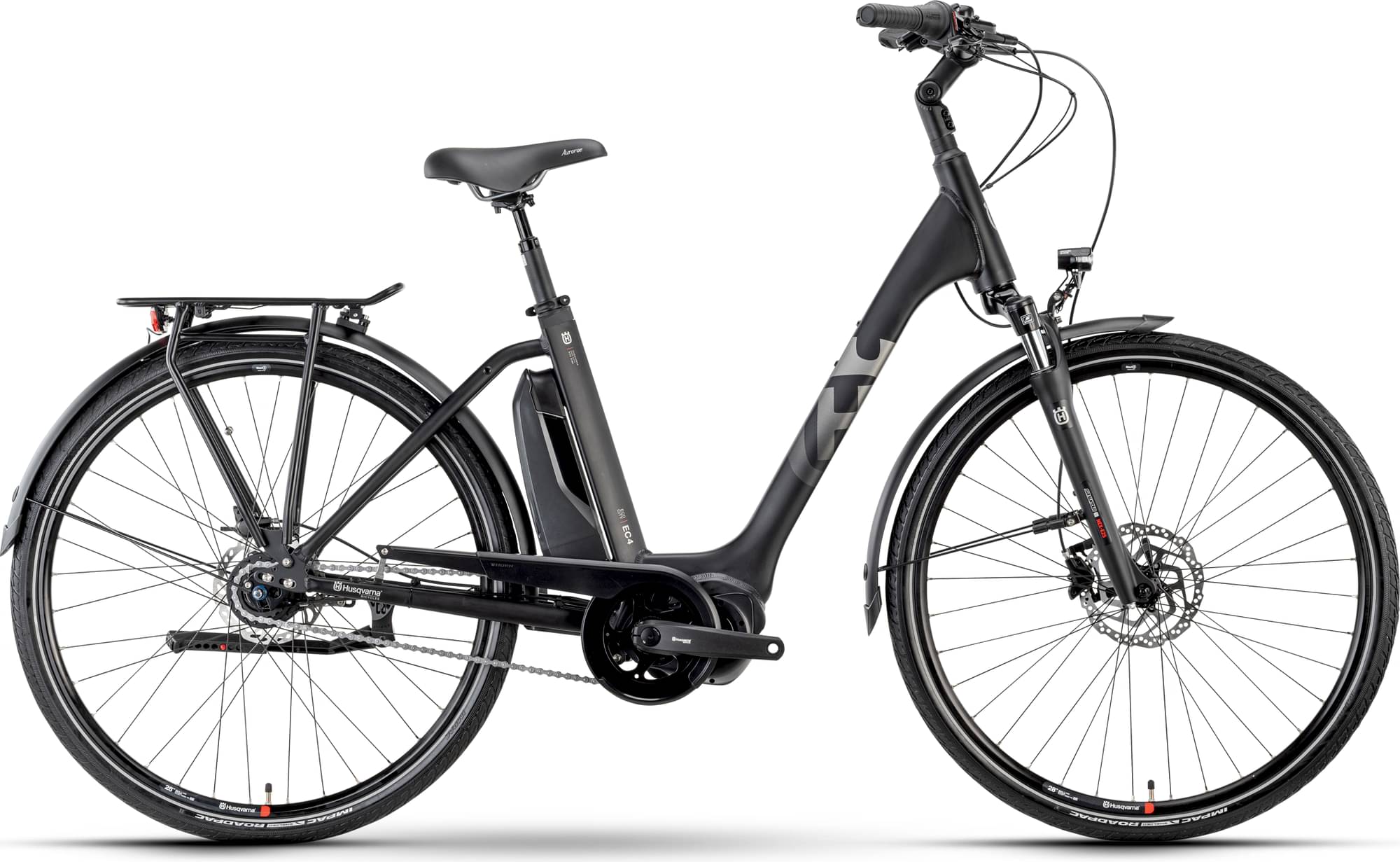

Husqvarna Eco City 4 FW 2021
2021 E-bike
Estimate price |
3,373$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Pack SH1, 504 Wh, 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Seattube Akku
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 50 mm
Drivetrain
Shift Levers
Shimano Nexus, SL-C6000-8, Revoshift
Cassette
Shimano SM-Gear, 19
Crank
Husqvarna, 38 T
Chain
Z1 Wide EPT
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 630E, With eyelets, Tubeless ready / Hub: Shimano Tourney TX505, Center lock, 9x100 mm, Quick-release axle, Rear: Rim: Mach 1 630E, With eyelets, Tubeless ready / Hub: Shimano Nexus, SG-C6001, Center lock, 10x135 mm, Threaded axle
Tires
Impac Roadpac, 47-622, 28x1.85,
Brakes
Brakes
Front: Shimano BR-MT200, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31.8, Ahead, adjustable
Handlebar
Husqvarna Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
Husqvarna Ergo, Schraubgriffe
Headset
Husqvarna ZS44/ZS56
Seat
Saddle
Husqvarna
Seatpost
Husqvarna, 30.9 mm, Patent
Motor & Battery
Motor
Shimano E6110, DU-E6110, 250 W, 60 Nm
Battery
Pack SH1, 504 Wh, 36 V
Charger
Charger SH, 2 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.568 mm | 1.566 mm |
| Front Center | 684 mm | 694 mm | 705 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm |
| Stack | 659 mm | 668 mm | 678 mm |
| Reach | 419 mm | 426 mm | 433 mm |
| Top Tube Length | 620 mm | 630 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 485 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 195 mm | 205 mm |
| Chainstay Length | 540 mm | 545 mm | 540 mm |
| Wheelbase | 1217 mm | 1232 mm | 1238 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Eco City 4 FW belongs to the Husqvarna E Eco model. 7 e-bikes variations carry this model name so far. You can easily view all of the Husqvarna E Eco e-bikes models from 2021, here.
Model range prices
Husqvarna Eco City 1 2021 is the cheapest e-bike model and costs 2540$. Husqvarna Eco City 4 FW 2021 is the most expensive one and costs 3070$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for General Urban e-bikes
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, this doesn’t mean that if you spend less money on a General Urban e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3070$. Comparing this to the average General Urban e-bike price, we see that the price is 46.33% more expensive.
Average weight for General Urban e-bikes
The average weight for General Urban e-bikes is 24.08 kg (53.09 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Eco City 4 FW weighs 24.5 kg (54.01 lbs) and is slightly heavier than the average. To sum up, it’s 1.74% heavier than the average weight of General Urban e-bikes.
Eco City 4 FW components
Fork
The Eco City 4 FW comes factory-installed with the Suntour NEX fork. This has a travel range of 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Eco City 4 FW e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Husqvarna Eco City 4 FW has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
