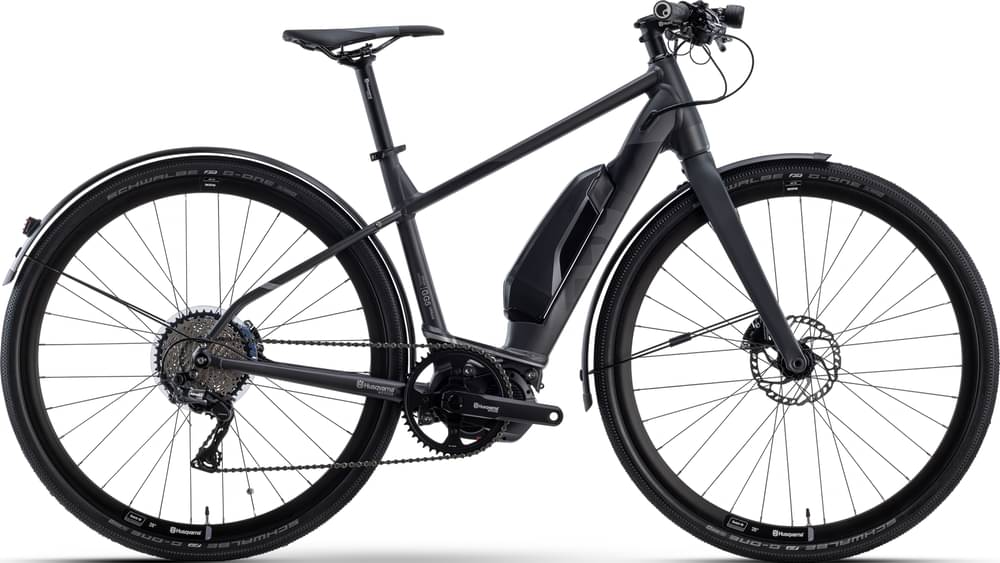

Husqvarna Gran Gravel 5 Urban 2021
2021 E-bike
Estimate price |
4,931$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061, Gravel, Skeleton Interface, Integrated Battery, 12x142mm
Suspension Fork
Husqvarna, Carbon rigid, Tapered
Drivetrain
Shift Levers
Shimano SW-E7000-L
Chain
KMC X11e
Wheels
Rims
28"/622mm
Tires
Schwalbe G-One Bite, Performance, Race Guard, 40-622, 28x1.50
Brakes
Brakes
Shimano BRX400, hydr. Disc
Cockpit
Stem
Husqvarna 31.8, 90mm, -8°
Handlebar
Husqvarna Gravel31.8, 700mm, Sweep: 9°, Rise: 0mm
Seat
Saddle
Husqvarna Gravel
Seatpost
Husqvarna 31.6, Alloy, S/M: 350mm, L/XL: 450mm
Motor & Battery
Motor
Shimano STePS DU-E7000, 250W, 60Nm
Remote
Shimano SC-E7000, LED-Display, ANT+ & Bluetooth
Charger
Shimano EC-E6000-1, Fast Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.75 mm | 1.64 mm | 1.55 mm |
| Bottom Bracket Height | 421 mm | 421 mm | 421 mm |
| Front Center | 570 mm | 604 mm | 639 mm |
| Rake | -2 mm | -2 mm | -2 mm |
| Trail | 122 mm | 122 mm | 122 mm |
| Stack | 579 mm | 593 mm | 607 mm |
| Reach | 331 mm | 361 mm | 391 mm |
| Top Tube Length | 500 mm | 534 mm | 568 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 990 mm | 1025 mm | 1060 mm |
| Bottom Bracket Drop | -72 mm | -72 mm | -72 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Gran Gravel 5 Urban completes the Husqvarna E Gran model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Husqvarna Gran Gravel 5 Urban 2021 is the most affordable e-bike of this model and has a price of 4565$. On the other hand, Husqvarna Gran Gravel 6 2021, is the most expensive and costs 5202$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 4565$. Doing a quick comparison, we notice that Gran Gravel 5 Urban price is 25.34% more expensive than the average cost of a Gravel e-bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Gran Gravel 5 Urban model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Gran Gravel 5 Urban comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Gran Gravel 5 Urban comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
