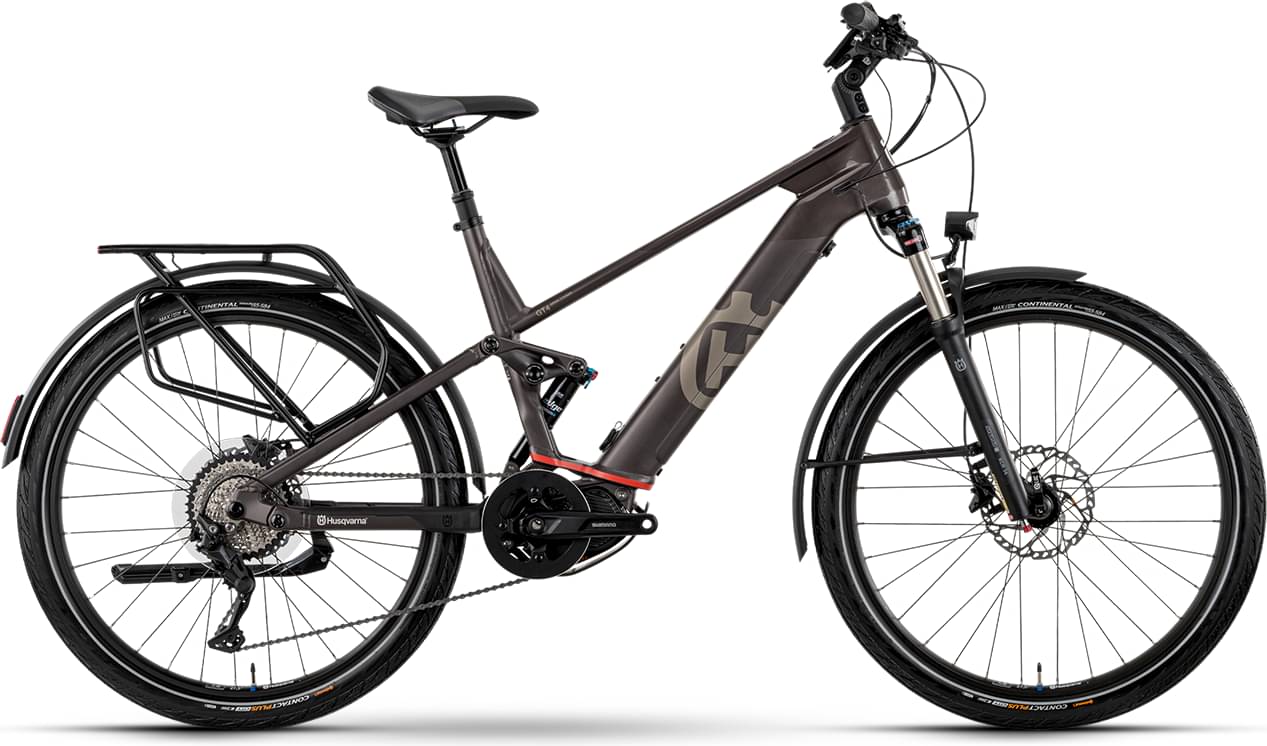

Husqvarna Gran Tourer GT4 2022
2022 E-bike
Estimate price |
6,536$
Weight | 28.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR Air -
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Core S1, 630 Wh, 36 V, 17.5 Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Full Active 4-Link, Integrated battery, Boost, 100 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LOR, remote lockout, Air, 100 mm, tapered
Rear Shock
SR SUNTOUR EDGE LOR, Air, 185x50 mm, Trunnion
Drivetrain
Rear Derailleur
Tektro RD-M350, 9-S
Shift Levers
Tektro SL-M350R
Cassette
Tektro CS-M350, 11-46 T
Crank
Husqvarna, Narrow Wide, 38 T
Chain
KMC e9S
Chain Guide
Direct Mount
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Ryde Disc26, With eyelets / Hub: Husqvarna DA210F, Center lock, 15x110 mm, thru axle, Rear: Rim: Ryde Disc26, With eyelets / Hub: Husqvarna DA210R, Center lock, 12x148 mm, thru axle
Tires
Continental CONTACT Plus City, Reflex, 55-584, 27.5x2.2,
Brakes
Brakes
Front: Tektro Vela, 2-piston, Hydraulic disc brake, Rear: Tektro Vela, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31.8, Ahead, adjustable
Handlebar
Husqvarna Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 20 mm
Grips
Husqvarna Ergo, Lock-on grips
Headset
Husqvarna ZS44/ZS56
Seat
Saddle
Husqvarna Vivo, by Selle Royal
Seatpost
Husqvarna, 31.6 mm
Motor & Battery
Motor
Shimano EP8, DU-EP800, 250 W, 85 Nm
Battery
Core S1, 630 Wh, 36 V, 17.5 Ah
Charger
Charger S, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.317 mm | 1.276 mm | 1.261 mm | 1.212 mm |
| Front Center | 722 mm | 737 mm | 765 mm | 785 mm |
| Rake | 37 mm | 37 mm | 38 mm | 38 mm |
| Trail | 82 mm | 82 mm | 81 mm | 81 mm |
| Stack | 606 mm | 606 mm | 624 mm | 624 mm |
| Reach | 460 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 608 mm | 623 mm | 648 mm | 668 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1180 mm | 1195 mm | 1223 mm | 1243 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Gran Tourer GT4 belongs to the Husqvarna E Gran model. Husqvarna launched 20 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Husqvarna Gran Tourer GT1 2022 is the cheapest e-bike model and costs 4235$. Husqvarna Gran Tourer GT5 2022 is the most expensive one and costs 6564$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring e-bikes average price
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 6035$. Comparing this to the average Touring e-bike price, we see that the price is 148.46% higher.
Touring e-bikes average weight
If we make a quick analysis of the average weight of a Touring e-bike, we get 25.55 kg (56.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 28.6 kg (63.05 lbs), Husqvarna e-bike is considerably heavier than average. In other words, this model is 11.94% heavier than the average Touring e-bike.
Overview of components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Gran Tourer GT4 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Husqvarna Gran Tourer GT4 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
