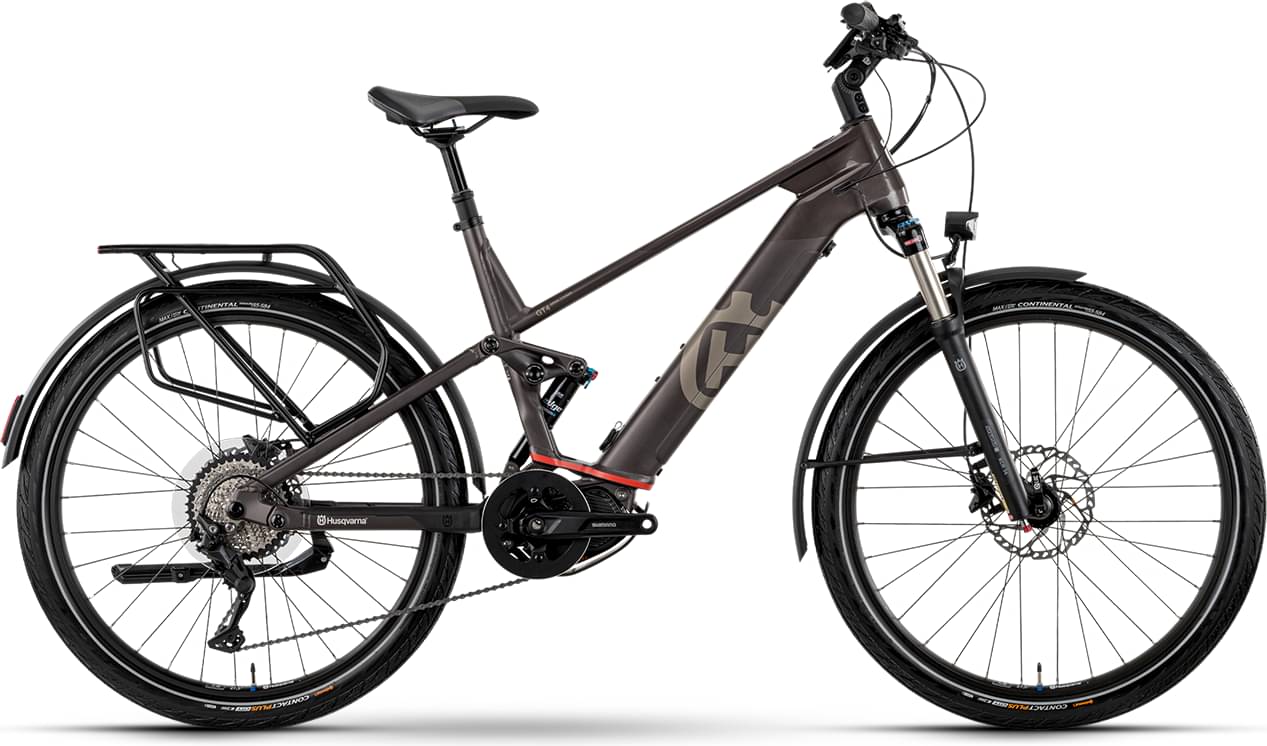

Husqvarna Gran Tourer GT4 2023
2023 E-bike
Estimate price |
6,630$
Weight | 28.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR Air -
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Core S1+, 630 Wh, 36 V, 17.5 Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Full Active 4-Link, Integrated battery, Boost, 100 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LOR, remote lockout, Air, 100 mm, tapered
Rear Shock
SR SUNTOUR EDGE LOR, Air, 185x50 mm, Trunnion
Drivetrain
Rear Derailleur
Tektro RD-M350, 9-S
Shift Levers
Tektro SL-M350R
Cassette
Tektro CS-M350, 11-46 T
Crank
Husqvarna, Narrow Wide, 38 T
Chain
KMC e9S
Chain Guide
Direct Mount
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Ryde Disc26, With eyelets / Hub: Husqvarna DA210F, Center lock, 15x110 mm, thru axle, Rear: Rim: Ryde Disc26, With eyelets / Hub: Husqvarna DA210R, Center lock, 12x148 mm, thru axle
Tires
Schwalbe BIG BEN PLUS, Reflex, 55-584, 27.5x2.15,
Brakes
Brakes
Front: Tektro Vela, 2-piston, Hydraulic disc brake, Rear: Tektro Vela, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31.8, Ahead, adjustable
Handlebar
Husqvarna Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 20 mm
Grips
Husqvarna Ergo, Lock-on grips
Headset
Husqvarna ZS44/ZS56
Seat
Saddle
Husqvarna Vivo, by Selle Royal
Seatpost
Husqvarna, 31.6 mm
Motor & Battery
Motor
Shimano EP6, DU-EP600, 250 W, 85 Nm
Battery
Core S1+, 630 Wh, 36 V, 17.5 Ah
Charger
Charger S, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.317 mm | 1.276 mm | 1.261 mm | 1.212 mm |
| Front Center | 722 mm | 737 mm | 765 mm | 785 mm |
| Rake | 37 mm | 37 mm | 38 mm | 38 mm |
| Trail | 82 mm | 82 mm | 81 mm | 81 mm |
| Stack | 606 mm | 606 mm | 624 mm | 624 mm |
| Reach | 460 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 608 mm | 623 mm | 648 mm | 668 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1180 mm | 1195 mm | 1223 mm | 1243 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Gran Tourer GT4 is a Husqvarna E Gran model. 20 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Husqvarna Gran Tourer GT2 2023 is the cheapest e-bike model and costs 4658$. Husqvarna Gran Tourer GT5 2023 is the most expensive one and costs 6564$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring e-bikes
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 6035$. In conclusion, this e-bike price is 148.46% higher than the price of the average Touring e-bike.
Touring e-bikes average weight
Touring e-bikes have an average weight of 25.55 kg (56.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 28.6 kg (63.05 lbs), Husqvarna e-bike is considerably heavier than average. To sum up, it’s 11.94% heavier than the average weight of Touring e-bikes.
Gran Tourer GT4 components
Fork
The Gran Tourer GT4 comes factory-installed with the Suntour XCR Air fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Gran Tourer GT4 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Gran Tourer GT4 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Gran Tourer GT4 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
