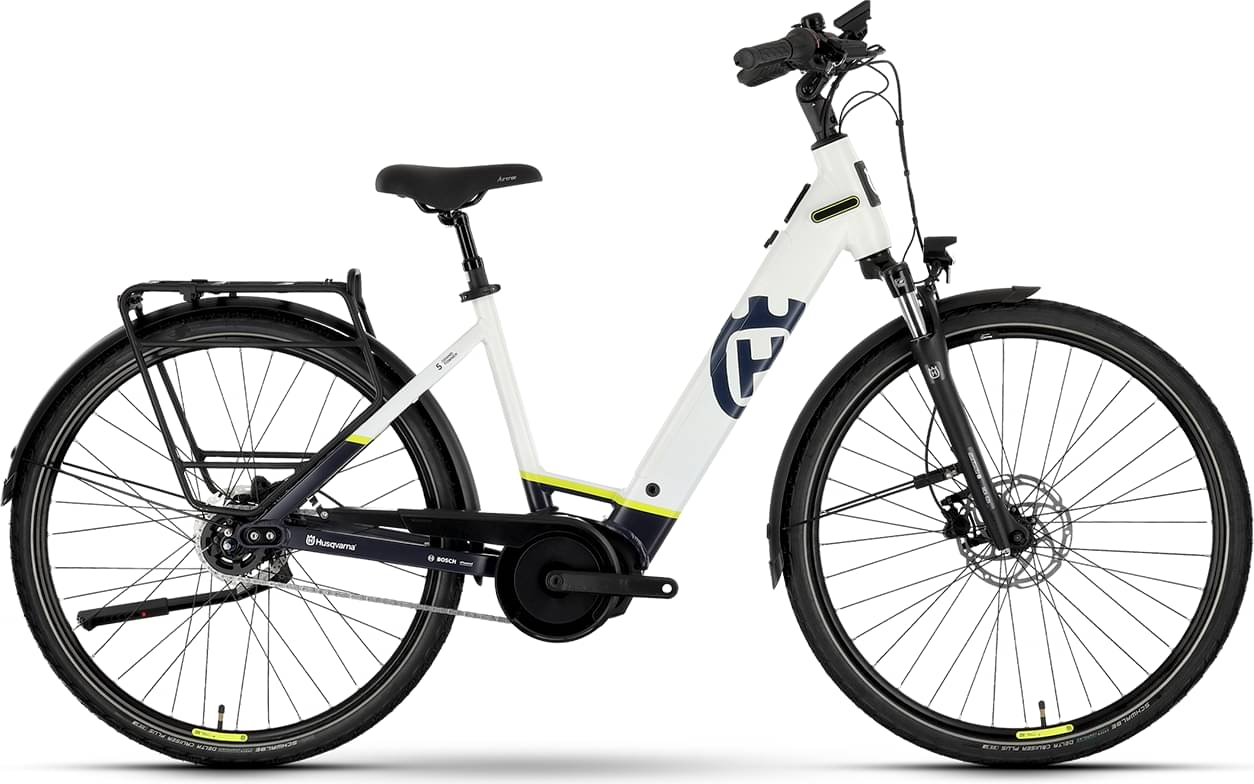

Husqvarna Grand Towner 5 FW 2023
2023 E-bike
Estimate price |
4,420$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, 625 Wh, 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 63 mm
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000-5, Revoshift
Cassette
Shimano CS-C7000
Crank
Husqvarna, 38 T
Chain
KMC Z1eHX EPT
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 630E, With eyelets / Hub: Husqvarna DN618F, Center lock, 9x100 mm, Quick-release axle, Rear: Rim: Mach 1 630E, With eyelets / Hub: Shimano Nexus SG-C7000
Tires
Schwalbe Delta Cruiser Plus, Active, Reflex, 47-622, 28x1.75,
Brakes
Brakes
Front: Tektro HD-T280, 2-piston, Hydraulic disc brake, Rear: Tektro HD-T280, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31.8, Ahead, adjustable
Handlebar
Husqvarna Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 20 mm
Grips
Husqvarna Ergo, Schraubgriffe
Headset
Acros AZX-579 ZS56/ZS56
Seat
Saddle
Husqvarna
Seatpost
Husqvarna, 31.6 mm, Patent
Motor & Battery
Motor
Bosch Performance Line, 250 W, 75 Nm
Battery
Bosch PowerTube, 625 Wh, 36 V
Charger
Bosch 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | SM | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.39 mm | 1.56 mm | 1.53 mm |
| Front Center | 702 mm | 698 mm | 725 mm | 741 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 97 mm | 96 mm | 97 mm | 97 mm |
| Stack | 651 mm | 592 mm | 670 mm | 679 mm |
| Reach | 415 mm | 426 mm | 430 mm | 443 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 460 mm | 430 mm | 490 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 170 mm | 200 mm | 210 mm |
| Chainstay Length | 492 mm | 467 mm | 492 mm | 492 mm |
| Wheelbase | 1188 mm | 1162 mm | 1211 mm | 1227 mm |
| Bottom Bracket Drop | 60 mm | 40 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
Grand Towner 5 FW completes the Husqvarna E Grand Towner model. Husqvarna launched 4 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Husqvarna Grand Towner 4 FW 2023 is the cheapest e-bike model and costs 3811$. Husqvarna Grand Towner 5 CB 2023 is the most expensive one and costs 4023$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4023$. Doing a quick comparison, we notice that Grand Towner 5 FW price is 64% more expensive than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, Grand Towner 5 FW has a weight of 26.2 kg (57.76 lbs). In conclusion, the average Crosscountry e-bike weighs 12.88% less than Grand Towner 5 FW.
Overview of components
Fork
Husqvarna Grand Towner 5 FW 2023 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Husqvarna Grand Towner 5 FW 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
