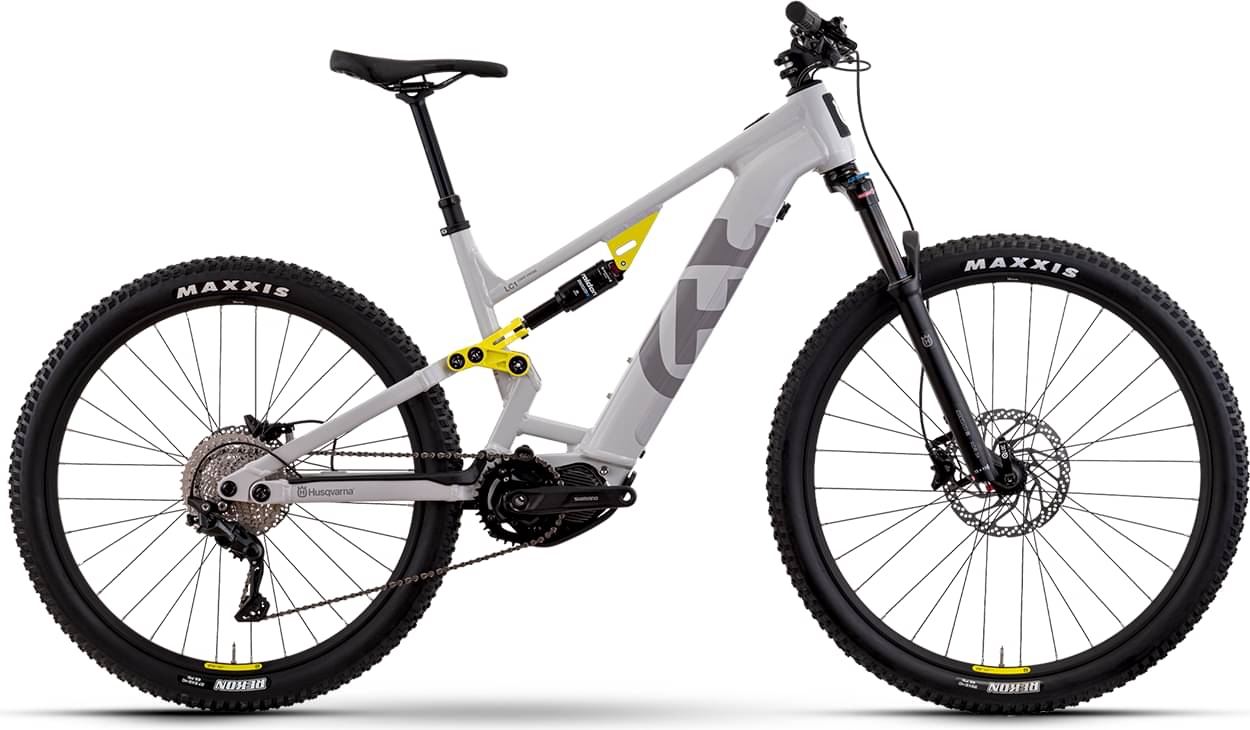

Husqvarna Light Cross LC1 2023
2023 E-bike
Estimate price |
5,234$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour XCR Air
-
Groupset Tektro EDRIVE 9 -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Core S1+, 504 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29/27.5", Alloy 6061, Integrated battery, Boost, New HQV Alloy, 120 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LOR, remote lockout, Air, 120 mm, tapered
Rear Shock
SR SUNTOUR Raidon R, Air, 190x45 mm
Drivetrain
Rear Derailleur
Tektro RD-M350, 9-S
Shift Levers
Tektro SL-M350R
Cassette
Tektro CS-M350, 11-46 T
Crank
Husqvarna, Narrow Wide, 34 T
Chain
KMC e9S
Chain Guide
Husqvarna CGU
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, Center lock, 15x110 mm, thru axle, Rear: Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, Center lock, 12x148 mm, thru axle
Tires
Maxxis Rekon, 62-622, 29x2.4, Tubeless ready
Brakes
Brakes
Front: Tektro Draco, 2-piston, Hydraulic disc brake, Rear: Tektro Draco, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 35, 0 °, Ahead
Handlebar
Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips
Husqvarna MTB, Lock-on grips
Headset
Acros ICR, blocklock, ZS56/ZS56
Seat
Saddle
Husqvarna MTB
Seatpost
Husqvarna, 31.6 mm, Dropper post
Motor & Battery
Motor
Shimano EP6, DU-EP600, 250 W, 85 Nm
Battery
Core S1+, 504 Wh, 36 V
Charger
Charger S, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.4 mm | 1.34 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 714 mm | 746 mm | 777 mm | 806 mm |
| Rake | 44 mm | 37 mm | 37 mm | 37 mm |
| Trail | 107 mm | 114 mm | 114 mm | 114 mm |
| Stack | 592 mm | 626 mm | 639 mm | 649 mm |
| Reach | 408 mm | 433 mm | 458 mm | 483 mm |
| Top Tube Length | 565 mm | 602 mm | 631 mm | 659 mm |
| Seat Tube Angle | 75.3 ° | 75.1 ° | 75 ° | 74.9 ° |
| Seat Tube Length | 410 mm | 435 mm | 460 mm | 485 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 130 mm | 130 mm | 145 mm | 155 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1151 mm | 1183 mm | 1214 mm | 1243 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Light Cross LC1 completes the Husqvarna E Light model. There are 15 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Husqvarna Light Cross LC1 2023 is the most economical model, with a starting price of 4764$. Husqvarna Light Cross LC6 2023 on the other hand costs 7305$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4764$. Comparing this to the average Trail e-bike price, we see that the price is 41.58% higher.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Light Cross LC1 has a weight of 24.5 kg (54.01 lbs). In short, the average Trail e-bike weight is 3.38% lower than this one.
Overview of components
Fork
This e-bike has the Suntour XCR Air fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Light Cross LC1 has a rear shock with a travel of 120mm. The model SR SUNTOUR Raidon R is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Light Cross LC1 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Husqvarna Light Cross LC1 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Husqvarna Light Cross LC1 includes a dropper post. Therefore, climbing or descending will be a breeze.
