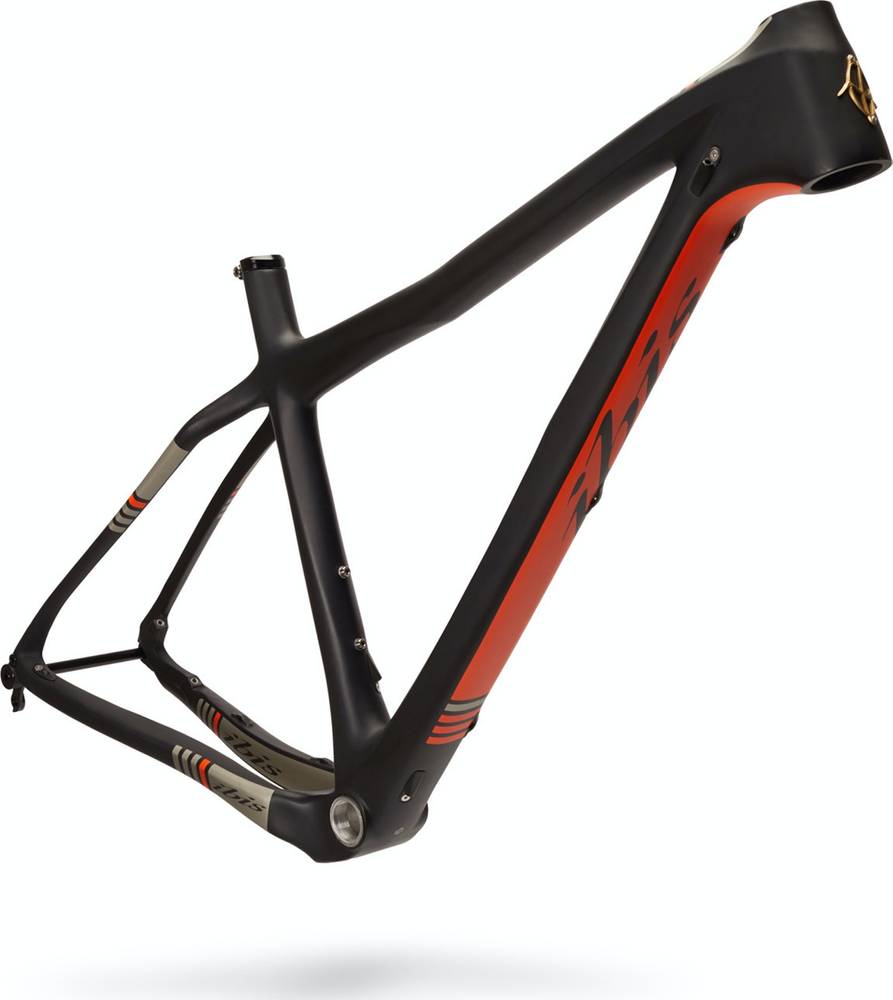

Ibis DV9 Frameset 2020
2020 Mountain
Estimate price |
999$
Weight | 1.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Drivetrain
Bottom Bracket
73mm English threaded
Brakes
Brakes
160mm Post mount / 203mm max rotor
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.5 mm | 1.46 mm | 1.4 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm |
| Stack | 613 mm | 630 mm | 636 mm | 651 mm |
| Reach | 399 mm | 420 mm | 437 mm | 464 mm |
| Top Tube Length | 584 mm | 609 mm | 630 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 92 mm | 110 mm | 116 mm | 133 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1102 mm | 1128 mm | 1149 mm | 1184 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 689 mm | 759 mm | 759 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
DV9 Frameset is an Ibis Dv9 model. Ibis released 24 frames variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry frames average price
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2020 and its price was 999$. If we compare this with the average Crosscountry frame cost we notice that the price is 69.07% smaller.
Average weight for Crosscountry frames
On a deeper look, we notice that the average weight of a Crosscountry frame is 2.04 kg (4.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 1.2 kg (2.65 lbs), Ibis frame is much lighter than average. In conclusion, the average Crosscountry frame weighs 70% more than DV9 Frameset.
Overview of components
Brakes
For your safety, it is important to have quality breaks on your bike. Ibis DV9 Frameset has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
DV9 Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
