Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float Rhythm 34, 120mm, Grip, 29”, 110x15
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 10-50 12 speed
Crank
SRAM Descendant Alloy 175, DUB spindle, 32t Alloy Ring (170mm for S/M, 175mm for L/XL)
Bottom Bracket
SRAM DUB BSA
Chain
SRAM GX Eagle
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs (Ibis 933 wheelset with Step Cast fork upgrade)
Tires
Schwalbe Hans Dampf/Nobby Nic Apex TL-Easy 29x2.6 (Schwalbe Racing Ray/Thunder Burt 29"x2.25” with Step Cast fork upgrade)
Brakes
Brakes
Shimano Deore M6100 2 Piston
Disk Rotors
Shimano SM-RT66 180/160
Cockpit
Stem
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40 ZS44/EC49
Seat
Saddle
WTB Silverado 142mm
Seatpost
Ibis 31.6 Aluminum, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.57 mm | 1.52 mm | 1.46 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 622 mm | 639 mm | 645 mm | 660 mm |
| Reach | 386 mm | 407 mm | 424 mm | 451 mm |
| Top Tube Length | 584 mm | 609 mm | 630 mm | 660 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 368 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 92 mm | 110 mm | 116 mm | 133 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1112 mm | 1138 mm | 1159 mm | 1194 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 699 mm | 769 mm | 769 mm | 794 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

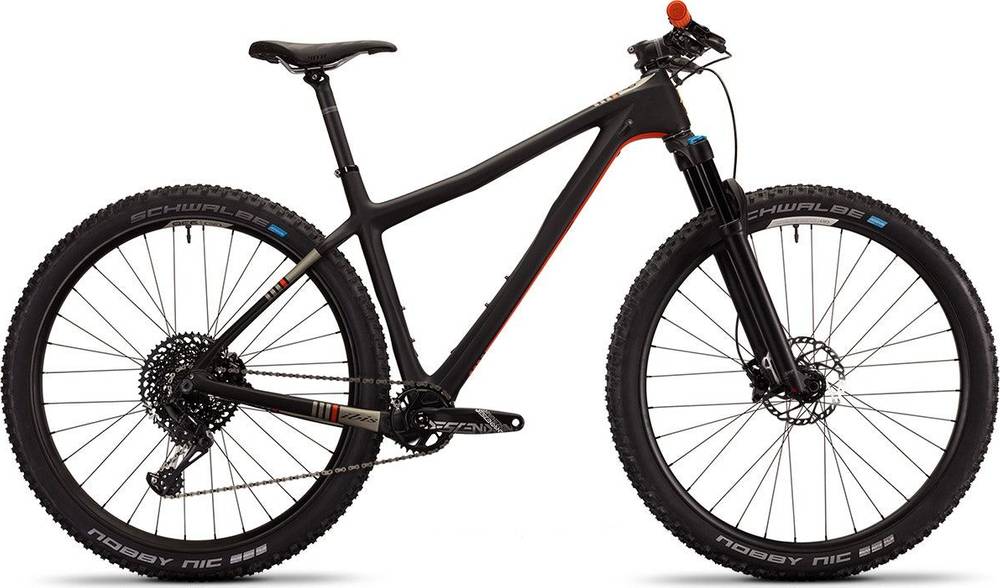

DV9 GX belongs to the Ibis Dv9 model. 24 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Ibis DV9 NX 2020 has a starting price of 2499$. Ibis DV9 XX1 AXS 2020 on the other hand is the most expensive at 6500$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 3099$. Comparing this to the average Trail bike price, we see that the price is 12.2% more expensive.
Overview of components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Ibis DV9 GX 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DV9 GX comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
