Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float Rhythm 34, 120mm, Grip, 29”, 110x15
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX 11 Speed
Front Derailleur
N/A
Shift Levers
SRAM NX 11 Speed
Cassette
SRAM PG 1130 11-42
Crank
SRAM NX, 24mm spindle, 30t Steel Ring (175)
Bottom Bracket
73mm English threaded
Chain
SRAM NX with Power Lock, 11 speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Ibis
Rear Hub
Ibis
Rims
938 Alloy, Ibis Hubs (Ibis 933 wheelset with Step Cast fork upgrade)
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 29 x 2.6 (Racing Ray/Thunder Burt 29"x2.25” with Step Cast fork upgrade)
Brakes
Brakes
SRAM Level
Brake Levers
SRAM Level
Disk Rotors
SRAM Centerline 180 / 160 rotors
Cockpit
Stem
Ibis 31.8mm (50, 60, 70, 80, 90mm)
Handlebar
Ibis 780mm Alloy
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40: ZS44/EC49
Seat
Saddle
WTB Silverado 142
Seatpost
Ibis 31.6 Aluminum, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.57 mm | 1.52 mm | 1.46 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 622.3 mm | 639.3 mm | 645.3 mm | 660.3 mm |
| Reach | 386.3 mm | 407.3 mm | 424.3 mm | 451.3 mm |
| Top Tube Length | 584.3 mm | 609.3 mm | 630.3 mm | 660.3 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 368.3 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 92 mm | 110 mm | 116 mm | 133 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1102 mm | 1138 mm | 1159 mm | 1194 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 699 mm | 769 mm | 769 mm | 794 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

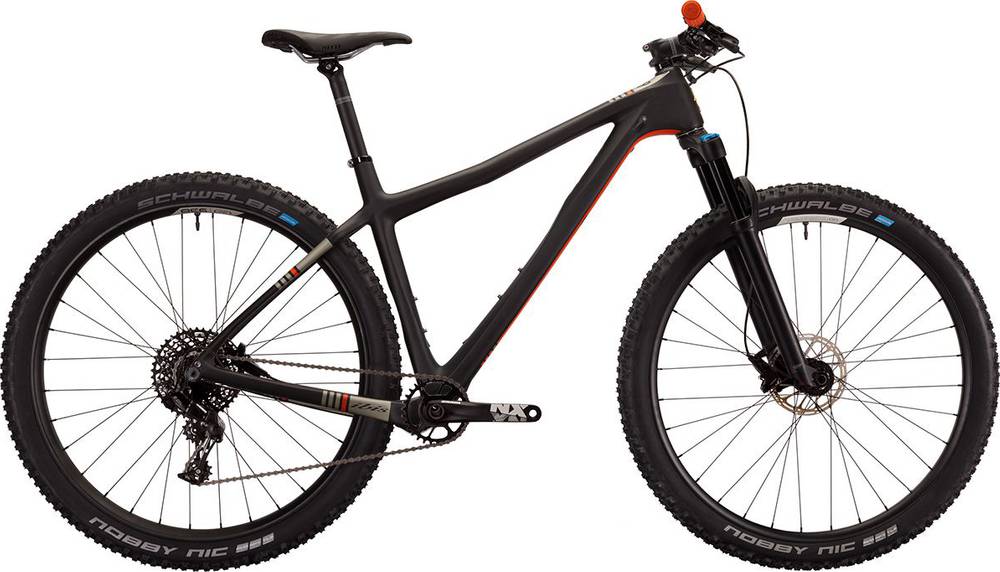

Model Overview
DV9 NX is part of the Ibis Dv9 model. 24 bikes variations carry this model name so far. Take a sneak peek at all Ibis Dv9 bikes models from 2019, by clicking here.
Model range prices
Ibis DV9 NX 2019 is the cheapest bike model and costs 2370$. Ibis DV9 XTR 2019 is the most expensive one and costs 7380$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 2370$. If we compare this with the average Trail bike cost we notice that the price is 16.54% lower.
Overview of components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the DV9 NX bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DV9 NX comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
