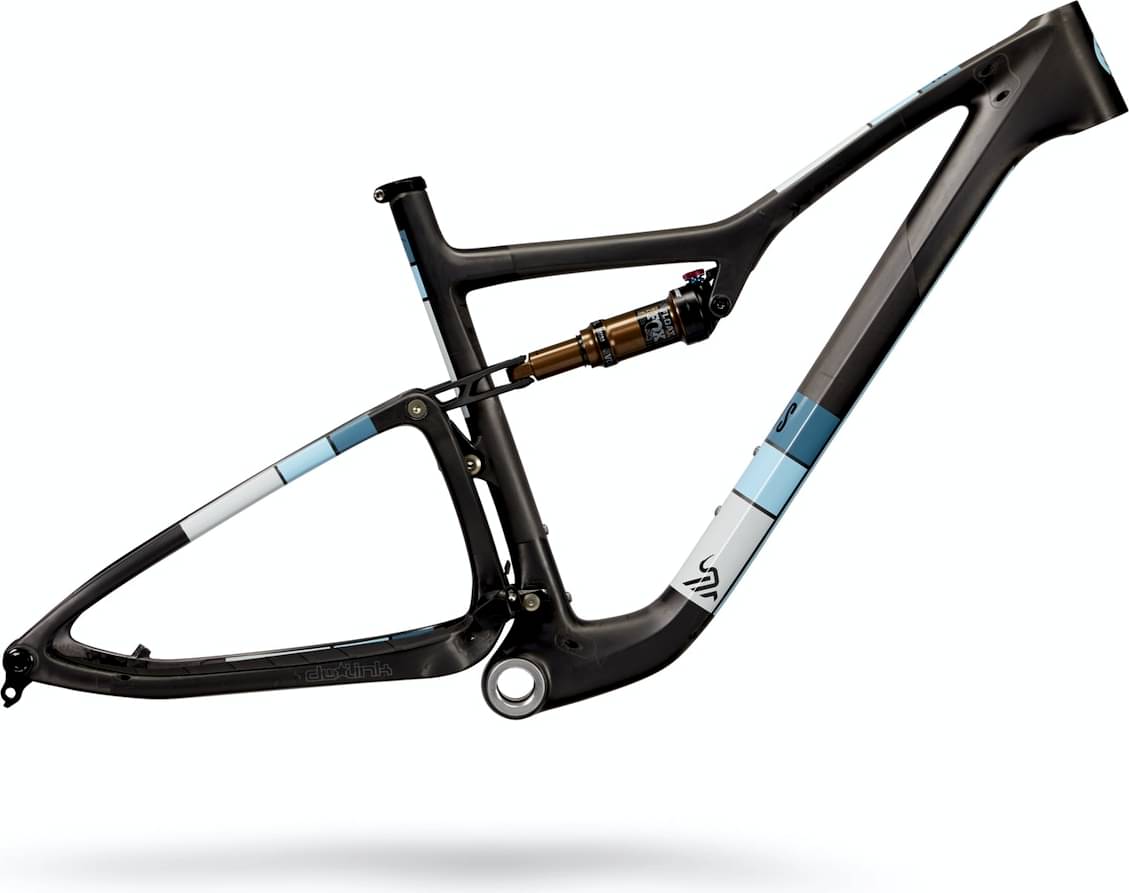

Ibis Exie USA Frameset 2023
2023 Mountain
Estimate price |
4,499$
Weight | 2.03 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 100mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Rear Shock
Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Brakes
Brakes
160mm post mount / 180mm max
Cockpit
Headset
IS 41/28.6 upper, IS 52/40 lower
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.26 mm | 1.21 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 694 mm | 724 mm | 768 mm | 819 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 589 mm | 599 mm | 613 mm | 637 mm |
| Reach | 420 mm | 446 mm | 485 mm | 526 mm |
| Top Tube Length | 591 mm | 620 mm | 651 mm | 682 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 74.8 ° | 75.9 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1135 mm | 1165 mm | 1209 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 729 mm | 734 mm | 755 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Exie USA Frameset is an Ibis Exie model. Ibis released 17 frames variations of this model so far. You can easily view all of the Ibis Exie frames models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry frames
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Ibis Exie USA Frameset price was 4499$. Comparing the average cost of a Crosscountry frame to this one, you will see that Exie USA Frameset price is 166.37% more expensive.
Crosscountry frames average weight
Crosscountry frames weigh an average of 1.98 kg (4.37 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 2.03 kg (4.48 lbs), the Exie USA Frameset model is slightly heavier than average. In short, the average Crosscountry frame weight is 2.53% lower than this one.
Overview of components
Rear Shock
The shock that’s installed on this frame is Fox Float DPS Remote w/ adjust, with a travel distance of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Exie USA Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
